T-10 (1600110) - Homelite Garden Tractor, 10hp Electric PTO Group - Front (3858I04) Parts Diagram

Garden Tractor, 10hp

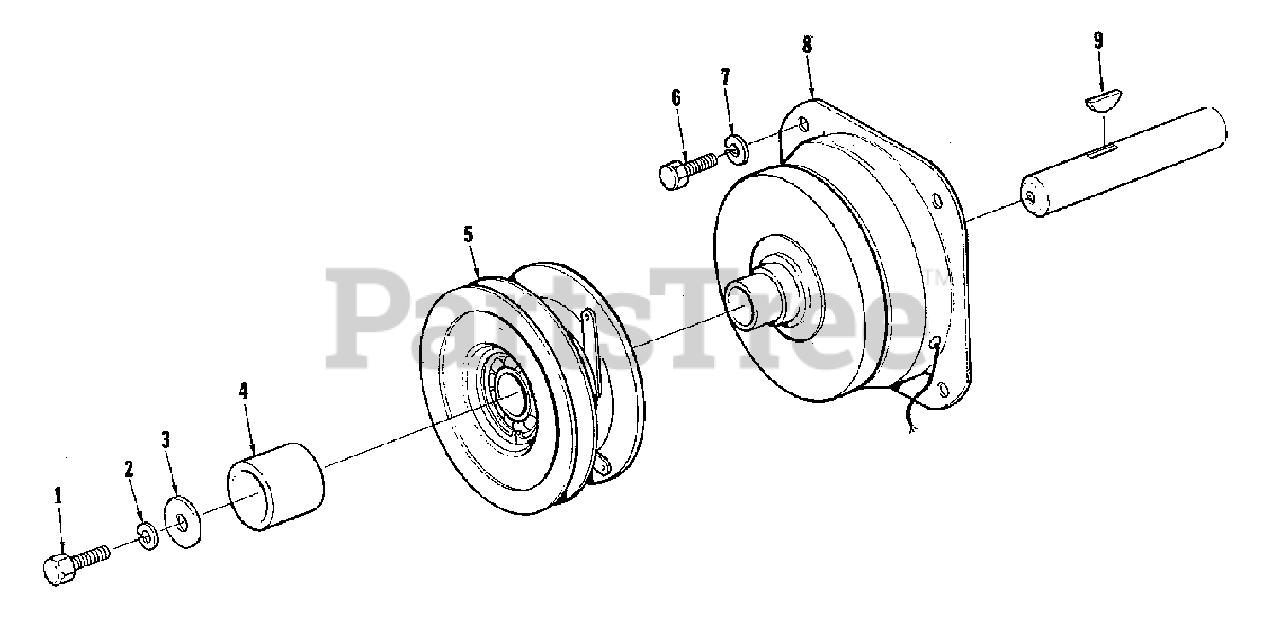

Electric PTO Group - Front (3858I04) Parts Diagram

  • Title
1

Simplicity LM-09174-07

SCREW, Hex Head Cap, 3/8-24 x 1-1/8

$

$

Not available

2

Simplicity LM-09169-65

WASHER, Lock, 3/8

$

$

Not available

3

Simplicity LM-09221-92

WASHER, Flat

$

$

Not available

$

$

Not available

5

Simplicity LM-16068-99

COIL ASSEMBLY, PTO Clutch

$

$

Not available

6

Simplicity LM-09287-11

SCREW, Hex Head Cap, 7/16-14 x 5/8

$

$

Not available

7

Simplicity LM-09181-99

WASHER, Lock, 7/16

$

$

Not available

8

Simplicity LM-16069-00

HUB ASSEMBLY, PTO Clutch

$

$

Not available

9

Simplicity LM-09287-12

KEY, Plain Parallel

$

$

Not available
