SZT 550 CE (5901403) - Simplicity Contender 132cm Zero-Turn Mower, 8270 series Briggs & Stratton Electrical Group - Export Models (5304050) Parts Diagram

Contender 132cm Zero-Turn Mower, 8270 series Briggs & Stratton

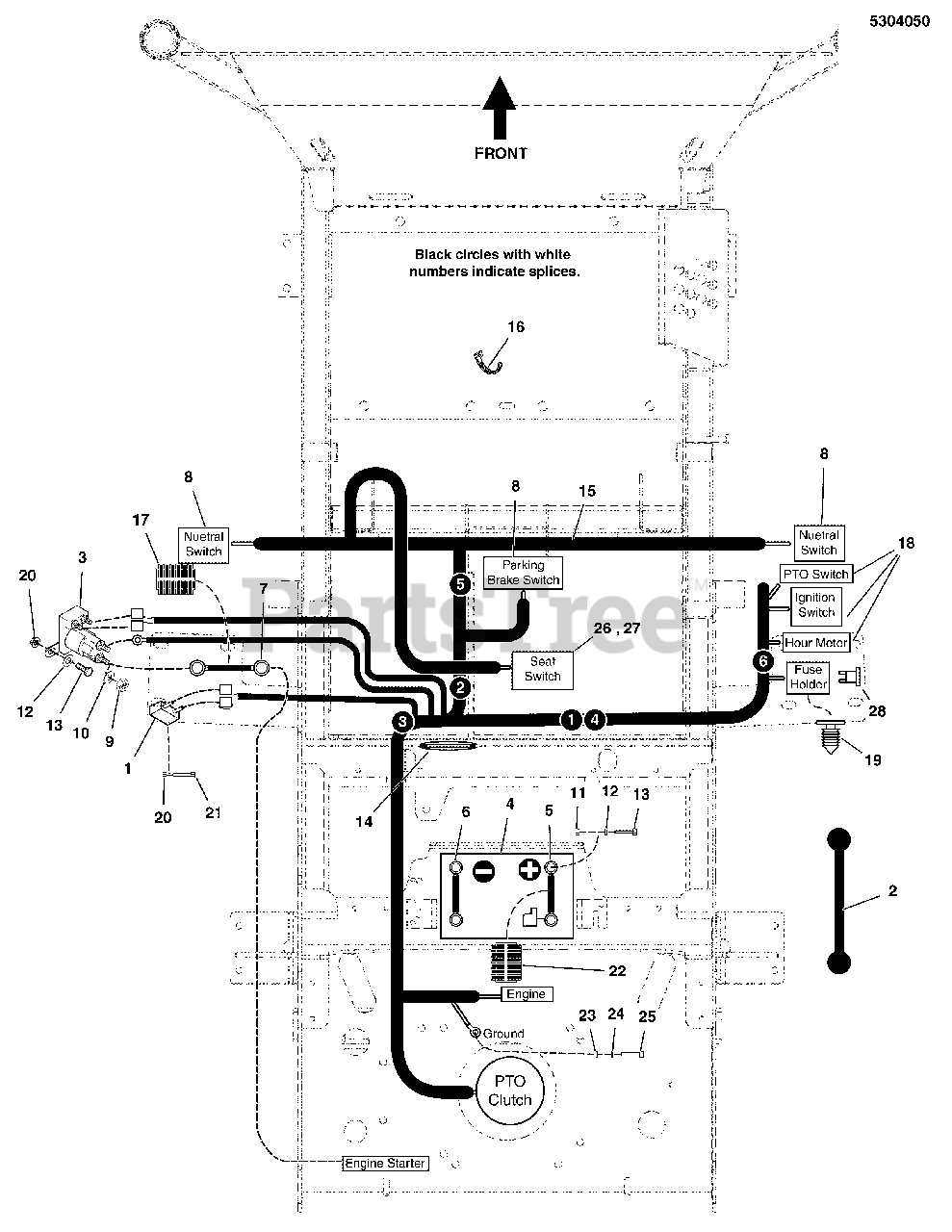

Electrical Group - Export Models (5304050) Parts Diagram

  • Title

1

Simplicity 1665238SM

BREAKER-CIRCUIT 12VOLT 20AMPS W/TAB

$14.99

$

In Stock, Qty 20+

0

2

Simplicity 1722009SM

STRAP-BLACK RUBB

$10.99

$

In Stock, only 1 left!

0

3

Simplicity 1724815SM

SOLENOID-4 POLE 12 VOLT DC (TROMBETTA)
(Superseded to 1686981YP)

$28.99

$

In Stock, Qty 20+

0

4

BATTERY, WET ( BCIU1, 350 CCA)

$

$

Not available

5

Simplicity 5047136SM

BATTERY CABLE, POS, 15, 1/4-5/16

$22.99

$

In Stock, only 1 left!

0

6

Simplicity 5044014SM

BATTERY CABLE, NEGATIVE, 10"

Note: (Models w/ Briggs & Stratton Engines)

$14.99

$

Usually ships in 2-12 days

0

7

Simplicity 5023488SM

BATTERY CABLE, POS, 22, 1/4-5/16

$27.99

$

Usually ships in 2-12 days

0

8

Simplicity 7022886YP

SWITCH, PLUNGER, NO/NC SNAP-IN

$14.99

$

In Stock, Qty 20+

0

9

Simplicity 5023216SM

NUT, 5/16-24 JAM

$2.99

$

Usually ships in 2-12 days

0

10

Simplicity 5023217SM

WASHER, 5/16 LIGHT LOCK

$3.49

$

Usually ships in 2-12 days

0

11

Simplicity 5025126SM

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 703233)

$4.49

$

In Stock, Qty 9

0

12

Simplicity 5025154SM

WASHER, 1/4 SAE
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

13

Simplicity 5025010X6SM

BOLT, 1/4-20 X 3/4 GD5 YZ

$3.99

$

In Stock, Qty 20+

0

14

Simplicity 5102677YP

GROMMET, 1-1/2" ID FOR 1/4" METAL

$7.49

$

Usually ships in 2-12 days

0

15

Simplicity 5410289YP

WIRE HARNESS, C TURF, WARNER

Note: (Models w/ Briggs & Stratton Engines)

$433.99

$

Usually ships in 2-12 days

0

16

Simplicity 5021029SM

TIE, SELF-LOCKING, 12"

$

$

Not available

17

Simplicity 5050927X18YP

WIRE LOOM, 3/8 ID X 18 IN

$7.49

$

Usually ships in 2-12 days

0

18

SEE INSTRUMENT CONTROL PANEL GROUP

$

$

Not available

19

Simplicity 5103761YP

FIR TREE MOUNT, PACKARD

$5.99

$

Usually ships in 2-12 days

0

20

Simplicity 5025391SM

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 703463)

$4.49

$

In Stock, Qty 20+

0

21

Simplicity 5025299X6SM

SCREW,1/4-20X3/4, ZINC PHOS & OIL

$3.49

$

Usually ships in 2-12 days

0

22

Simplicity 5050927X12YP

WIRE LOOM, 3/8 ID X 12"

$

$

Not available

23

Simplicity 5025188SM

WASHER, 5/16 INT. TOOTH LOCK

$3.99

$

In Stock, only 1 left!

0

24

Simplicity 5025155SM

WASHER, 5/16 SAE
(Superseded to 703350)

$4.49

$

In Stock, only 2 left!

0

25

Simplicity 5025249YP

BOLT, M8-1.25 X 20MM GD8.8

$2.99

$

Usually ships in 2-12 days

0

26

Simplicity 5100540YP

SEAT SWITCH, MILSCO, BOLT-IN (SV)

Note: (SV)

$32.99

$

In Stock, only 1 left!

0

27

Simplicity 5100541YP

SEAT, SWITCH, MILSCO, TWIST-IN (SV)

Note: (SV)

$20.99

$

In Stock, only 1 left!

0

28

Simplicity 5101935YP

FUSE, ATO 15 AMP (SV)

Note: (SV)

$4.49

$

Usually ships in 2-12 days

0
