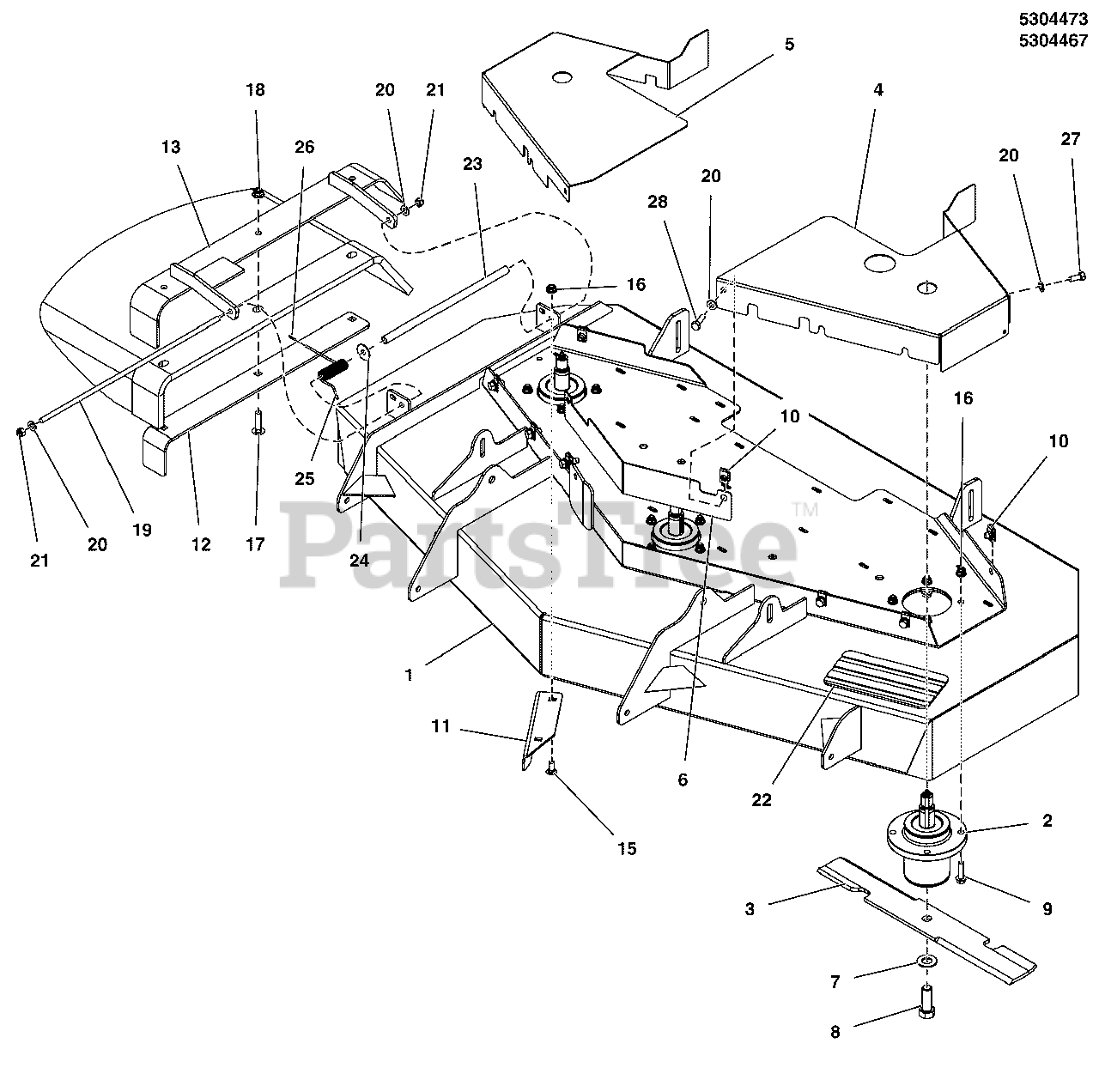

SZT 550 CE (5901403) - Simplicity Contender 132cm Zero-Turn Mower, 8270 series Briggs & Stratton 52" Mower Deck Group - Housing, Covers, Spindles & Blades Export Models (5304473_5304467) Parts Diagram

Contender 132cm Zero-Turn Mower, 8270 series Briggs & Stratton

52" Mower Deck Group - Housing, Covers, Spindles & Blades Export Models (5304473_5304467) Parts Diagram

  • Title

1

Simplicity 5600946YP

DECK SHELL W/DECALS,52,550CE,5412827C

$1985.99

$

Usually ships in 2-12 days

0

2

Simplicity 5061095SM

SPINDLE, ASSM, ALUMINUM - 5.25

$222.99

$

In Stock, only 1 left!

0

3

Simplicity 1756152SYP

BLADE, 18", SET OF THREE (3)

$

$

Not available

4

Simplicity 5414995CYP

PLATE, DECK GUARD, 52, LH - ORG

$87.99

$

Usually ships in 2-12 days

0

5

Simplicity 5414996CYP

PLATE, DECK GUARD, 52, RH - ORG

$87.99

$

Usually ships in 2-12 days

0

6

Simplicity 5414997CYP

PLATE, DECK GUARD, 52, MD - ORG

$26.99

$

Usually ships in 2-12 days

0

7

Simplicity 5025477SM

WASHER, BLADE BOLT, 9/16" F436, CZ

$3.99

$

In Stock, Qty 11

0

8

Simplicity 5025320X14SM

BOLT, 5/8-11 X 1-3/4 GD8
(Superseded to 770136)

$4.49

$

In Stock, Qty 16

0

9

Simplicity 5023156SM

BOLT, 5/16-18 X 1 1/4 FLANGE

$3.99

$

In Stock, only 1 left!

0

10

Simplicity 5022308SM

BODY CLIP, 5/16-18-7GA MATERIAL

$5.99

$

In Stock, only 2 left!

0

11

Simplicity 540557YP

PLATE

$

$

Not available

12

Simplicity 5413398AYP

SUPPORT, DISCHARGE CHUTE - BLK

$32.99

$

Usually ships in 2-12 days

0

13

Simplicity 5415030AYP

WELD, MOUNT, DISCHARGE CHUTE - BLK

$68.99

$

Usually ships in 2-12 days

0

14

Simplicity 5413500YP

CHUTE, RUBBER DISCHARGE

$231.99

$

Usually ships in 2-12 days

0

15

Simplicity 5025145X6SM

BOLT, 5/16-18 X 3/4, CARRIAGE

$3.99

$

In Stock, Qty 5

0

16

Simplicity 5025392SM

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 703115)

$3.49

$

In Stock, Qty 20+

0

17

Simplicity 5025146X12YP

BOLT, 3/8-16 X 1-1/2, CARRIAGE, GD5, CZ

$3.99

$

Usually ships in 2-12 days

0

18

Simplicity 5025394SM

NUT, 3/8-16 HEX NYLOCK FLANGE

$4.49

$

In Stock, Qty 20+

0

19

Simplicity 5061300SM

ROD, MOUNT, CHUTE 61, CZ

$13.99

$

In Stock, only 1 left!

0

20

Simplicity 5025155SM

WASHER, 5/16 SAE
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

21

Simplicity 5025045SM

NUT, 5/16-24 HEX NYLON LOCK

$3.49

$

In Stock, Qty 11

0

22

Simplicity 5101004SM

SAFETY WALK, 4.00 X 7.50

$9.49

$

Usually ships in 2-12 days

0

23

Simplicity 5050086X11P38YP

TUBE, 1/2 X 3/8 BLACK POLY, 11.38 LG

$6.49

$

Usually ships in 2-12 days

0

24

Simplicity 5025164SM

WASHER, 5/16 FENDER

$3.99

$

In Stock, only 1 left!

0

25

Simplicity 5023385SM

SPRING, TORSION

$8.49

$

Usually ships in 2-12 days

0

26

Simplicity 5023489SM

CAP, PROTECTOR, .120 ID

$3.99

$

Usually ships in 2-12 days

0

27

Simplicity 5025011X6SM

BOLT, 5/16-18 X 3/4 GD5 CZ

$3.99

$

In Stock, Qty 20+

0

28

Simplicity 5025011X8SM

BOLT, 5/16-18 X 1 GD5 CZ
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0
