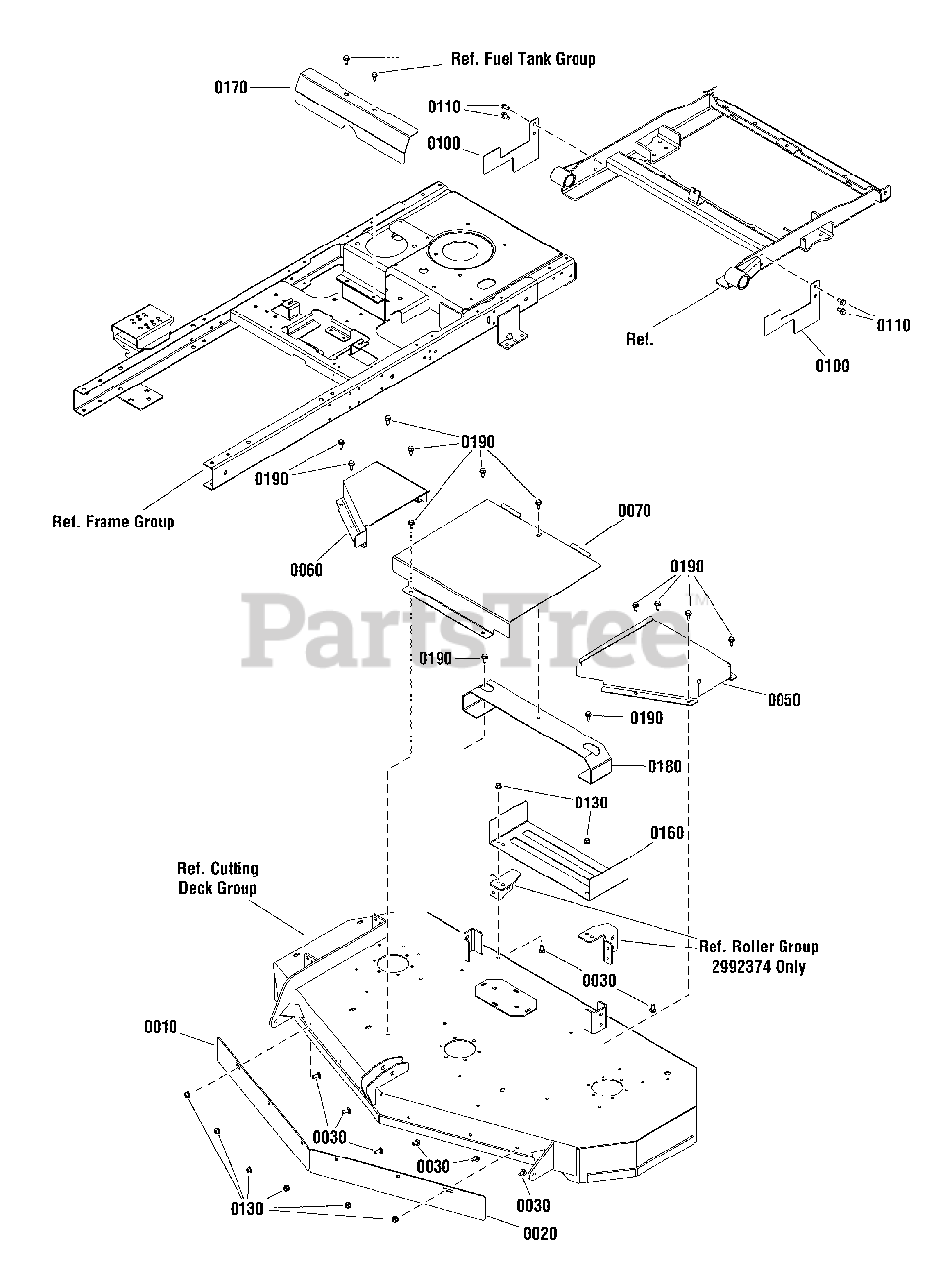

SZT 350 (2691696-01) - Simplicity Courier 132cm Zero-Turn Mower, 8270 series Briggs & Stratton 52" HOZ Guarding Group Parts Diagram

Courier 132cm Zero-Turn Mower, 8270 series Briggs & Stratton

52" HOZ Guarding Group Parts Diagram

  • Title

0010

Simplicity 705981

BAFFLE, Blowout, RH, 52" Fab Deck, Blk

$31.99

$

Usually ships in 2-12 days

0

0020

Simplicity 705980

BAFFLE, Blowout, LH, 52" Fab Deck, Blk

$31.99

$

Usually ships in 2-12 days

0

0030

Simplicity 703185

BOLT, 5/16-18X3/4 GR5, Carriage, YZ

$3.49

$

In Stock, Qty 12

0

0050

Simplicity 1760708AYP

COVER, LH Arbor, 52" Fab, CE, Black

$88.99

$

Usually ships in 2-12 days

0

0060

Simplicity 1760709AYP

COVER, RH Arbor, 52" Fab, CE, Black

$74.99

$

Usually ships in 2-12 days

0

0070

Simplicity 1760710AYP

COVER, Top, 52" Fab, CE, Black

$136.99

$

Usually ships in 2-12 days

0

0100

Simplicity 1760087AYP

COVER, Side, 48 Fab, Susp, CE-Black

$12.99

$

Usually ships in 2-12 days

0

0110

Simplicity 703949

SCREW, 5/16-18 X .625, Hex Washer Head, Thread Roll, Zinc/Clear

$3.99

$

In Stock, only 3 left!

0

0130

Simplicity 703115

NUT, 5/16-18, Flange Nylock, GR F, Zinc/Clear

$3.49

$

In Stock, Qty 20+

0

0160

Simplicity 1760915AYP

COVER, Rear Deckbelt, 52" Fab, CE, Black

$77.99

$

Usually ships in 2-12 days

0

0170

Simplicity 1760154AYP

COVER, Bystander Pulley, Black

$45.99

$

Usually ships in 2-12 days

0

0180

Simplicity 1760798AYP

SUPPORT, 52" Fab, CE, Black

$83.99

$

Usually ships in 2-12 days

0

0190

Simplicity 703228

SCREW, 5/16-18 X .750, Washer Head Taptite

$4.49

$

In Stock, Qty 20+

0
