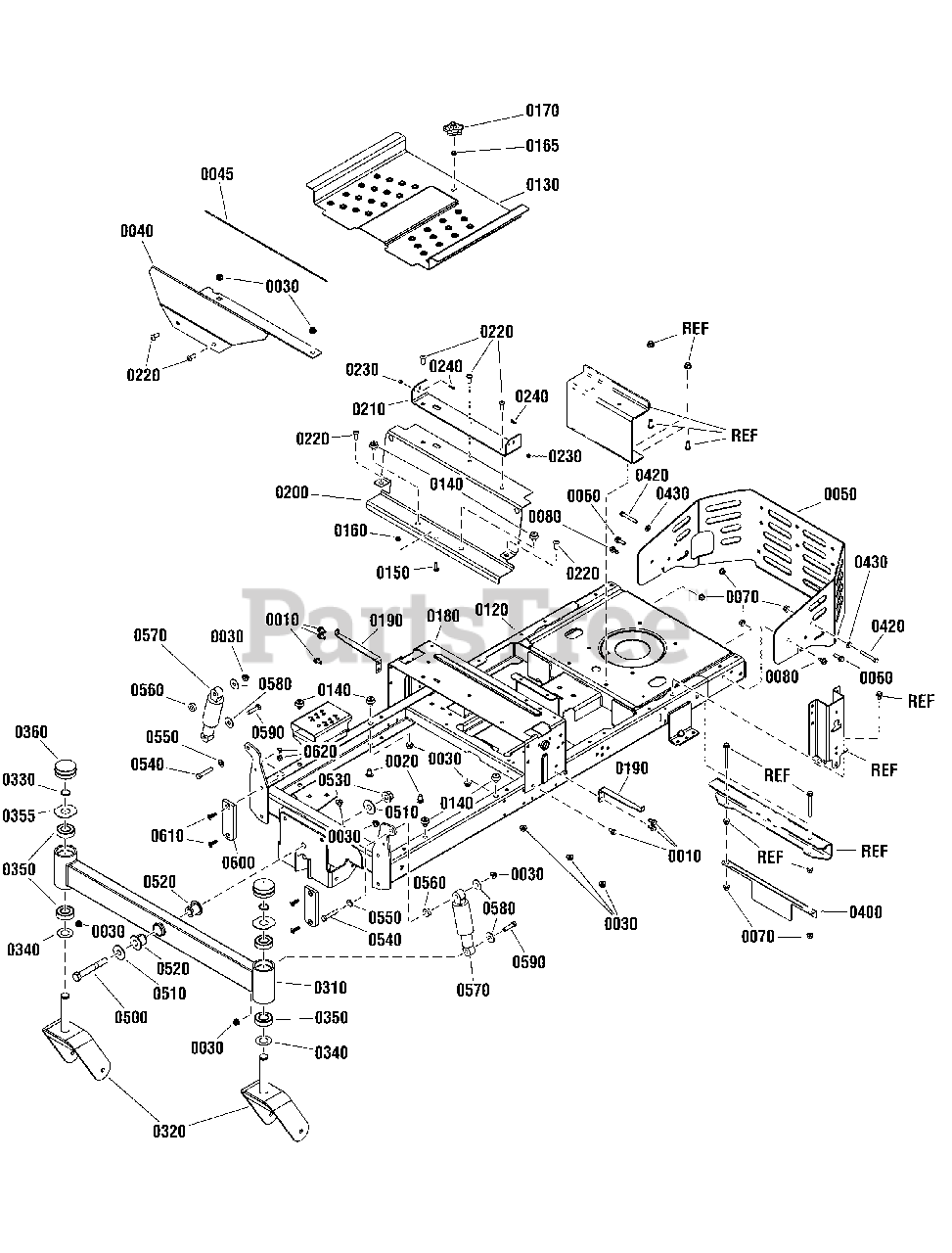

SZT 350 (2691411-00) - Simplicity Courier 52"/132cm Zero-Turn Mower, 724cc Briggs & Stratton Frame Suspension, EU Parts Diagram

Courier 52"/132cm Zero-Turn Mower, 724cc Briggs & Stratton

Frame Suspension, EU Parts Diagram

  • Title

0010

Simplicity 703949

SCREW, 5/16-18 X .625, Hex Washer Head, Thread Roll, Zinc/Clear

$3.99

$

In Stock, only 3 left!

0

0020

Simplicity 703448

BOLT, 3/8-16 X .750, Short Neck Carriage, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0

0030

Simplicity 5025394SM

NUT, 3/8-16, Hex Flange Nylock

$4.49

$

In Stock, Qty 20+

0

0040

Simplicity 1759278CYP

FOOTREST, Pivoting Axle (Orange)

$128.99

$

Usually ships in 2-12 days

0

0045

Simplicity 5101374YP

SAFETY WALK, Floor Rest, 6.00 X 16.00

$18.99

$

In Stock, only 1 left!

0

0050

Simplicity 1759970CYP

BUMPER, Rear (Orange)

$307.99

$

Usually ships in 2-12 days

0

0060

Simplicity 703410

BOLT, 5/16-18 X 1.0, Serrated Flange, GR5, Zinc/Clear

$4.49

$

In Stock, only 2 left!

0

0070

Simplicity 703115

NUT, 5/16-18, Flange Nylock, GR F, Zinc/Clear

$3.49

$

In Stock, Qty 20+

0

0080

Simplicity 703228

SCREW, 5/16-18 X .750, Washer Head Taptite

$4.49

$

In Stock, Qty 20+

0

0120

WELDMENT, ZT Frame - Full Suspension - Orange

Note: (Not A Part Sale Item)

$

$

Not available

0130

Simplicity 1757813CYP

PAN, Bottom Foot (Orange)

$164.99

$

Usually ships in 2-12 days

0

0140

Simplicity 197546GS

MOUNT, Rubber Vibration for .5" Hole

$7.99

$

In Stock, only 2 left!

0

0150

Simplicity 7090496YP

BOLT, Carriage 1/4C X1 GR5 ZP

$3.49

$

Usually ships in 2-12 days

0

0160

Simplicity 703233

NUT, 1/4-20 Hex Flange Lock, GR 5, Zinc/Clear

$4.49

$

In Stock, Qty 5

0

0165

Simplicity 15X143MA

NUT, 1/4-20, Hex Flange Center Lock, ZC/CL

$4.99

$

In Stock, Qty 13

0

0170

Simplicity 707785

KNOB, Handle, 5 Prong, 1/4-20

$5.99

$

Usually ships in 2-12 days

0

0180

Simplicity 1758010CYP

BRACKET, Control (Orange)

$112.99

$

Usually ships in 2-12 days

0

0190

Simplicity 1758240AYP

BRACKET, Fender Support (Black)

$9.49

$

Usually ships in 2-12 days

0

0200

Simplicity 1757796CYP

BRACKET, Brand Plate (Orange)

$108.99

$

Usually ships in 2-12 days

0

0210

Simplicity 1758835CYP

BRACKET, Seat Pivot (Orange)

$28.99

$

Usually ships in 2-12 days

0

0220

Simplicity 707790

SCREW, 3/8-16 X .88 Button HD Hex Socket
(Superseded to 84004627)

$4.49

$

Usually ships in 2-12 days

0

0230

Simplicity 5025339YP

NUT, #8-32 Nylock

$2.99

$

Usually ships in 2-12 days

0

0240

Simplicity 770013

SCREW, 8-32 X .50 LG, Hex Head Cap

$3.49

$

Usually ships in 2-12 days

0

0310

Simplicity 1758686CYP

WELDMENT, Front Axle - Pivoting (Orange)

$290.99

$

Usually ships in 2-12 days

0

0320

Simplicity 1759815CYP

WELDMENT, Caster Yoke (Pivoting Axle)(Orange)

$99.99

$

Usually ships in 2-12 days

0

0330

Simplicity 703993

RETAINING RING, 1" External

$3.49

$

In Stock, Qty 11

0

0340

Simplicity 703199

WASHER, 1.017 ID X 1.812 OD X .6 Thk, Flat, ZC/CL

$4.99

$

In Stock, only 2 left!

0

0350

Simplicity 1758354YP

BEARING, Ball, 25MM ID, 52MM OD, 15MM Thick

$10.99

$

In Stock, only 2 left!

0

0355

Simplicity 1722726SM

WASHER, Hub Cap, 1 X 2.5

$5.49

$

In Stock, only 1 left!

0

0360

Simplicity 1725651SM

COVER, Spindle (Black Poly)

$4.49

$

In Stock, Qty 20+

0

0400

Simplicity 1760067CYP

GUARD, Transmission, Suspension (Orange)

$35.99

$

Usually ships in 2-12 days

0

0420

Simplicity 5025055X18YP

BOLT, 5/16-18 X 2-1/4, GD 5, TFL, ZN

$3.99

$

In Stock, only 1 left!

0

0430

Simplicity 703302

WASHER, 5/16 SAE

$4.49

$

In Stock, Qty 20+

0

0500

Simplicity 707789

BOLT, 5/8-11 x 4.50, GD 5, Hex HD

$5.49

$

Usually ships in 2-12 days

0

0510

Simplicity 1960035SM

WASHER, 5/8 (.64 ID X 1.75 OD X .11 Thick) Flat, Black

$4.49

$

In Stock, only 2 left!

0

0520

Simplicity 1759234YP

BUSHING, 1.235 OD, .641 ID, 1.29 LG, 1.75 Flange, PM

$9.49

$

Usually ships in 2-12 days

0

0530

Simplicity 770698

NUT, 5/8-11, Hex Flange Two Way Lock, Yellow

$

$

Currently unavailable

0540

Simplicity 703589

SCREW, 3/8-16 x 2, Hex Head Cap, GR5, Zinc/Clear

$4.49

$

In Stock, only 1 left!

0

0550

Simplicity 703590

WASHER, 3/8 (.406 X .816 X .65), Flat, Zinc/Clear

$3.99

$

In Stock, Qty 17

0

0560

Simplicity 1667811SM

SPACER, .390 ID, .90 OD, .34 LG, PM, YEL

$3.49

$

In Stock, Qty 20+

0

0570

Simplicity 1755279YP

SHOCK ABSORBER, 8" Length

$69.99

$

Usually ships in 2-12 days

0

0580

Simplicity 5025165SM

WASHER, 3/8 (.41 ID, 1.25 OD, .06 Thk) Fender

$3.99

$

In Stock, only 2 left!

0

0590

Simplicity 703406

SCREW, 3/8-16 X 1.50, Hex HD Cap, GR5, Zinc/Clear

$4.99

$

In Stock, only 1 left!

0

0600

Simplicity 1759391YP

PAD, Friction, 1.75 X 5.03

$13.99

$

Usually ships in 2-12 days

0

0610

Simplicity 5025594YP

SCREW, 5/16-18X1, Phillips HD, BZ

$3.99

$

Usually ships in 2-12 days

0

0620

Simplicity 703902

NUT, 5/16-18, Hex Nylock, Zinc/Clear

$3.99

$

In Stock, Qty 20+

0
