SZT 350 (2691411-00) - Simplicity Courier 52"/132cm Zero-Turn Mower, 724cc Briggs & Stratton 52" Mower Deck - Housing, Arbors & Blade Group, ZT - EU Parts Diagram

Courier 52"/132cm Zero-Turn Mower, 724cc Briggs & Stratton

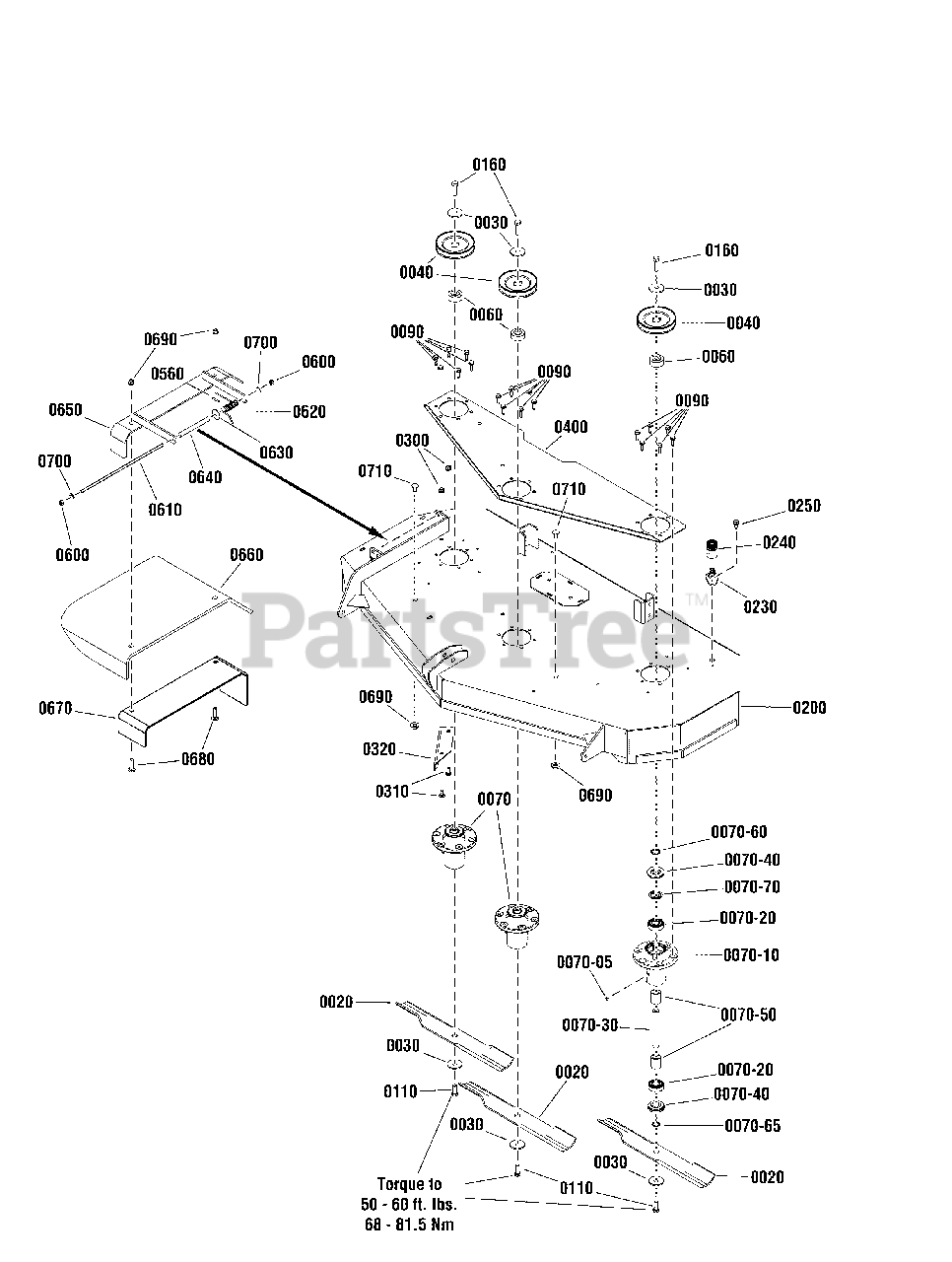

52" Mower Deck - Housing, Arbors & Blade Group, ZT - EU Parts Diagram

  • Title

0020

Simplicity 1756152AYP

BLADE, 18", .63 Hole, .98 Lift (for 52" ZT)

$27.99

$

In Stock, Qty 20+

0

0030

Simplicity 1656916SM

WASHER, Spring, .475 ID x 1.75 OD x .156 Thick, Black

$7.49

$

In Stock, Qty 20+

0

0040

Simplicity 1732951SM

PULLEY, 4.60" OD, 1.0" ID, .87" WD, BLK

$19.99

$

In Stock, Qty 20+

0

0060

Simplicity 706362

SPACER, HUB, .75 HI, .457 ID

$9.99

$

Usually ships in 2-12 days

0

0070

Simplicity 1759614

SPINDLE ASSY - 52" FAB (ALUM.)

$

$

Not available

0070-05

Simplicity 1704314SM

LUBE, Fitting, .250 Drive, .25 SH, Check Ball, Yel
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0070-10

Snapper 1760371

HOUSING, SPINDLE - CAST ALUM W/ ZERK

$

$

Currently unavailable

0070-20

Simplicity 1735399YP

BEARING, Ball 20MM

$9.99

$

In Stock, Qty 20+

0

0070-30

Simplicity 1759497YP

SHAFT, Spindle (134.6mm / 5.299" LG)

$

$

Not available

0070-40

Simplicity 1735323YP

SHIELD, Arbor, 2-1/16 OD
(Superseded to 84003166)

$6.99

$

In Stock, only 2 left!

0

0070-50

Simplicity 1735328YP

SPACER, Bearing, .812 ID, 1.25 OD, .442 Tall, PM

$6.49

$

In Stock, only 3 left!

0

0070-60

Simplicity 1960766YP

RING, Self Locking (For 20MM Shaft)

$4.49

$

In Stock, Qty 20+

0

0070-65

Simplicity 708167

RING, Self-Locking, 15MM Shaft

$4.49

$

In Stock, only 2 left!

0

0070-70

Simplicity 7106224YP

BEARING, Seal
(Superseded to 7106224YP)

$16.99

$

Usually ships in 2-12 days

0

0090

Simplicity 704146

SCREW, 5/16-18 X 1.0, Hex Washer Head Self-Tap, ZC/CL

$3.99

$

In Stock, Qty 20+

0

0110

Simplicity 1920676SM

SCREW, 7/16-14 x 1 Hex Head Cap, GR 5, ZC/CL

$5.49

$

In Stock, Qty 12

0

0160

Simplicity 1921212SM

SCREW, 7/16-14X1.50, Hex Head, G5 Blk

$

$

Not available

0200

Simplicity 1687924YP

WELDMENT, Mower - 52" Fab ZT, EU, Orange

$1994.99

$

Usually ships in 2-12 days

0

0230

Simplicity 1756247YP

ADAPTOR, Washout Port

$6.49

$

In Stock, only 1 left!

0

0240

Simplicity 1756246YP

CONNECTOR, Washout Port 46/52" Black Poly

$15.99

$

In Stock, only 1 left!

0

0250

Simplicity 703228

SCREW, 5/16-18 X .750, Washer Head Taptite

$4.49

$

In Stock, Qty 20+

0

0300

Simplicity 703115

NUT, 5/16-18, Flange Nylock, GR F, Zinc/Clear

$3.49

$

In Stock, Qty 20+

0

0310

Simplicity 703185

BOLT, 5/16-18X3/4 GR5, Carriage, YZ

$3.49

$

In Stock, Qty 12

0

0320

Simplicity 5405557AYP

PLATE, Deflector, 52" Deck - Blk
(Superseded to 5405557YP)

$21.99

$

In Stock, only 1 left!

0

0400

Simplicity 1760973AYP

PLATE, Deck Top, 52" ZT - Black

$122.99

$

Usually ships in 2-12 days

0

0560

Simplicity 5023489SM

CAP, Protector, .120 ID

$3.99

$

Usually ships in 2-12 days

0

0600

Simplicity 5025045SM

NUT, 5/16-24 Hex Nylon Lock

$3.49

$

In Stock, Qty 11

0

0610

Simplicity 5042555SM

ROD, 5/16 X 13.75, TBE, CZ

$10.99

$

Usually ships in 2-12 days

0

0620

Simplicity 5023385SM

SPRING, Torsion

$8.49

$

Usually ships in 2-12 days

0

0630

Simplicity 5025164SM

WASHER, 5/16" Fender

$3.99

$

In Stock, only 1 left!

0

0640

Simplicity 5050086X8SM

TUBE, 1/2 X 3/8 - 8.0" LG, Black Plastic

$8.99

$

Usually ships in 2-12 days

0

0650

Simplicity 1760936AYP

WELDMENT, Discharge Chute, CE - Black

$133.99

$

Usually ships in 2-12 days

0

0660

Simplicity 5413498YP

CHUTE-DISCHARGE, Rubber, 25.00"

$176.99

$

Usually ships in 2-12 days

0

0670

Simplicity 1760930AYP

SUPPORT, Discharge Chute, CE - Black

$98.99

$

Usually ships in 2-12 days

0

0680

Simplicity 703406

BOLT, 3/8-16 X 1-1/2, Carriage, GD5, CZ

$4.99

$

In Stock, only 1 left!

0

0690

Simplicity 5025394SM

NUT, 3/8-16, Hex Flange Nylock

$4.49

$

In Stock, Qty 20+

0

0700

Simplicity 703302

WASHER, 5/16 SAE

$4.49

$

In Stock, Qty 20+

0

0710

Simplicity 703448

BOLT, 3/8-16 X .750, Short Neck Carriage, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0
