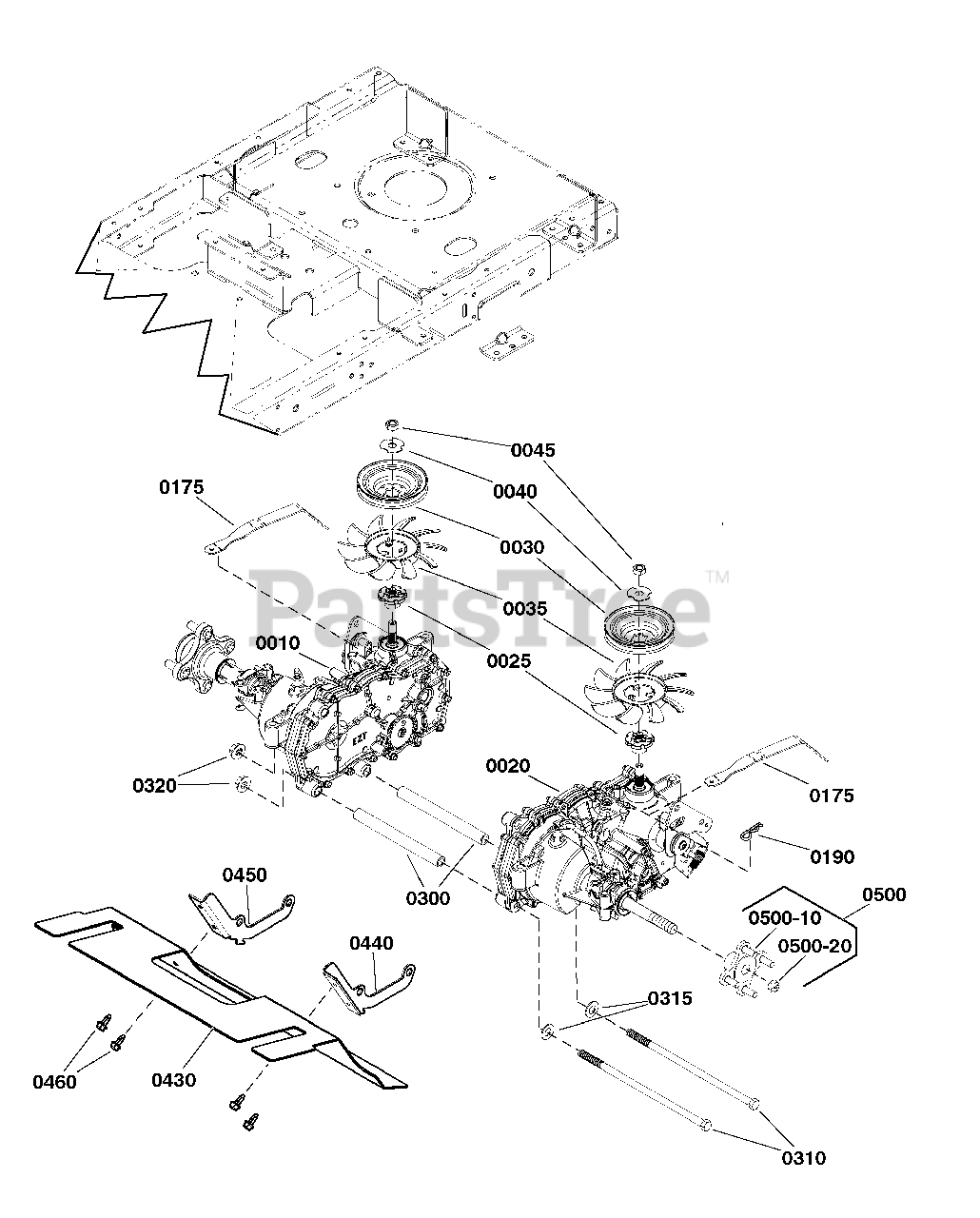

SZT 275 (2691695-01) - Simplicity Courier 122cm Zero-Turn Mower, 8270 series Briggs & Stratton Transmission Group Parts Diagram

Courier 122cm Zero-Turn Mower, 8270 series Briggs & Stratton

Transmission Group Parts Diagram

  • Title

0010

Simplicity 1759443YP

TRANSMISSION, Hydro Gear, RH
(Superseded to 84007995)

Note: (Refer to Note: *) (Model No: ZD-DUBB-2A7C-2XPX)

$1060.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1759444YP

TRANSMISSION, Hydro Gear, LH
(Superseded to 84008002)

Note: (Refer to Note: *) (Model No: ZD-AUBB-2A7B-3XPX)

$1060.99

$

Usually ships in 2-12 days

0

0025

Simplicity 1759450YP

SPACER, Transmission

$12.99

$

Usually ships in 2-12 days

0

0030

Simplicity 1759447YP

PULLEY, Transmission

$26.99

$

In Stock, only 3 left!

0

0035

Simplicity 1759449YP

FAN, Input

$14.99

$

In Stock, only 1 left!

0

0040

Simplicity 5102914YP

WASHER, Slotted

$3.99

$

In Stock, only 1 left!

0

0045

Simplicity 5102916YP

NUT, ZT5400

$3.49

$

In Stock, only 1 left!

0

0175

Simplicity 1759654AYP

Valve, Tow

$22.99

$

In Stock, only 2 left!

0

0190

Simplicity 1722460SM

PIN, Hair
(Superseded to 703430)

$3.49

$

In Stock, only 2 left!

0

0300

Simplicity 1759392YP

SPACER, Transmission

$14.99

$

Usually ships in 2-12 days

0

0310

Simplicity 707945

CAPSCREW, HexHead, 7/16-14 X 11 1/4

$12.99

$

Usually ships in 2-12 days

0

0315

Simplicity 703183

WASHER, Flat

$3.99

$

In Stock, only 2 left!

0

0320

Simplicity 1930650SM

NUT, Flange, 7/16-14

$5.49

$

In Stock, only 4 left!

0

0430

Simplicity TBD

The service part is in development.

$

$

Currently unavailable

0440

Simplicity TBD

The service part is in development.

$

$

Currently unavailable

0450

Simplicity TBD

The service part is in development.

$

$

Currently unavailable

0460

Simplicity TBD

The service part is in development.

$

$

Currently unavailable

0500

Simplicity 7600158YP

KIT, Hub Replacement

Note: (Includes Ref. 0500-10 & 0500-20)

$122.99

$

Usually ships in 2-12 days

0

0500-10

HUB, EZT Transmission

$

$

Not available

0500-20

NUT, EZT Transmission

$

$

Not available
