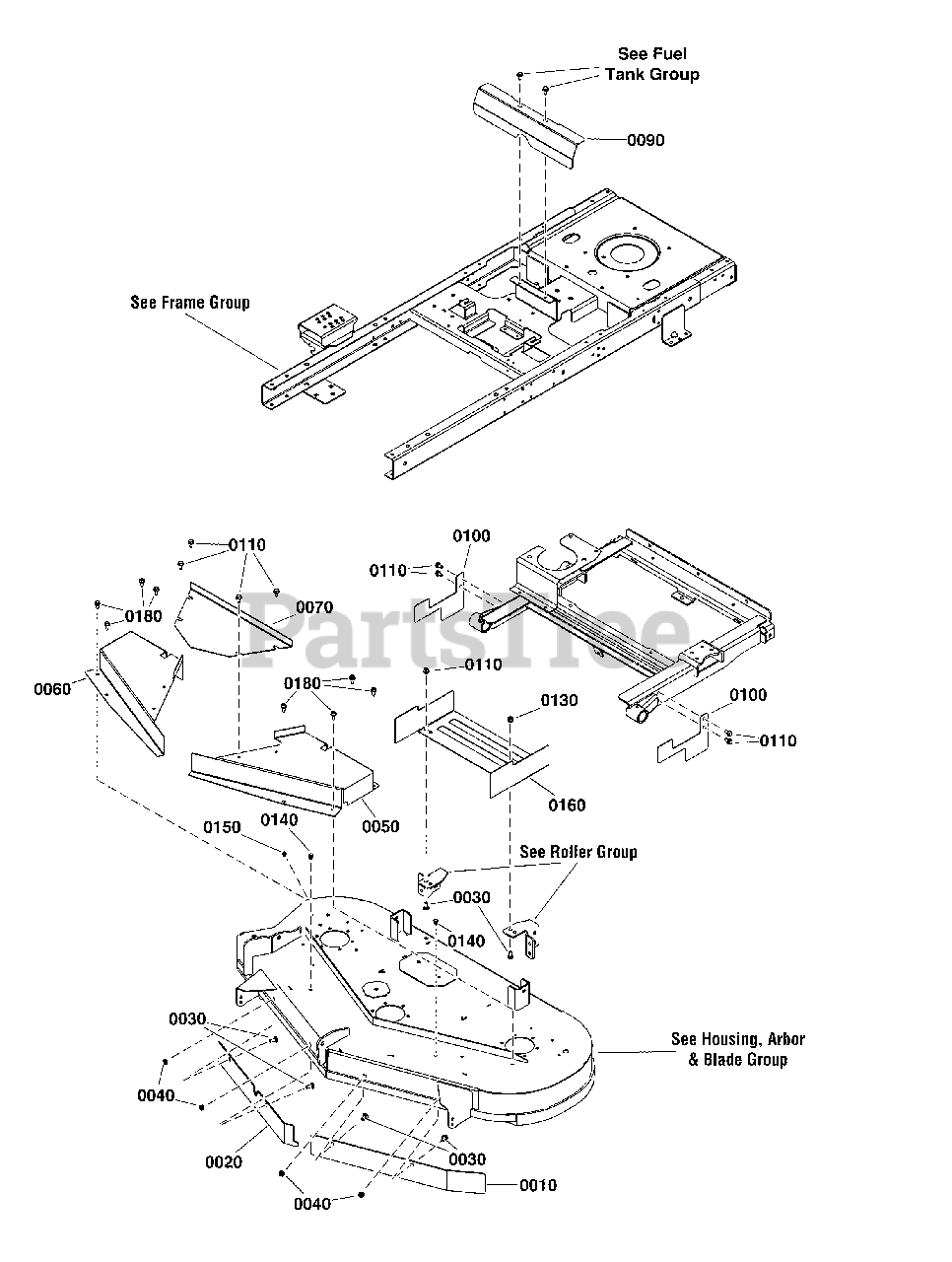

SZT 275 (2691695-01) - Simplicity Courier 122cm Zero-Turn Mower, 8270 series Briggs & Stratton French Guard Group - 48" FAB Deck, HOZ Susp Parts Diagram

Courier 122cm Zero-Turn Mower, 8270 series Briggs & Stratton

French Guard Group - 48" FAB Deck, HOZ Susp Parts Diagram

  • Title

0010

Simplicity 1761085AYP

BAFFLE, Guard 48 RD LHS, Black

$40.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1761086AYP

BAFFLE, Guard 48 RD RHS, Black

$42.99

$

Usually ships in 2-12 days

0

0030

Simplicity 703185

BOLT, Carriage, 5/16-18 X 3/4, GR5

$3.49

$

In Stock, Qty 16

0

0040

Simplicity 5025127SM

NUT, 5/16-18, Hex Serrated Flange (Small)

$3.49

$

In Stock, Qty 5

0

0050

Simplicity 1761565AYP

COVER, LH Arbor, 48 FAB, CE-Black

$100.99

$

Usually ships in 2-12 days

0

0060

Simplicity 1761564AYP

COVER, RH Arbor, 48 FAB, CE-Black

$100.99

$

Usually ships in 2-12 days

0

0070

Simplicity 1761566AYP

COVER, Top Arbor, 48 FAB, CE-Black

$41.99

$

Usually ships in 2-12 days

0

0100

Simplicity 1760087AYP

COVER, 48, Side Suspension,CE-Black

$12.99

$

Usually ships in 2-12 days

0

0110

Simplicity 703949

SCREW, Washer Head, 5/16-18 X 5/8

$3.99

$

In Stock, Qty 5

0

0140

Simplicity 7046780SM

PLUG, Hole, .44" OD, Polyethylene

$4.99

$

Usually ships in 2-12 days

0

0150

Simplicity 7073293YP

PLUG, Hole, .30 OD, Polyethylene

$2.99

$

Usually ships in 2-12 days

0

0160

Simplicity 1760077AYP

COVER, 48, Rear Deck Belt, CE-Black

$70.99

$

Usually ships in 2-12 days

0

0170

Simplicity 1760154AYP

COVER, Bystander Pulley, Black

$45.99

$

Usually ships in 2-12 days

0

0180

Simplicity 703228

SCREW, 5/16-18 X .750, Washer Head Taptite

$4.49

$

In Stock, Qty 20+

0
