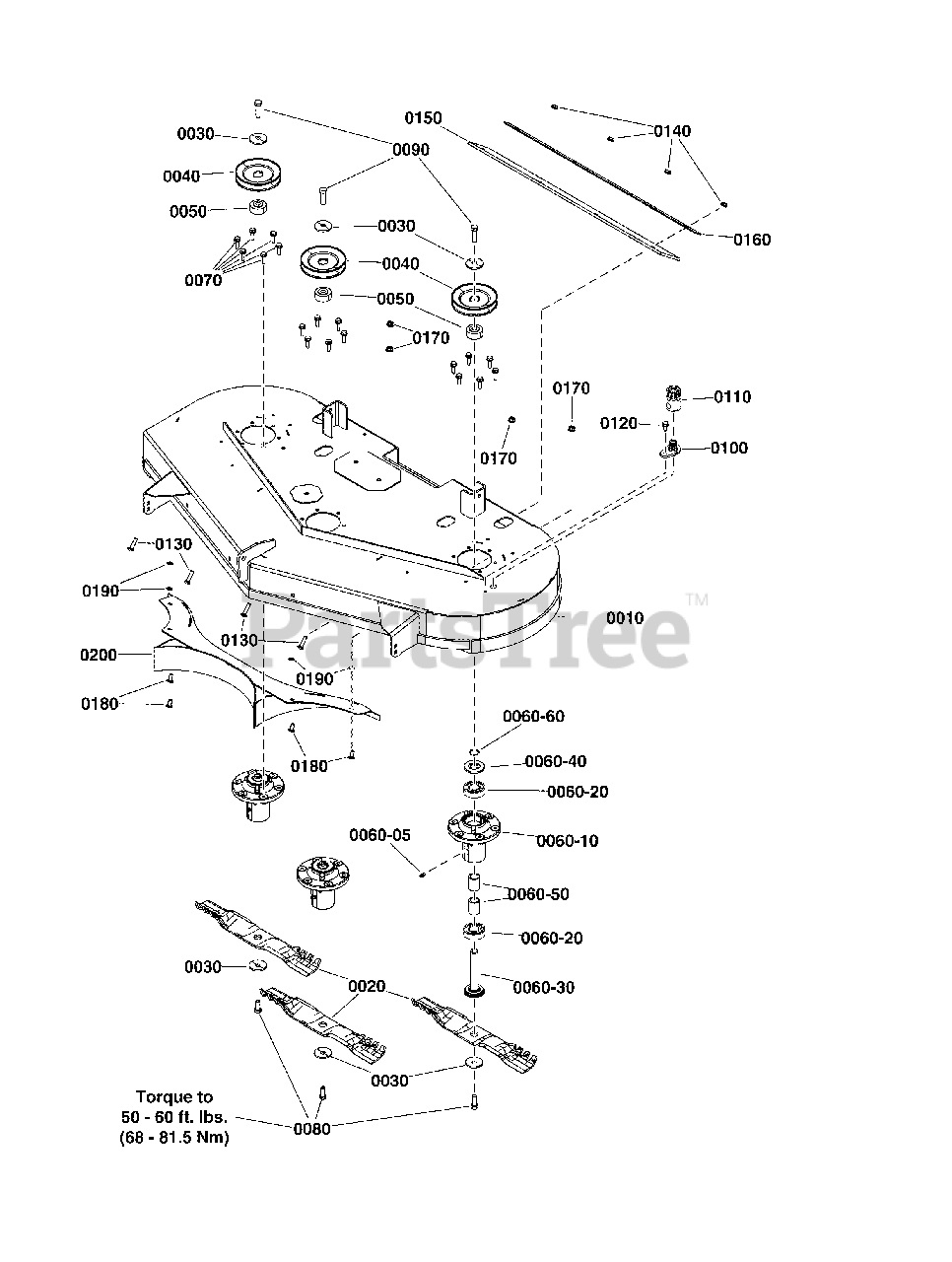

SZT 275 (2691460-00) - Simplicity Courier 48"/122cm Zero-Turn Mower, 724cc Briggs & Stratton 48" Mower Deck - Housing & Arbor Group Export Parts Diagram

Courier 48"/122cm Zero-Turn Mower, 724cc Briggs & Stratton

48" Mower Deck - Housing & Arbor Group Export Parts Diagram

  • Title

0010

Simplicity 1687945YP

KIT, Mower Weldment W/Decals, 48" FAB RD ZT - Orange

$2393.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1760647YP

BLADE, Mulching

$29.99

$

In Stock, Qty 5

0

0030

Simplicity 1656916SM

WASHER, Spring

$7.49

$

In Stock, Qty 20+

0

0040

Simplicity 1732951SM

PULLEY, 4.60

$19.99

$

In Stock, Qty 20+

0

0050

Simplicity 706362

SPACER, Pulley

$9.99

$

Usually ships in 2-12 days

0

0060-05

Simplicity 1704314SM

FITTING, Lube, 1/4
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0060-10

Simplicity 1755437YP

HOUSING, w/Lube Fitting
(Superseded to 1760371YP)

$76.99

$

Usually ships in 2-12 days

0

0060-20

Simplicity 1735399YP

BEARING, Ball 20mm

$9.99

$

In Stock, Qty 20+

0

0060-30

Simplicity 1760276YP

SHAFT, Spindle

$27.99

$

In Stock, only 4 left!

0

0060-40

Simplicity 1735323YP

SHIELD, Arbor
(Superseded to 84003166)

$6.99

$

In Stock, Qty 8

0

0060-50

Simplicity 1735328YP

SPACER, Bearing

$6.49

$

In Stock, only 3 left!

0

0060-60

Simplicity 1960766YP

RING, Self Locking

$4.49

$

In Stock, Qty 20+

0

0070

Simplicity 704146

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1

$3.99

$

In Stock, Qty 20+

0

0080

Simplicity 1920676SM

CAPSCREW, HexHead, 7/16-14 X 1, G5, BLK

$5.49

$

In Stock, Qty 12

0

0090

Simplicity 1921212SM

CAPSCREW, Hex Head, 7/16-14 X 1 1/2, G5

$

$

Not available

0100

Simplicity 1756247YP

ADAPTER, Washout Port

$6.49

$

Usually ships in 2-12 days

0

0110

Simplicity 1756246YP

CONNECTOR, Washout Port

$15.99

$

In Stock, only 1 left!

0

0120

Simplicity 703228

SCREW, 5/16-18 X .750, Washer Head Taptite

$4.49

$

In Stock, Qty 20+

0

0130

Simplicity 703446

BOLT, Carriage, 5/16-18 X 1 1/4, GR5

$4.49

$

In Stock, Qty 5

0

0140

Simplicity 5025127SM

NUT, 5/16-18, Hex Serrated Flange (Small)

$3.49

$

In Stock, only 4 left!

0

0150

Simplicity 1761251YP

FLAP, Rubber, Rear Discharge

$50.99

$

Usually ships in 2-12 days

0

0160

Simplicity 1761516AYP

STRIP, Discharge Flap, Black

$29.99

$

Usually ships in 2-12 days

0

0170

Simplicity 703115

NUT, 5/16-18, Flange Nylock, GR F, Zinc/Clear

$3.49

$

In Stock, Qty 20+

0

0180

Simplicity 703185

BOLT, Carriage, 5/16-18 X 3/4, GR5

$3.49

$

In Stock, Qty 16

0

0190

Simplicity 703297

RETAINER, 5/16 X 5/8

$3.99

$

In Stock, Qty 20+

0

0200

Simplicity 1761092AYP

BAFFLE, Mulch, Black

$

$

Currently unavailable
