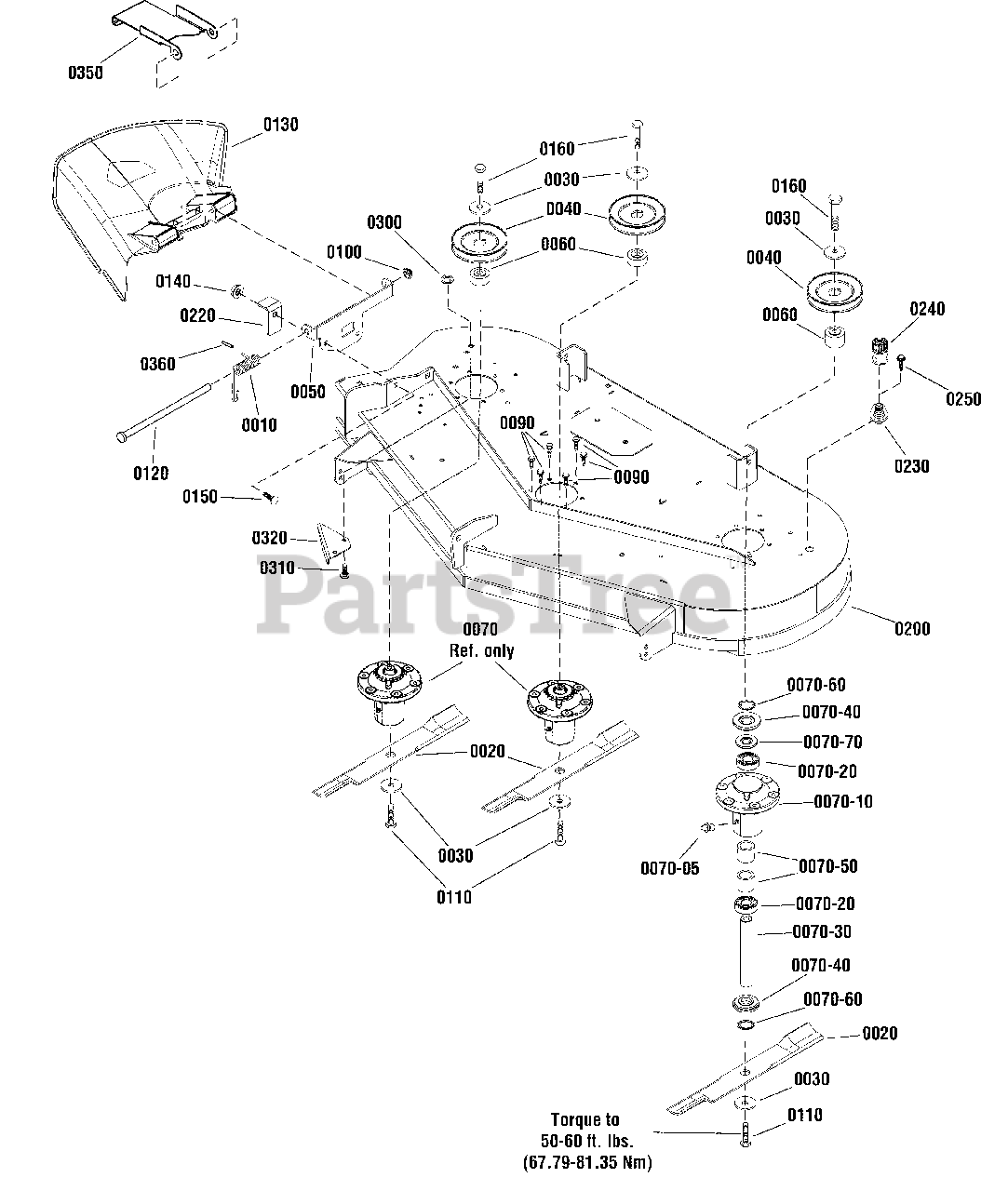

SZT 250 (2691359-02) - Simplicity Courier 48"/122cm Zero-Turn Mower, 724cc Briggs & Stratton 48" Mower Deck - Housing, Arbors & Blade Group, ZT - EU Parts Diagram

Courier 48"/122cm Zero-Turn Mower, 724cc Briggs & Stratton

48" Mower Deck - Housing, Arbors & Blade Group, ZT - EU Parts Diagram

  • Title

0010

Simplicity 7035813SM

SPRING, Torsion, Side Discharge

$24.99

$

In Stock, only 1 left!

0

0020

Simplicity 1759055YP

BLADE, 16.5" (122cm) LG, .807 ID, .75" Lift, 48" MWR

$27.99

$

In Stock, Qty 20+

0

0030

Simplicity 1656916SM

WASHER, Spring, .475 ID x 1.75 OD x .156 Thick, Black

$7.49

$

In Stock, Qty 20+

0

0040

Simplicity 1732951SM

PULLEY, 4.60" OD, 1.0" ID, .87" WD, BLK

$19.99

$

In Stock, Qty 20+

0

0050

Simplicity 1758982BMYP

BRACKET, Deflector
(Superseded to 1758982AYP)

$42.99

$

In Stock, only 1 left!

0

0060

Simplicity 706362

SPACER, HUB, .75 HI, .457 ID

$9.99

$

Usually ships in 2-12 days

0

0070

ARBOR ASSEMBLY

Note: (Not a Part Sale Item)

$

$

Not available

0070-05

Simplicity 1704314SM

FITTING, Lube
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0070-10

Simplicity 1755437YP

HOUSING, w/Lube Fitting
(Superseded to 1760371YP)

$76.99

$

Usually ships in 2-12 days

0

0070-20

Simplicity 1735399YP

BEARING, Ball 20MM

$9.99

$

In Stock, Qty 20+

0

0070-30

Simplicity 1735326YP

SHAFT, Spindle, 20mm DIA, 134.60mm LG
(Superseded to 1760276YP)

$27.99

$

In Stock, only 2 left!

0

0070-40

Simplicity 1735323YP

SHIELD, Arbor, 2-1/16 OD
(Superseded to 84003166)

$6.99

$

In Stock, only 3 left!

0

0070-50

Simplicity 1735328YP

SPACER, Bearing, .812 ID, 1.25 OD, .442 Tall, PM

$6.49

$

In Stock, only 1 left!

0

0070-60

Simplicity 1960766YP

RING, Self Locking (For 20MM Shaft)

$4.49

$

In Stock, Qty 20+

0

0070-70

Simplicity 7106224YP

BEARING, Seal
(Superseded to 7106224YP)

$16.99

$

Usually ships in 2-12 days

0

0090

Simplicity 704146

SCREW, 5/16-18 X 1.0, Hex Washer Head Self-Tap, ZC/CL

$3.99

$

In Stock, Qty 20+

0

0100

Simplicity 703179

PUSHNUT, .500 DIA, Cap Type, Zinc/Clear

$3.49

$

In Stock, Qty 20+

0

0110

Simplicity 1920676SM

SCREW, 7/16-14 x 1 Hex Head Cap, GR 5, Black

$5.49

$

In Stock, Qty 16

0

0120

Simplicity 7104640YP

ROD, .5" OD, 9.75" LG, Pivot, Chute, Discharge

$28.99

$

In Stock, only 1 left!

0

0130

Simplicity 7104733YP

CHUTE, Discharge, Side, 38 / 42

$87.99

$

In Stock, Qty 20+

0

0140

Simplicity 5025128SM

NUT, 3/8-16, Hex Serated Flange

$3.49

$

In Stock, only 2 left!

0

0150

Simplicity 703815

BOLT, 3/8-16 X 1.00, Carriage, SH NK, GR 5, Zinc/Clear

$4.49

$

In Stock, only 4 left!

0

0160

Simplicity 1921212SM

SCREW, 7/16-14X1.50, Hex Head, G5 Blk

$

$

Not available

0200

Simplicity 1687841YP

WELDMENT, Mower - 48" FAB ZT (Orange)

$3079.99

$

Usually ships in 2-12 days

0

0220

Simplicity 1758593BMYP

PROP, Deflector

$18.99

$

Usually ships in 2-12 days

0

0230

Simplicity 1756247YP

ADAPTOR, Washout Port

$6.49

$

Usually ships in 2-12 days

0

0240

Simplicity 1756246YP

CONNECTOR, Washout Port 46/52" Black Poly

$15.99

$

Usually ships in 2-12 days

0

0250

Simplicity 703228

SCREW, 5/16-18 X .750, Washer Head Taptite

$4.49

$

In Stock, Qty 20+

0

0300

Simplicity 703115

NUT, 5/16-18, Flange Nylock, GR F, Zinc/Clear

$3.49

$

In Stock, Qty 20+

0

0310

Simplicity 703185

BOLT, 5/16-18X3/4 GR5, Carriage, YZ

$3.49

$

In Stock, Qty 20+

0

0320

Simplicity 706368

BAFFLE, Pinchoff, 48" Fab Deck, BLK

$107.99

$

Usually ships in 2-12 days

0

0350

Simplicity 1759986BMYP

SUPPORT, Deflector

$26.99

$

Usually ships in 2-12 days

0

0360

Simplicity 5023489SM

CAP, Protector, .120 ID

$3.99

$

Usually ships in 2-12 days

0
