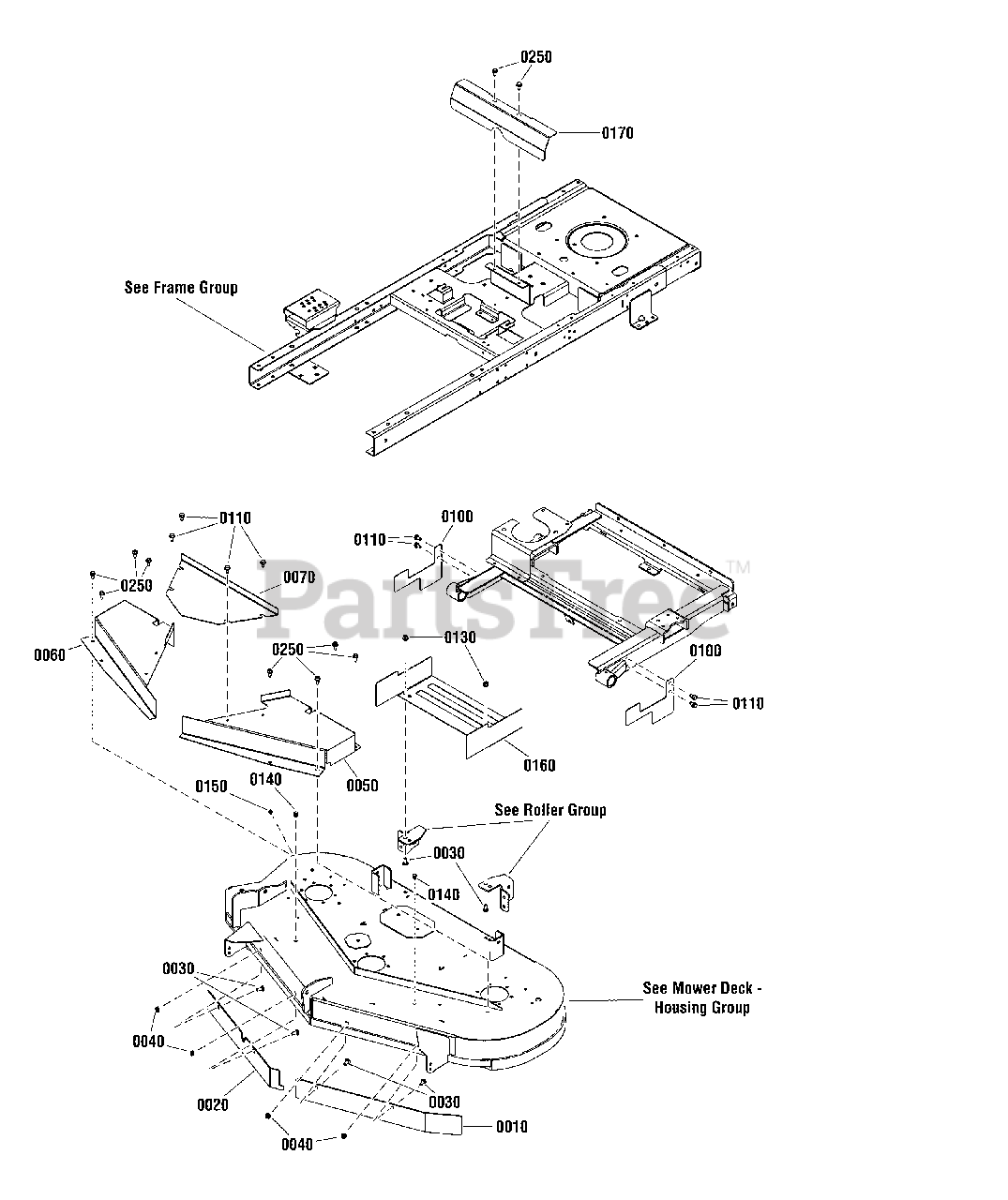

SZT 250 (2691359-00) - Simplicity Courier 48"/122cm Zero-Turn Mower, 724cc Briggs & Stratton 48" Mower Deck - Guarding Group, Susp Parts Diagram

Courier 48"/122cm Zero-Turn Mower, 724cc Briggs & Stratton

48" Mower Deck - Guarding Group, Susp Parts Diagram

  • Title

0010

Simplicity 1759938CJYP

BAFFLE, 48, LH, Black

$43.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1759939CJYP

BAFFLE, 48, RH, Black

$43.99

$

Usually ships in 2-12 days

0

0030

Simplicity 703185

BOLT, 5/16-18X3/4 GR5, Carriage, YZ

$3.49

$

In Stock, Qty 16

0

0040

Simplicity 5025127SM

NUT, 5/16-18, Hex Serated Flange (Small)

$3.49

$

In Stock, Qty 7

0

0050

Simplicity 1760054AYP

COVER, 48, LH Arbor, CE-Black

$112.99

$

Usually ships in 2-12 days

0

0060

Simplicity 1760055AYP

COVER, 48, RH Arbor, CE-Black

$112.99

$

Usually ships in 2-12 days

0

0070

Simplicity 1760074AYP

COVER, 48, Top Arbor, CE-Black

$63.99

$

Usually ships in 2-12 days

0

0100

Simplicity 1760087AYP

COVER, 48, Side Suspension,CE-Black

$12.99

$

Usually ships in 2-12 days

0

0110

Simplicity 703949

SCREW, 5/16-18 X .625, Hex Washer Head, Thread Roll, Zinc/Clear

$3.99

$

In Stock, Qty 5

0

0130

Simplicity 703115

NUT, 5/16-18, Flange Nylock, GR F, Zinc/Clear

$3.49

$

In Stock, Qty 20+

0

0140

Simplicity 7046780SM

PLUG, Hole, .44" OD, Polyethylene

$4.99

$

Usually ships in 2-12 days

0

0150

Simplicity 7073293YP

PLUG, Hole, .30 OD, Polyethylene

$2.99

$

Usually ships in 2-12 days

0

0160

Simplicity 1760077AYP

COVER, 48, Rear Deck Belt, CE-Black

$70.99

$

Usually ships in 2-12 days

0

0170

Simplicity 1760154AYP

COVER, Bystander Pulley, Black

$45.99

$

Usually ships in 2-12 days

0

0250

Simplicity 703228

SCREW, 5/16-18 X .750, Washer Head Taptite

$4.49

$

In Stock, Qty 20+

0
