SZT 20486 BVE (85682) - Snapper 48" Zero-Turn Mower, 20hp TWIN STICK CONTROL, L.H. Parts Diagram

48" Zero-Turn Mower, 20hp

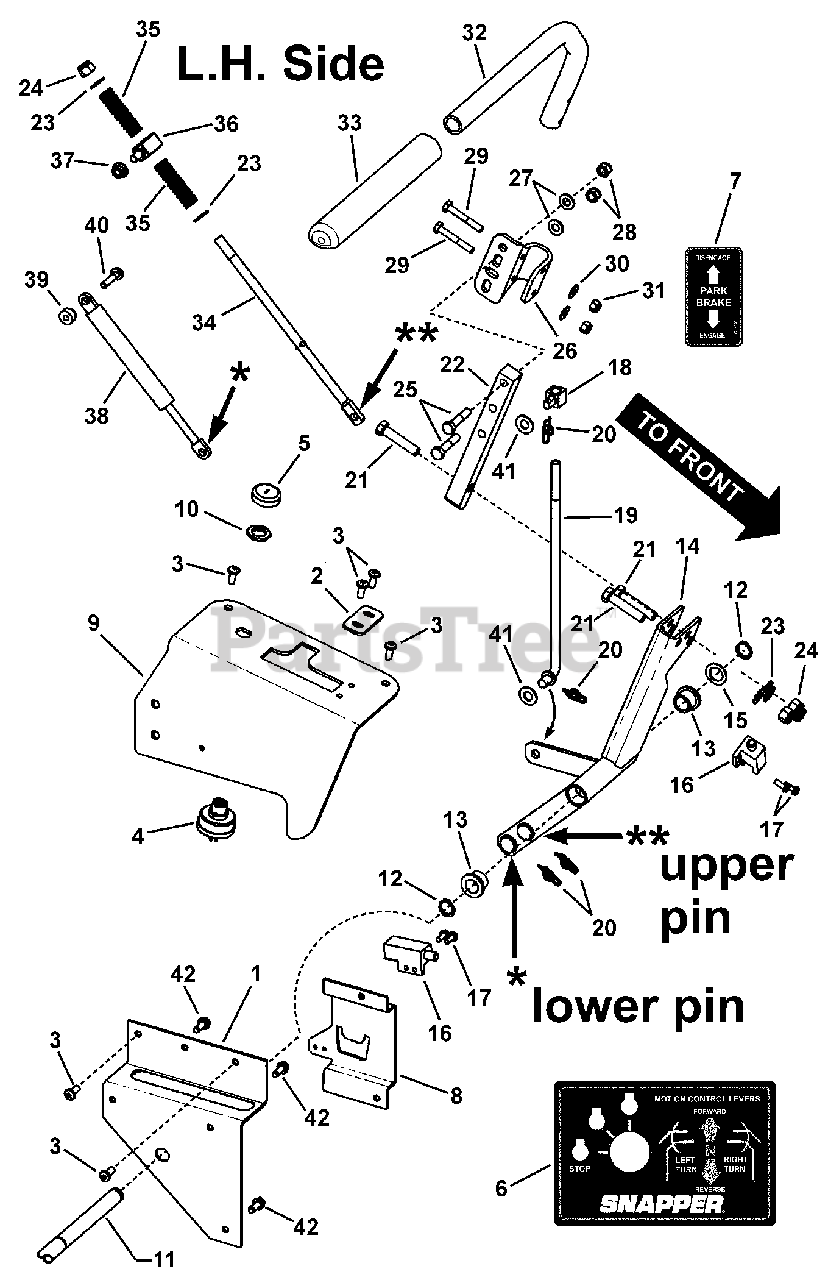

TWIN STICK CONTROL, L.H. Parts Diagram

  • Title

1

Snapper 7072866

BRACKET, L.H. Tank Support

$

$

Not available

2

Snapper 7074931

BRACKET, Speed Adjustment

$

$

Not available

3

Snapper 7090999

SCREW, 1/4-20 x 5/8" Pan Head Self-Tap (Torx)
(Superseded to 7090999FS)

$3.99

$

Usually ships in 2-12 days

0

4

Snapper 7026343

SWITCH, Ignition (After-fire Solenoid)
(Superseded to 7026343SM)

Note: also shown on electronic components page

$38.99

$

In Stock, Qty 18

0

5

Snapper 7023506

BEZEL
(Superseded to 7023506SM)

Note: also shown on electronic components page

$4.49

$

Usually ships in 2-12 days

0

6

Snapper 7072952

DECAL, Ignition Switch
(Superseded to 7072952YP)

Note: also shown on Decal page

$9.99

$

Usually ships in 2-12 days

0

7

Snapper 7075812

DECAL, Park Brake
(Superseded to 7075812YP)

Note: also shown on Decal page

$7.99

$

Usually ships in 2-12 days

0

8

Snapper 7072941

BRACKET, Brake/Clutch Detent, Twin Stick

$

$

Not available

9

Snapper 7072670

BRACKET, L.H. Console- Twin Stick

$

$

Not available

10

Snapper 7012685

NUT, 5/8-32 Hex
(Superseded to 7012685YP)

$3.99

$

Usually ships in 2-12 days

0

11

Snapper 7072851

SHAFT, Control, Twin Stick
(Superseded to 7072851YP)

Note: Ref: Twin Stick Control, R.H.page

$33.99

$

Usually ships in 2-12 days

0

12

Snapper 7010739

RING, 5/8" External Reatining
(Superseded to 7010739SM)

$3.49

$

In Stock, only 2 left!

0

13

Snapper 7013874

BUSHING, 5/8 x 5/8" Bronze

$5.49

$

Usually ships in 2-12 days

0

14

Snapper 7041539

WELDMENT, Twin Stick, LH
(Superseded to 7041539YP)

$242.99

$

Usually ships in 2-12 days

0

15

Snapper 7091628

WASHER, .64 x .99 x .05 Flat
(Superseded to 7091628SM)

$4.49

$

In Stock, only 3 left!

0

16

Snapper 7023355

SWITCH, Park Brake (NC/NO)
(Superseded to 7023355YP)

Note: also shown on electronic components page

$17.99

$

In Stock, Qty 20+

0

17

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

$3.49

$

In Stock, Qty 11

0

18

Snapper 7024607

SWIVEL, 3/8-16 Internal Thread
(Superseded to 7024607YP)

$8.49

$

In Stock, only 1 left!

0

19

Snapper 7073421

CONTROL ROD (3/8-16 thread)
(Superseded to 7073421YP)

$12.99

$

Usually ships in 2-12 days

0

20

Snapper 7091593

PIN, 3/8 Self Locking Cotter
(Superseded to 703355)

$3.99

$

In Stock, Qty 14

0

21

Snapper 7091553

SCREW, 3/8-16 x 1-3/4" Hex Head Cap, GR 5
(Superseded to 704289)

$4.99

$

In Stock, Qty 13

0

22

Snapper 7072686

BLOCK, Twin Stick Control
(Superseded to 7072686YP)

$95.99

$

Usually ships in 2-12 days

0

23

Snapper 7012316

WASHER, 3/8" Flat
(Superseded to 703946)

$3.99

$

In Stock, Qty 20+

0

24

Snapper 7091299

NUT, 3/8-16 Hex Nyloc
(Superseded to 703117)

$3.49

$

In Stock, Qty 20+

0

25

Snapper 7091540

SCREW, 5/16-18 x 1-1/2" Hex Head Cap, GR 5
(Superseded to 703906)

$4.99

$

In Stock, only 4 left!

0

26

Snapper 7074628

BRACKET, Handle Adjustment
(Superseded to 7074628YP)

$9.49

$

Usually ships in 2-12 days

0

27

Snapper 7090188

WASHER, .34 x .69 x .08 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 3 left!

0

28

Snapper 7091298

NUT, 5/16-18 Hex Nyloc
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

29

Snapper 7091813

SCREW, 1/4-20 x 1-3/4" Hex Head Cap, GR 5
(Superseded to 7091003YP)

$3.49

$

Usually ships in 2-12 days

0

30

Snapper 7091294

WASHER, .28 x .63 x .06 Flat, GR 5
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

31

Snapper 7091603

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

32

Snapper 7072831

HANDLE, Twin Stick
(Superseded to 7072831YP)

$53.99

$

Usually ships in 2-12 days

0

33

Snapper 7077212

GRIP, Twin Stick

$

$

Currently unavailable

34

Snapper 7074899

RETURN ROD (3/8-16 thread)

$

$

Not available

35

Snapper 7072450

SPRING, Neutral Return
(Superseded to 7072450SM)

$6.49

$

Usually ships in 2-12 days

0

36

Snapper 7071585

SWIVEL, Shoulder (5/16-18 thread)

$

$

Not available

37

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0

38

Snapper 7075031

DAMPENER, Hydraulic
(Superseded to 7075031YP)

$

$

Not available

39

Snapper 7075026

SPACER, Twin Stick
(Superseded to 7075026YP)

$26.99

$

Usually ships in 2-12 days

0

40

Snapper 7090872

BOLT, 1/4-20 x 1-1/8" Hex Flange Lock, GR 5
(Superseded to 7090872YP)

$3.49

$

Usually ships in 2-12 days

0

41

Snapper 7090122

WASHER, 3/8" SAE Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

42

Snapper 7091819

SCREW, 1/4-20 x 5/8" Hex Washer Self-Tap
(Superseded to 703054)

Note: Was 90362

$4.49

$

In Stock, Qty 5

0
