SZT 20486 BVE (85682) - Snapper 48" Zero-Turn Mower, 20hp BRAKE/CLUTCH LEVER ASSEMBLY Parts Diagram

48" Zero-Turn Mower, 20hp

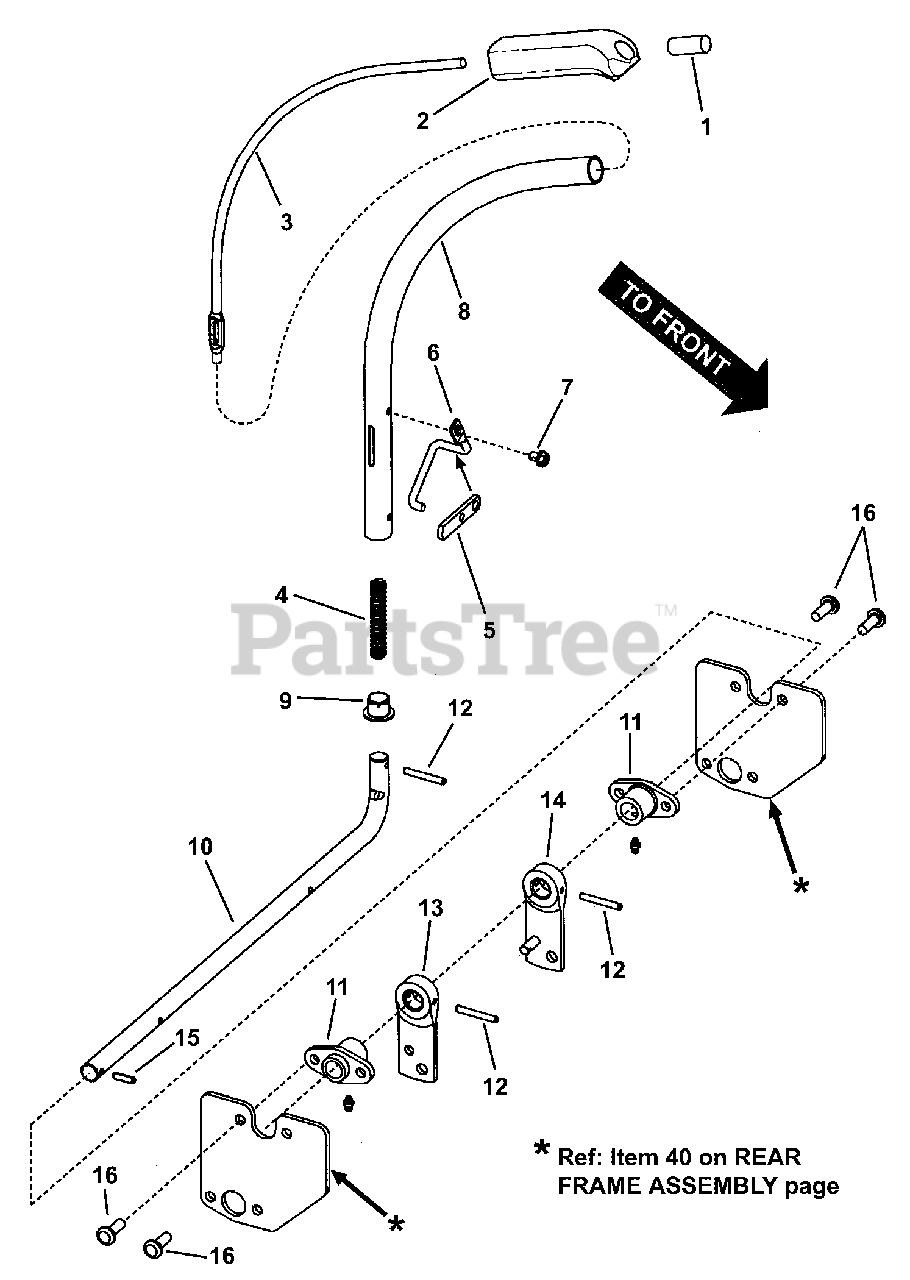

BRAKE/CLUTCH LEVER ASSEMBLY Parts Diagram

  • Title

1

Snapper 7075914

BUTTON, Park Brake
(Superseded to 7075914YP)

$3.49

$

Usually ships in 2-12 days

0

2

Snapper 7035945

GRIP, Brake/Clutch Handle
(Superseded to 7035945YP)

$9.49

$

Usually ships in 2-12 days

0

3

Snapper 7073452

ROD, Park Brake

Note: 10" arc radius

$

$

Not available

4

Snapper 7035946

SPRING, Clutch/Brake Release

$

$

Not available

5

Snapper 7035485

ARM, Brake/Clutch Lever
(Superseded to 7035485YP)

$12.99

$

Usually ships in 2-12 days

0

6

Snapper 7035484

PIVOT, Brake/Clutch Lever

$

$

Not available

7

Snapper 7091084

SCREW, 1/4-20 x 3/8" Hex Washer Self-Tap
(Superseded to 703583)

Note: Was 91293

$4.99

$

In Stock, Qty 20+

0

8

Snapper 7072871

TUBE, Park Brake

$

$

Not available

9

Snapper 7010694

BUSHING, Nylon
(Superseded to 7010694YP)

$4.49

$

In Stock, only 1 left!

0

10

Snapper 7073150

ROD, Brake Actuation

$

$

Not available

11

Snapper 7052431

PIVOT, Foot Shaft Assy (weldment 23170 with grease fitting, 13864)

$

$

Not available

12

Snapper 7090841

ROLL PIN, 3/16 x 1-1/2"
(Superseded to 7090841YP)

$4.49

$

In Stock, only 1 left!

0

13

Snapper 7029208

ARM, Brake/Clutch

$63.99

$

Usually ships in 2-12 days

0

14

Snapper 7042614

WELDMENT, Brake/Clutch Arm

$62.99

$

Usually ships in 2-12 days

0

15

Snapper 7090844

ROLL PIN, 3/16 x 3/4"
(Superseded to 2816169SM)

$4.49

$

Usually ships in 2-12 days

0

16

Snapper 7091000

SCREW, 5/16-18 x 7/8" Pan Head Self-Tap (Torx)
(Superseded to 1960086SM)

$4.99

$

In Stock, only 2 left!

0
