SZT 18426 BVE (85681) - Snapper 42" Zero-Turn Mower, 18hp 42" MOWER DECK ASSEMBLY (Part 3) Parts Diagram

42" Zero-Turn Mower, 18hp

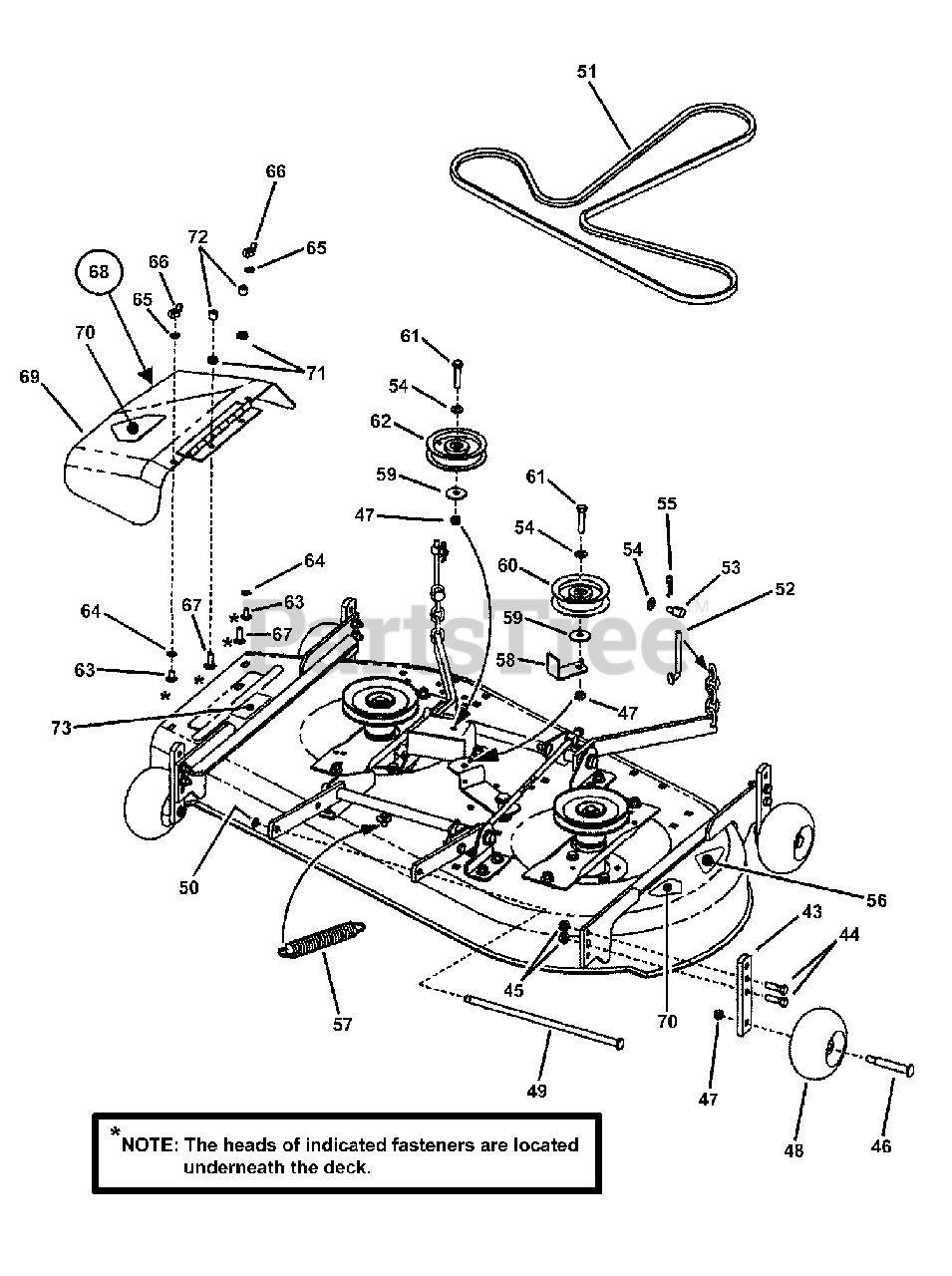

42" MOWER DECK ASSEMBLY (Part 3) Parts Diagram

  • Title

43

Snapper 7035835

POST, Anti Scalp 42" Deck
(Superseded to 7035835SM)

$20.99

$

In Stock, only 2 left!

0

44

Snapper 7091328

SCREW, 3/8-16 x 1-1/4", Hex Head Cap, GR 5
(Superseded to 703871)

$4.99

$

Usually ships in 2-12 days

0

45

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

46

Snapper 7029265

BOLT, Gage Wheel, 3/8-16 x 3-3/8" Hex Head Shoulder
(Superseded to 7029265SM)

Note: for gage wheel

$10.99

$

In Stock, Qty 5

0

47

Snapper 7091585

NUT, 3/8-16 Hex Center Lock, GR 5 or B
(Superseded to 703347)

$4.99

$

In Stock, only 4 left!

0

48

Snapper 7029264

WHEEL, Gage
(Superseded to 7029264YP)

$14.99

$

In Stock, only 2 left!

0

49

Snapper 7022717

ROD, Deck Support
(Superseded to 7022717YP)

$48.99

$

Usually ships in 2-12 days

0

50

Snapper 7017847

RING, .438 External Retaining
(Superseded to 7017847YP)

$4.49

$

Usually ships in 2-12 days

0

51

Snapper 7075235

BELT, HA Sect., 94.5" nom. effective length
(Superseded to 7075235YP)

$64.99

$

In Stock, only 1 left!

0

52

Snapper 7028728

ADJUSTER, Chain (5/16-18 thread)
(Superseded to 703827)

$10.99

$

In Stock, Qty 19

0

53

Snapper 7028200

SWIVEL, Adjustment
(Superseded to 7028200SM)

$13.99

$

In Stock, only 3 left!

0

54

Snapper 7090122

WASHER, 3/8" SAE Flat
(Superseded to 703878)

Note: replaces 91514, 91296

$3.99

$

In Stock, Qty 20+

0

55

Snapper 7091503

HAIR PIN, 3/32 x 1-1/2"
(Superseded to 7091503SM)

$3.99

$

In Stock, Qty 20+

0

56

Snapper 7024910

DECAL, 42" Deck

Note: see decal page

$

$

Not available

57

Snapper 7035969

SPRING, Extension 1.03 Dia. X 6.8" long
(Superseded to 7035969SM)

$20.99

$

Usually ships in 2-12 days

0

58

Snapper 7036561

BELT GUIDE, 38/42 Idler, HOZ

$

$

Not available

59

Snapper 7012063

WASHER, .406 I. D. Cone
(Superseded to 703963)

$6.99

$

In Stock, only 2 left!

0

60

Snapper 7075707

IDLER, Flat (4.00 O.D.)
(Superseded to 7075707YP)

$37.99

$

In Stock, only 1 left!

0

61

Snapper 7091553

SCREW, 3/8-16 x 1-3/4" Hex Head Cap, GR 5
(Superseded to 704289)

$4.99

$

In Stock, Qty 13

0

62

Snapper 7018574

IDLER, 4.12" Outside Diameter, Flat
(Superseded to 7018574SM)

$38.99

$

In Stock, Qty 20+

0

63

Snapper 7090799

BOLT, 5/16-18 x 5/8" Short Neck Carriage, GR 5
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

64

Snapper 7011791

RETAINER, 5/16" Bolt
(Superseded to 703297)

$3.99

$

In Stock, Qty 20+

0

65

Snapper 7091315

WASHER, .32 x .58 x .08 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

66

Snapper 7091537

WING LOCKNUT, 5/16-18
(Superseded to 7091537YP)

$4.49

$

In Stock, only 3 left!

0

67

Snapper 7091303

BOLT, 5/16-18 x 1" Short Neck Carriage, GR 5
(Superseded to 703800)

$3.99

$

In Stock, Qty 12

0

68

Snapper 7051401

ASSEMBLY, Chute & Decal
(Superseded to 7051401YP)

Note: includes items 69 & 70

$159.99

$

Usually ships in 2-12 days

0

69

Snapper 7051401

WELDMENT, Side Chute
(Superseded to 7051401YP)

Note: Was 40497

$159.99

$

Usually ships in 2-12 days

0

70

Snapper 7013010

DECAL, Danger, Cut Finger
(Superseded to 7013010SM)

Note: see decal page

$9.49

$

In Stock, Qty 11

0

71

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

72

Snapper 7023606

VINYL CAP, 1/4" I.D.
(Superseded to 7023606YP)

$3.99

$

In Stock, only 2 left!

0

73

Snapper 7046720

DECAL, Chute/Deflector
(Superseded to 7046720SM)

Note: see decal page

$7.49

$

Usually ships in 2-12 days

0
