SZT 18426 BVE (85681) - Snapper 42" Zero-Turn Mower, 18hp 42" DECK LIFT HANDLE ASSEMBLY Parts Diagram

42" Zero-Turn Mower, 18hp

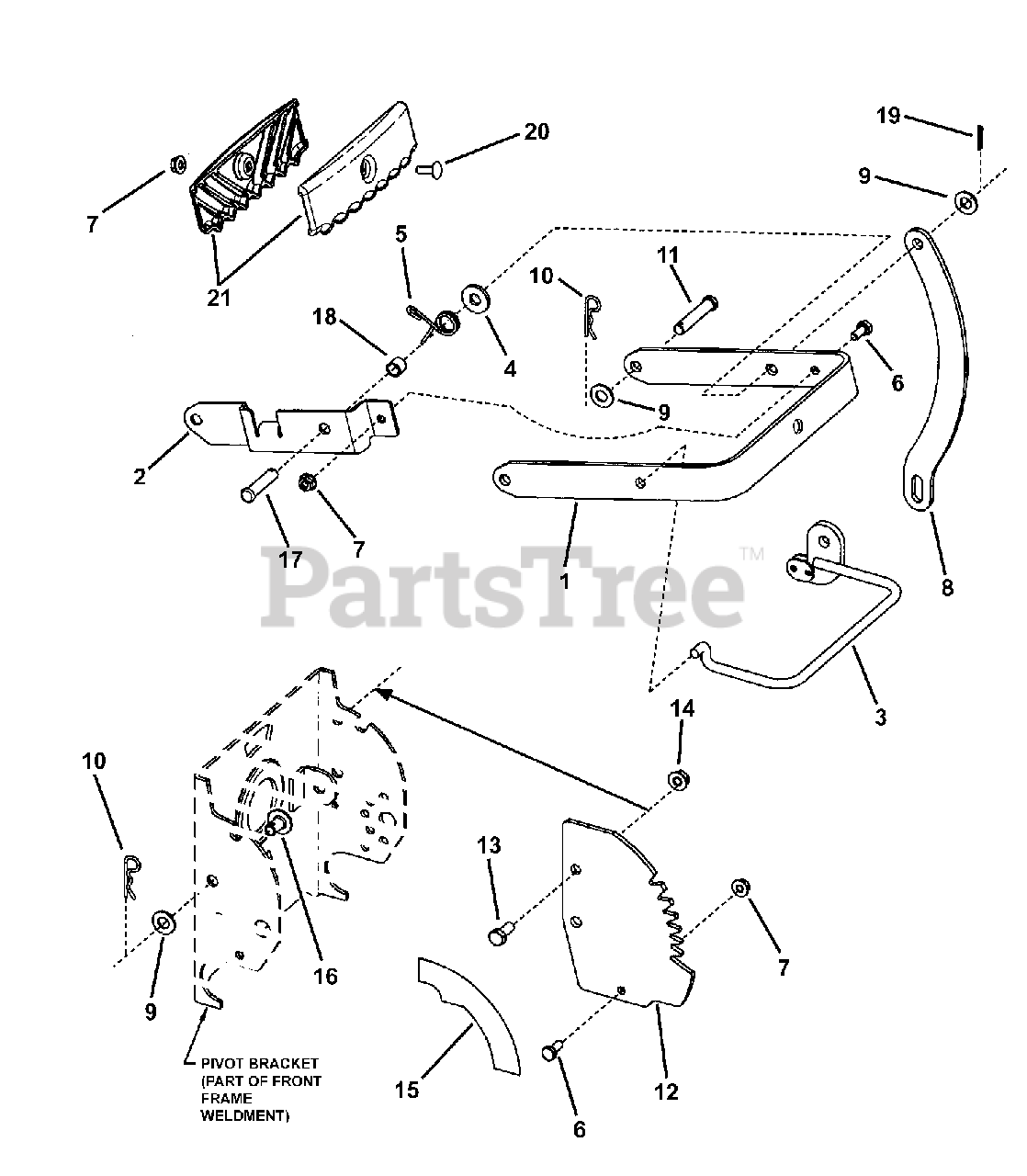

42" DECK LIFT HANDLE ASSEMBLY Parts Diagram

  • Title
1

Snapper 7041924

HANDLE, Deck Lift

$

$

Not available

2

Snapper 7041925

BRACKET, Pivot Support

$

$

Not available

3

Snapper 7058090

WELDMENT, Deck Lift Handle
(Superseded to 7058090YP)

$34.99

$

Usually ships in 2-12 days

0

4

Snapper 7029040

WASHER - Slipper
(Superseded to 7029040YP)

$2.99

$

Usually ships in 2-12 days

0

5

Snapper 7046489

SPRING, Torsion
(Superseded to 7046489YP)

$7.99

$

Usually ships in 2-12 days

0

6

Snapper 7090072

SCREW, 1/4-20 x 5/8" Hex Head Cap, GR 5
(Superseded to 001X38MA)

$4.49

$

In Stock, Qty 18

0

7

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

Note: Was 90583

$4.49

$

In Stock, Qty 6

0

8

Snapper 7035489

BAR, Deck Lift

$

$

Not available

9

Snapper 7090122

WASHER, 3/8" SAE Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

10

Snapper 7091503

HAIR PIN, 3/32 x 1-1/2"
(Superseded to 7091503SM)

$3.99

$

In Stock, Qty 20+

0

11

Snapper 7013996

PIN, 3/8 x 2" Clevis
(Superseded to 7013996SM)

$3.49

$

In Stock, only 1 left!

0

12

Snapper 7058077

DETENT, Lift Handle
(Superseded to 7058077YP)

$26.99

$

Usually ships in 2-12 days

0

13

Snapper 7091318

SCREW, 5/16-18 x 3/4" Hex Head Cap, GR 5
(Superseded to 704287)

$3.99

$

In Stock, Qty 9

0

14

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, GR 5
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0

15

Snapper 7046457

DECAL, Deck Position
(Superseded to 7046457YP)

$8.49

$

In Stock, only 1 left!

0

16

Snapper 7091887

PIN, 3/8 x 1/2" Large Head Clevis

$

$

Not available

17

Snapper 7046491

PIN, 3/8 x 1-5/8" Clevis

$

$

Not available

18

Snapper 7046490

SPACER, Deck Lift

$

$

Not available

19

Snapper 7091597

PIN, 3/32 x 3/4" Cotter
(Superseded to 703312)

$3.99

$

In Stock, Qty 20+

0

20

Snapper 7091530

BOLT, 1/4-20 x 3/4" Short Neck Carriage, GR 5
(Superseded to 7091530SM)

$3.99

$

In Stock, only 3 left!

0

21

Snapper 7074768

GRIP, Deck Lift
(Superseded to 7074768YP)

$6.99

$

Usually ships in 2-12 days

0
