SZT 18386 BVE (85680) - Snapper 38" Zero-Turn Mower, 18hp 38" SPINDLE ASSEMBLY Parts Diagram

38" Zero-Turn Mower, 18hp

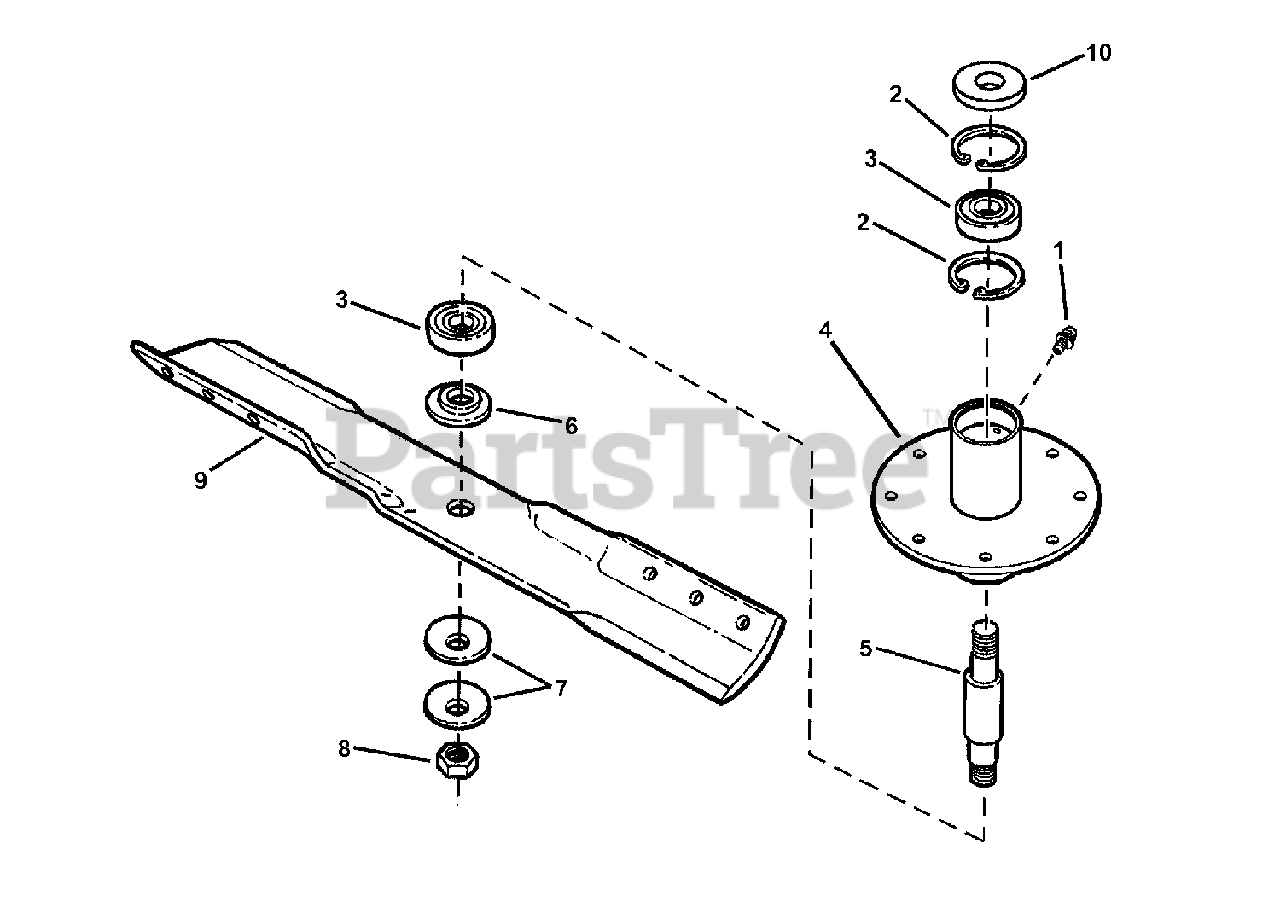

38" SPINDLE ASSEMBLY Parts Diagram

  • Title

Snapper 7063198

* ASSEMBLY, Spindle, Brake
(Superseded to 7063198SM)

Note: Was 59377 (Includes 2 thru 9)

$286.99

$

Usually ships in 2-12 days

0

1

Snapper 7010817

FITTING, Lube, Press-In (for .187 dia. Hole)
(Superseded to 7010817SM)

$4.49

$

In Stock, Qty 20+

0

2

Snapper 7012491

RING, 1-3/4" External Retaining Ring
(Superseded to 7012491SM)

Note: Truarc part no. N-5000-175

$4.49

$

In Stock, Qty 20+

0

3

Snapper 7013313

BALL BEARING, 3/4" I.D.
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

4

Snapper 7059378

WELDMENT, 48" Spindle Housing
(Superseded to 7059378SM)

$102.99

$

Usually ships in 2-12 days

0

5

Snapper 7072537

SHAFT, Blade Spindle (7.155" long)
(Superseded to 7072537SM)

$43.99

$

In Stock, Qty 20+

0

6

Snapper 7072109

WASHER, Spindle Blade
(Superseded to 7072109SM)

$5.99

$

In Stock, only 1 left!

0

7

Snapper 7024467

WASHER, Belleville 9/16 x 1-3/4"
(Superseded to 7024467SM)

$4.49

$

In Stock, Qty 20+

0

8

Snapper 7091633

NUT, 9/16-18 Hex, GR B
(Superseded to 7091633SM)

$4.99

$

In Stock, Qty 20+

0

9

Snapper 7042998

BLADE, 19.64 (38 Deck)
(Superseded to 7042998BZYP)

$27.99

$

In Stock, Qty 20+

0

10

Snapper 7072440

SPACER, Pulley
(Superseded to 7072440SM)

Note: not part of 59377, 38 Spindle Assembly

$9.49

$

In Stock, Qty 19
