SZT 18386 BVE (85680) - Snapper 38" Zero-Turn Mower, 18hp 38" MOWER DECK ASSEMBLY (Part 2) Parts Diagram

38" Zero-Turn Mower, 18hp

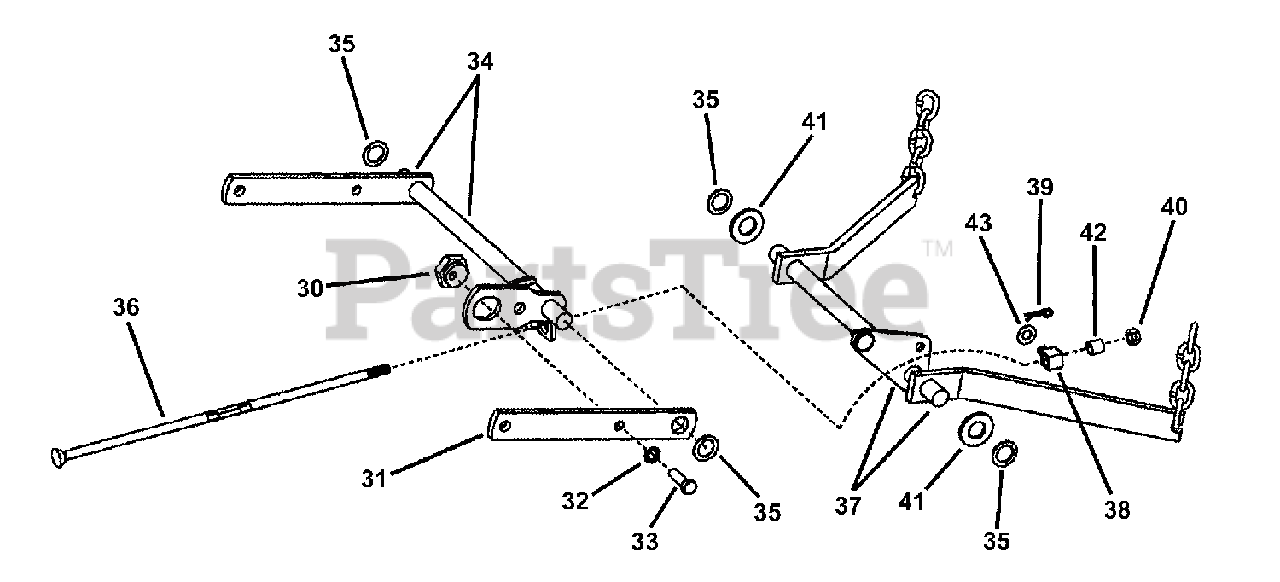

38" MOWER DECK ASSEMBLY (Part 2) Parts Diagram

  • Title

30

Snapper 7015447

ECCENTRIC, Leveling
(Superseded to 7015447YP)

$22.99

$

Usually ships in 2-12 days

0

31

Snapper 7034815

LIFT ARM, Front
(Superseded to 7034815YP)

$18.99

$

Usually ships in 2-12 days

0

32

Snapper 7090390

WASHER, 3/8" Internal Tooth Lock
(Superseded to 703930)

$4.49

$

Usually ships in 2-12 days

0

33

Snapper 7090163

SCREW, 3/8-24 x 1-1/4" Hex Head Cap w/Nylon Patch, GR 5

$

$

Not available

34

Snapper 7042586

WELDMENT, Lift Arm, Front
(Superseded to 7042586YP)

$128.99

$

Usually ships in 2-12 days

0

35

Snapper 7010935

WASHER, 3/4" Flat
(Superseded to 7010935SM)

$3.99

$

In Stock, Qty 20+

0

36

Snapper 7035495

ROD, Cutter Deck Timing (3/8-16 thread)
(Superseded to 7035495YP)

$22.99

$

Usually ships in 2-12 days

0

37

Snapper 7042585

WELDMENT, Lift Arm, Rear
(Superseded to 7042585YP)

$176.99

$

Usually ships in 2-12 days

0

38

Snapper 7024586

SWIVEL, Brake Link- PM
(Superseded to 7024586YP)

$4.99

$

Usually ships in 2-12 days

0

39

Snapper 7091310

HAIR PIN, #13
(Superseded to 703430)

Note: was 16231

$3.49

$

In Stock, only 2 left!

0

40

Snapper 7091585

NUT, 3/8-16 Hex Center Lock
(Superseded to 703347)

Note: Was 90546

$4.99

$

In Stock, only 2 left!

0

41

Snapper 7032028

WASHER, .781 x 1.5 x .132 Flat
(Superseded to 7032028YP)

$4.99

$

Usually ships in 2-12 days

0

42

Snapper 7021815

SPACER, .391 I.D. x .531 long

$7.99

$

Usually ships in 2-12 days

0

43

Snapper 7091528

WASHER, .375 x .875 x .083 Flat
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0
