SZT 18336 BVE (85679) - Snapper 33" Zero-Turn Mower, 18hp CASTER, FRONT WHEEL & TIRE ASSEMBLY Parts Diagram

33" Zero-Turn Mower, 18hp

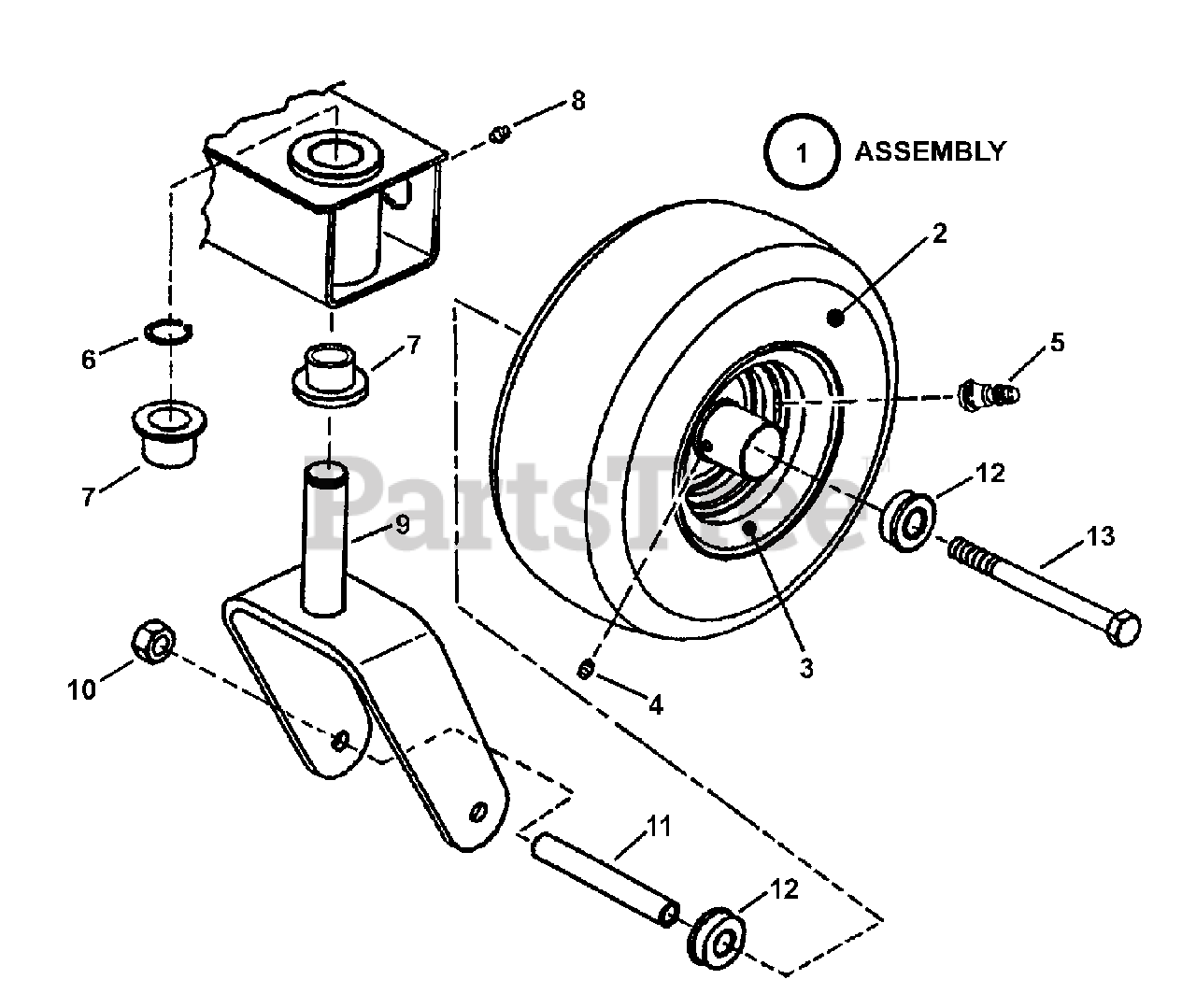

CASTER, FRONT WHEEL & TIRE ASSEMBLY Parts Diagram

  • Title

1

Snapper 1734013

ASSEMBLY, Front Wheel & Tire (Complete) (Includes Items 2 thru 5)
(Superseded to 1734013SM)

Note: was 7059090

$110.99

$

In Stock, Qty 20+

0

2

Snapper 7035618

TIRE, 11 x 4.00-5, Smooth Tread
(Superseded to 7035618SM)

Note: per front wheel & tire assembly

$75.99

$

In Stock, only 3 left!

0

3

Snapper 7039477

RIM, 5.00 Dia. x 3.00
(Superseded to 7039477SM)

Note: per front wheel & tire assembly

$96.99

$

Usually ships in 2-12 days

0

4

Snapper 7104428

FITTING, Lube (45° 8Mx1M)
(Superseded to 7104428YP)

Note: (Was 29275) per front wheel & tire assembly

$5.49

$

In Stock, Qty 10

0

5

Snapper 7012234

VALVE STEM, Air (Snap-in)
(Superseded to 7012234SM)

Note: per front wheel & tire assembly

$6.49

$

Usually ships in 2-12 days

0

6

Snapper 7012709

RING, 1" External Retaining
(Superseded to 703993)

$3.49

$

In Stock, Qty 13

0

7

Snapper 7023556

BUSHING, Caster
(Superseded to 7023556YP)

Note: Was 46626

$8.49

$

In Stock, Qty 20+

0

8

Snapper 7013864

LUBE FITTING, Straight (press-fit for .187 dia. Hole)
(Superseded to 7013864SM)

$3.49

$

In Stock, Qty 12

0

9

Snapper 7041783

WELDMENT, Pivot Yoke, Caster
(Superseded to 7400191DYP)

$107.99

$

Usually ships in 2-12 days

0

10

Snapper 7090839

NUT, 7/16-14 Hex Center Lock, GR 5 or B
(Superseded to 7090839SM)

$4.99

$

In Stock, Qty 5

0

11

Snapper 7035359

TUBE, 5/8 O.D. x 14 Ga x 4.51
(Superseded to 1734841SM)

$12.99

$

In Stock, Qty 20+

0

12

Snapper 7035358

BEARING, Ball, 5/8 x 1-3/8"
(Superseded to 7035358SM)

$37.99

$

In Stock, only 4 left!

0

13

Snapper 7091772

SCREW, 7/16-14 x 6" Hex Head Cap, GR 5
(Superseded to 7091772SM)

$8.49

$

In Stock, Qty 20+

0
