SZT 150 (2691357-01) - Simplicity Courier 46"/117cm Zero-Turn Mower, 656cc Briggs & Stratton Body, Fuel Tank & EVAP Group Parts Diagram

Courier 46"/117cm Zero-Turn Mower, 656cc Briggs & Stratton

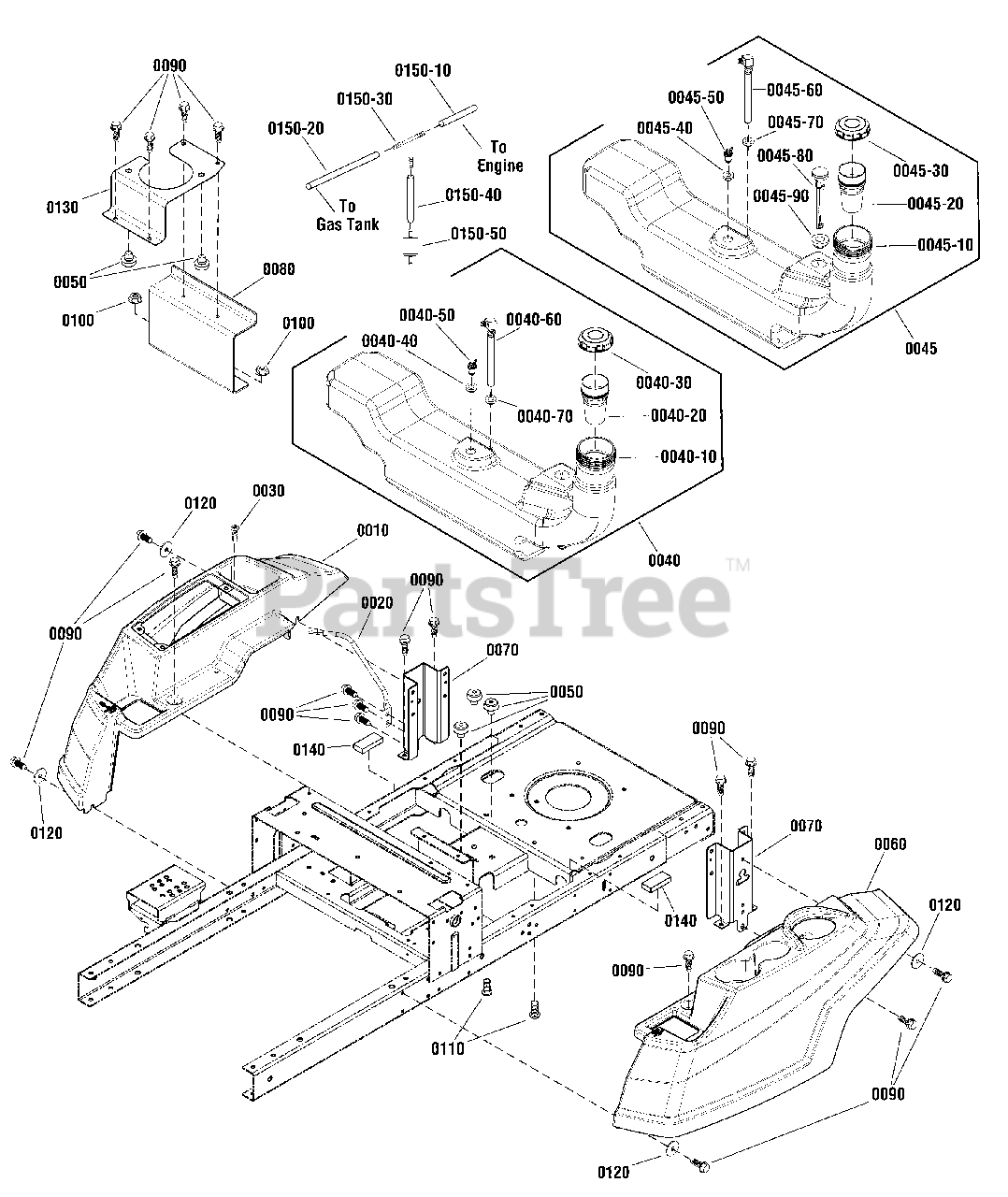

Body, Fuel Tank & EVAP Group Parts Diagram

  • Title

0010

Simplicity 1758077YP

FENDER, RH

$253.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1759369YP

ROD, Support

$13.99

$

In Stock, only 1 left!

0

0030

Simplicity 7090999SM

SCREW, Phillips Head, 1/4-20 X 5/8
(Superseded to 703953)

$4.49

$

In Stock, only 2 left!

0

0040

Simplicity 1758202YP

FUEL TANK ASSEMBLY, No Fuel Gauge

Note: (Incl. Ref. Nos. 0040-10 0040-20, 0040-30, 0040-40, 0040-50, 0040-60 & 0040-70)

$451.99

$

Usually ships in 2-12 days

0

0040-10

* TANK, Fuel

Note: (Included in Ref. No. 0040)

$

$

Not available

0040-20

Simplicity 1758282YP

NECK, Fuel Filter

Note: (Included in Ref. No. 0040)

$16.99

$

Usually ships in 2-12 days

0

0040-30

Simplicity 1758314YP

CAP, Fuel (Non Vented)

Note: (Included in Ref. No. 0040)

$35.99

$

Usually ships in 2-12 days

0

0040-40

Simplicity 799624

GROMMET

Note: (Included in Ref. No. 0040)

$8.99

$

In Stock, Qty 15

0

0040-50

Simplicity 7104638YP

VENT, Remote

Note: (Included in Ref. No. 0040)

$

$

Not available

0040-60

Simplicity 1758927YP

TUBE, Fuel Pickup

Note: (Included in Ref. No. 0040)

$8.99

$

In Stock, Qty 5

0

0040-70

Simplicity 1726400SM

BUSHING
(Superseded to 1654930SM)

Note: (Included in Ref. No. 0040)

$7.99

$

In Stock, Qty 20+

0

0045

Simplicity 1758919YP

FUEL TANK ASSEMBLY. W / Fuel Gauge

Note: (Incl. Ref. Nos. 0045-10, 0045-20, 0045-30, 0045-40, 0045-50, 0045-60, 0045-70, 0045-80 & 0045-90)

$433.99

$

Usually ships in 2-12 days

0

0045-10

* TANK, Fuel

Note: (Included in Ref. No. 0045)

$

$

Not available

0045-20

Simplicity 1758282YP

NECK, Fuel Filter

Note: (Included in Ref. No. 0045)

$16.99

$

Usually ships in 2-12 days

0

0045-30

Simplicity 1758314YP

CAP, Fuel (Non Vented)

Note: (Included in Ref. No. 0045)

$35.99

$

Usually ships in 2-12 days

0

0045-40

Simplicity 799624

GROMMET

Note: (Included in Ref. No. 0045)

$8.99

$

In Stock, Qty 15

0

0045-50

Simplicity 7104638YP

VENT, Remote

Note: (Included in Ref. No. 0045)

$

$

Not available

0045-60

Simplicity 1758927YP

TUBE, Fuel Pickup

Note: (Included in Ref. No. 0045)

$8.99

$

In Stock, Qty 5

0

0045-70

Simplicity 1726400SM

BUSHING
(Superseded to 1654930SM)

Note: (Included in Ref. No. 0045)

$7.99

$

In Stock, Qty 20+

0

0045-80

Simplicity 1758928YP

GAUGE, Fuel

Note: (Included in Ref. No. 0045)

$96.99

$

Usually ships in 2-12 days

0

0045-90

Simplicity 1722337SM

GROMMET

Note: (Included in Ref. No. 0045)

$8.99

$

In Stock, only 1 left!

0

0050

Simplicity 197546GS

MOUNT, Vibration

$7.99

$

In Stock, only 2 left!

0

0060

Simplicity 1758076YP

FENDER, LH

$262.99

$

In Stock, only 1 left!

0

0070

Simplicity 1758239AYP

SUPPORT, Rear Fender

$40.99

$

Usually ships in 2-12 days

0

0080

Simplicity 1758889AYP

SUPPORT, Seat Spring

$61.99

$

Usually ships in 2-12 days

0

0090

Simplicity 1664847SM

SCREW, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0100

Simplicity 703158

NUT, Flange, 3/8-16

$3.49

$

Usually ships in 2-12 days

0

0110

Simplicity 707790

SCREW, Button Head, 3/8-16 X .88
(Superseded to 84004627)

$4.49

$

Usually ships in 2-12 days

0

0120

Simplicity 1960044SM

WASHER, Flat, 5/16

$4.49

$

In Stock, only 3 left!

0

0130

Simplicity 1759140AYP

STRAP, Fuel Tank

$35.99

$

Usually ships in 2-12 days

0

0140

Simplicity 1759405YP

BUMPER

$5.49

$

Usually ships in 2-12 days

0

0150-10

Simplicity 7700552X7YP

HOSE, Vapor
(Superseded to 7700552X12YP)

$5.49

$

In Stock, only 2 left!

0

0150-20

Simplicity 7700552X22YP

HOSE, Vapor

$8.99

$

Usually ships in 2-12 days

0

0150-30

Simplicity 5103062YP

FITTING, Tee

$10.99

$

In Stock, only 2 left!

0

0150-40

Simplicity 7700552X7YP

HOSE, Vapor
(Superseded to 7700552X12YP)

$5.49

$

In Stock, only 2 left!

0

0150-50

Simplicity 691035

FILTER, Fuel
(Superseded to 84001895)

$7.99

$

In Stock, Qty 20+

0
