SZT 150 (2691357-01) - Simplicity Courier 46"/117cm Zero-Turn Mower, 656cc Briggs & Stratton 46" Mower Deck - Housing, Arbor & Blade Group Parts Diagram

Courier 46"/117cm Zero-Turn Mower, 656cc Briggs & Stratton

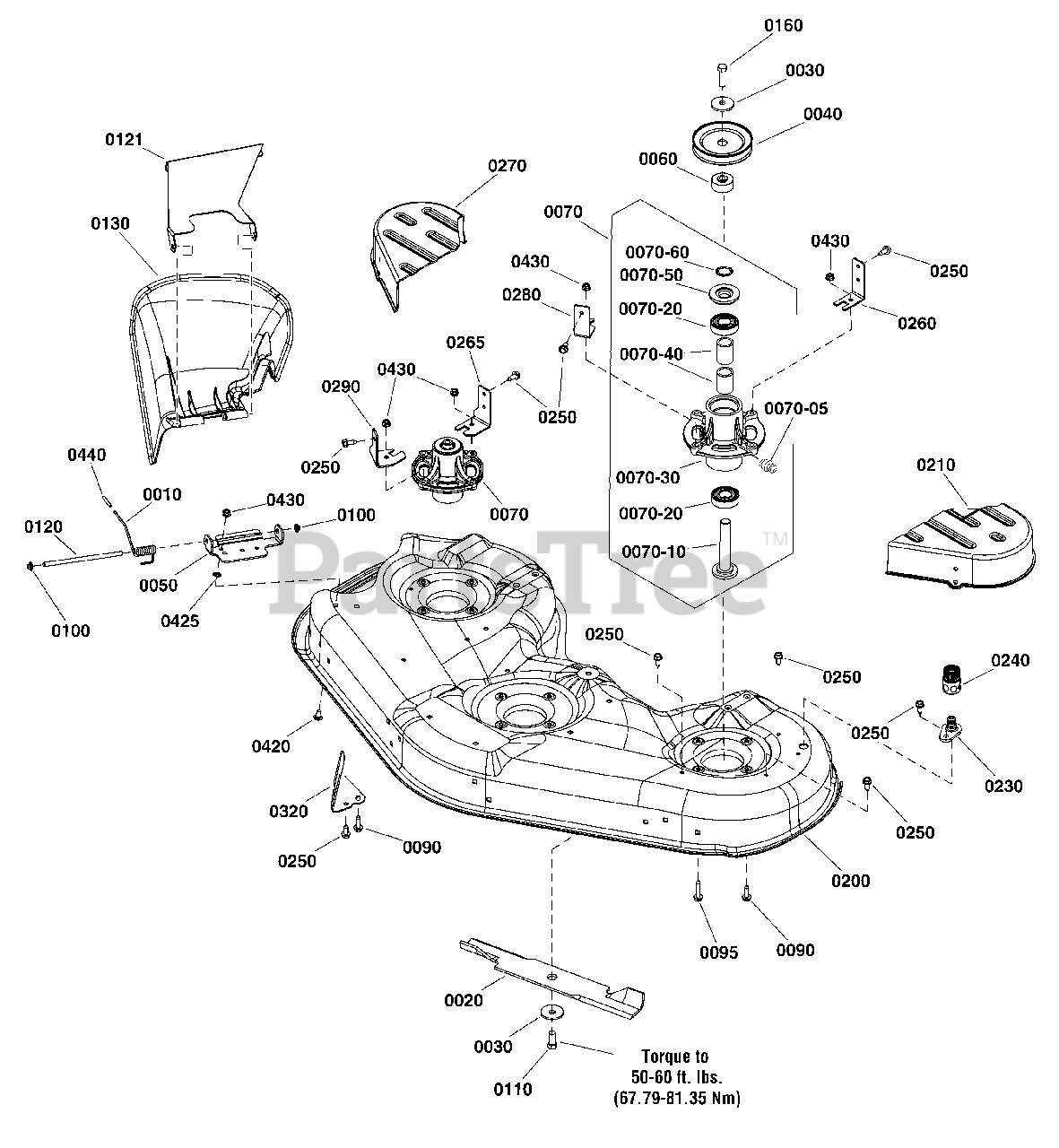

46" Mower Deck - Housing, Arbor & Blade Group Parts Diagram

  • Title

0010

Simplicity 1759042YP

SPRING - TORSION

$6.49

$

Usually ships in 2-12 days

0

0020

Simplicity 1739889AYP

BLADE, Mower

$27.99

$

In Stock, Qty 20+

0

0030

Simplicity 1656916SM

WASHER, Spring

$7.49

$

In Stock, Qty 20+

0

0040

Simplicity 1735686YP

PULLEY, Split, 4.6 OD

$19.99

$

In Stock, only 3 left!

0

0050

Simplicity 1754868AYP

BRACKET, Hinge, Retro

$17.99

$

Usually ships in 2-12 days

0

0060

Simplicity 1737457YP

SPACER, Pulley

$10.99

$

In Stock, only 1 left!

0

0070

Simplicity 7502226YP

SPINDLE ASSEMBLY
(Superseded to 84003175)

Note: (Includes Ref. Nos. 0070-05 through 0070 -60)

$100.99

$

In Stock, only 1 left!

0

0070-05

Simplicity 1704314SM

FITTING, Lube, 1/4
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0070-10

Simplicity 1760276YP

SHAFT, Spindle

$27.99

$

In Stock, only 2 left!

0

0070-20

Simplicity 1735399YP

BEARING, Ball, 20mm

$9.99

$

In Stock, Qty 20+

0

0070-30

Simplicity 1735573YP

HOUSING, w/Lube Fittting
(Superseded to 84003654)

$43.99

$

In Stock, Qty 10

0

0070-40

Simplicity 1735328YP

SPACER, Bearing

$6.49

$

In Stock, only 1 left!

0

0070-50

Simplicity 1735323YP

SHIELD, Arbor
(Superseded to 84003166)

$6.99

$

In Stock, only 3 left!

0

0070-60

Simplicity 1960766YP

RING, Self Locking

$4.49

$

In Stock, Qty 20+

0

0090

Simplicity 704146

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1

$3.99

$

In Stock, Qty 20+

0

0095

Simplicity 1930600SM

CAPSCREW, Hex Washer Head, Taptite, 5/16-18 x 1-1/2

$4.99

$

In Stock, Qty 19

0

0100

Simplicity 704028

PUSHNUT, 5/16

$5.49

$

In Stock, only 4 left!

0

0110

Simplicity 1920676SM

CAPSCREW, Hex Head, 7/16-14 X 1

$5.49

$

In Stock, Qty 15

0

0120

Simplicity 1759064YP

ROD, Deflector

$8.49

$

Usually ships in 2-12 days

0

0121

Simplicity 1758935AYP

BRACKET, Support

$58.99

$

In Stock, only 1 left!

0

0130

Simplicity 1687750YP

DEFLECTOR, Discharge, 46/52

$37.99

$

In Stock, Qty 20+

0

0160

Simplicity 1921212SM

CAPSCREW, Hex Head, 7/16-14 X 1 1/2

$

$

Not available

0200

Simplicity 1687912YP

KIT, Mower Deck w/Decals, 46"

$1937.99

$

Usually ships in 2-12 days

0

0210

Simplicity 1759289YP

COVER, Spindle, 46"/ 52" Mower, LH

$56.99

$

Usually ships in 2-12 days

0

0230

Simplicity 1756247YP

ADAPTER, Washout Port

$6.49

$

Usually ships in 2-12 days

0

0240

Simplicity 1756246YP

CONNECTOR, Washout Port

$15.99

$

Usually ships in 2-12 days

0

0250

Simplicity 1664847CAYP

SCREW, Hex Washer Head, Taptite, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0260

Simplicity 1759291AYP

BRACKET, Arbor Cover Mount, Rear, LH, BL

$11.99

$

In Stock, only 1 left!

0

0265

Simplicity 1759461AYP

BRACKET, Arbor Cover Mount, Rear, RH, BL

$12.99

$

In Stock, only 1 left!

0

0270

Simplicity 1759290YP

COVER, Spindle, 46"/52" Mower, RH

$56.99

$

Usually ships in 2-12 days

0

0280

Simplicity 1759292AYP

BRACKET, Arbor Cover Mount, Front, LH, BL

$11.99

$

Usually ships in 2-12 days

0

0290

Simplicity 1759293AYP

BRACKET, Arbor Cover Mount, Front, RH, BL

$12.99

$

In Stock, only 1 left!

0

0320

Simplicity 1737279BMYP

BAFFLE, Pinchoff

$16.99

$

In Stock, only 1 left!

0

0420

Simplicity 703447

BOLT, 5/16-18 X .625, Carriage, GR5, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0

0425

Simplicity 703297

RETAINER, 5/16 X 5/8

$3.99

$

In Stock, Qty 20+

0

0430

Simplicity 5025127SM

NUT, Hex Serrated Flange, 5/16-18,

$3.49

$

In Stock, only 3 left!

0

0440

Simplicity 5023489SM

CAP, Protector

$3.99

$

Usually ships in 2-12 days

0
