SZT 150 (2691357-00) - Simplicity Courier 46"/117cm Zero-Turn Mower, 656cc Briggs & Stratton 46" Mower Deck - Housing, Arbor & Blade Group Parts Diagram

Courier 46"/117cm Zero-Turn Mower, 656cc Briggs & Stratton

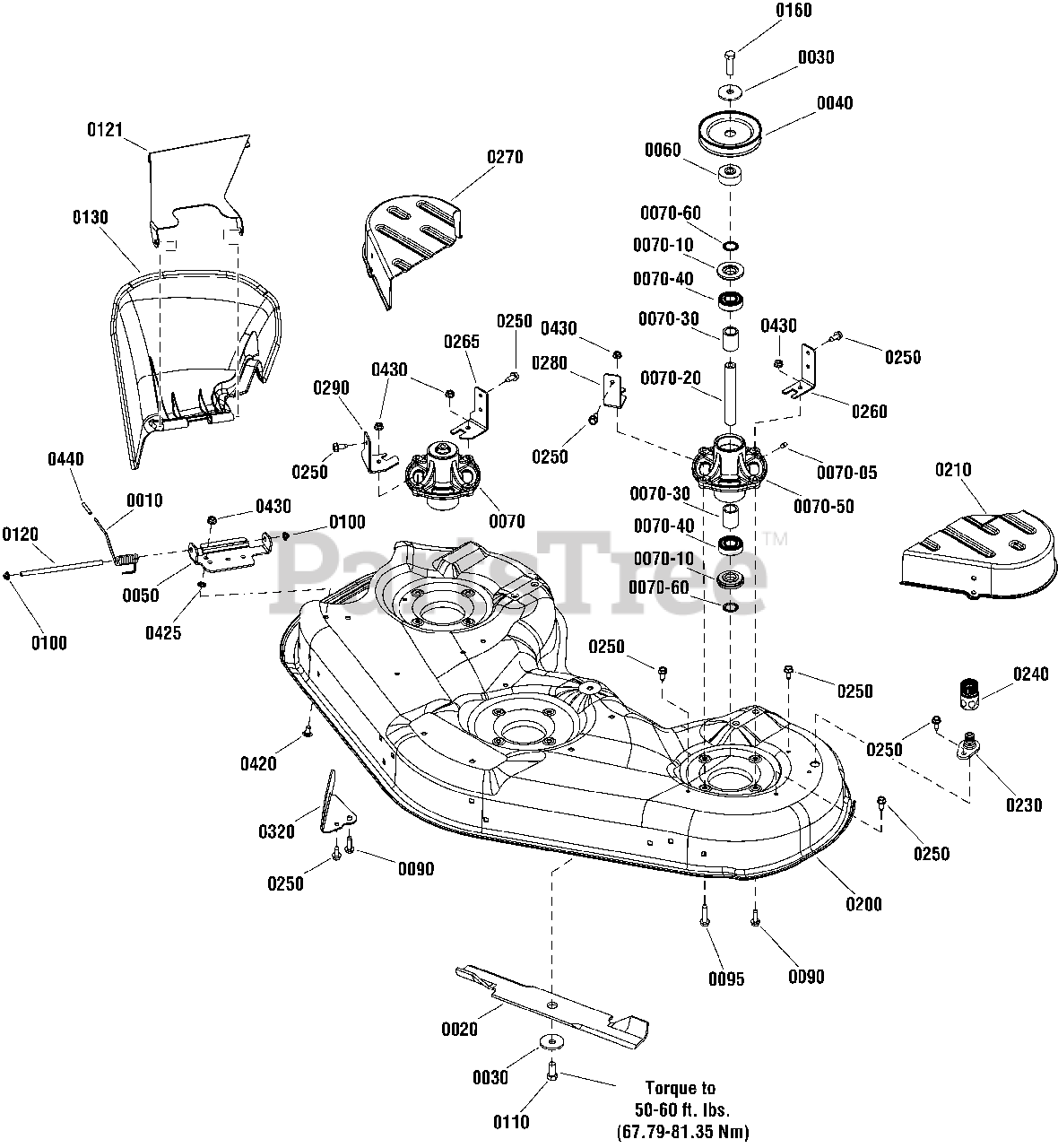

46" Mower Deck - Housing, Arbor & Blade Group Parts Diagram

  • Title

0010

Simplicity 1759042YP

SPRING, Torsion

$6.49

$

Usually ships in 2-12 days

0

0020

Simplicity 1739889AYP

BLADE, Mower, 16.125 LG, .75 Lift, .807 Hole

$27.99

$

In Stock, Qty 20+

0

0030

Simplicity 1656916SM

WASHER, .475 ID x 1.75 OD x .156 Thick Spring, Black

$7.49

$

In Stock, Qty 20+

0

0040

Simplicity 1735686YP

PULLEY, Split, 4.6 OD

$19.99

$

In Stock, only 3 left!

0

0050

Simplicity 1754868AYP

BRACKET, Hinge, Blk

$17.99

$

Usually ships in 2-12 days

0

0060

Simplicity 1737457YP

SPACER, .457 ID, 1.66 OD, Pulley, YZ

$10.99

$

In Stock, only 1 left!

0

0070

Simplicity 7600211YP

KIT, Aluminum Spindle Assembly
(Superseded to 84003175)

$100.99

$

In Stock, only 1 left!

0

0070-05

Simplicity 1704314SM

Fitting, Lube
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0070-10

Simplicity 1735323YP

SHIELD, Arbor, 2.050 OD
(Superseded to 84003166)

$6.99

$

In Stock, only 3 left!

0

0070-20

Simplicity 1735326YP

SHAFT, Spindle, 20mm DIA, 134.60mm LG
(Superseded to 1760276YP)

$27.99

$

In Stock, only 2 left!

0

0070-30

Simplicity 1735328YP

SPACER, Bearing, .812 ID, 1.25 OD, .442 Tall, PM

$6.49

$

In Stock, only 1 left!

0

0070-40

Simplicity 1735399YP

BEARING, Ball 20MM

$9.99

$

In Stock, Qty 20+

0

0070-50

Simplicity 1735573YP

HOUSING, Spindle, Cast Aluminum (Machined) w/Grease Fitting
(Superseded to 84003654)

$43.99

$

In Stock, Qty 10

0

0070-60

Simplicity 1960766YP

RING, Self Locking (For 20MM Shaft)

$4.49

$

In Stock, Qty 20+

0

0090

Simplicity 704146

SCREW, 5/16-18 X 1.0, Hex Washer Head Self-Tap, ZC/CL

$3.99

$

In Stock, Qty 20+

0

0095

Simplicity 1930600SM

SCREW, 5/16-18 x 1.5, Hex Washer Head Taptite, Blk

$4.99

$

In Stock, Qty 19

0

0100

Simplicity 704028

PUSHNUT, 5/16, Cap, Zinc/Clear

$5.49

$

In Stock, only 4 left!

0

0110

Simplicity 1920676SM

SCREW, 7/16-14 x 1 Hex Head Cap, GR 5, Black

$5.49

$

In Stock, Qty 15

0

0120

Simplicity 1759064

ROD, Deflector, 7.25" X .313 OD, 46"/52"

$

$

Not available

0121

Simplicity 1758935AYP

BRACKET, Support

$58.99

$

In Stock, only 1 left!

0

0130

Simplicity 1687750YP

DEFLECTOR, Discharge, 46/52

$37.99

$

In Stock, Qty 20+

0

0160

Simplicity 1921212SM

SCREW, 7/16-14X1.50, Hex Head, G5 Blk

$

$

Not available

0200

Simplicity 770084

KIT, Mower Housing - 46" ZT (Orange)
(Superseded to 1687912YP)

$1937.99

$

Usually ships in 2-12 days

0

0210

Simplicity 1759289YP

COVER, Spindle, 46"/52" Mower, LH

$56.99

$

Usually ships in 2-12 days

0

0230

Simplicity 1756247YP

ADAPTOR, Washout Port

$6.49

$

Usually ships in 2-12 days

0

0240

Simplicity 1756246YP

CONNECTOR, Washout Port

$15.99

$

Usually ships in 2-12 days

0

0250

Simplicity 1664847CAYP

SCREW, 16-18X0.750, Hex Washer Head Tap-Tite T5
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

0260

Simplicity 1759291AYP

BRACKET, Arbor Cover Mount, Rear, LH, BL

$11.99

$

In Stock, only 1 left!

0

0265

Simplicity 1759461AYP

BRACKET, Arbor Cover Mount, Rear, RH, BL

$12.99

$

In Stock, only 1 left!

0

0270

Simplicity 1759290YP

COVER, Spindle, 46"/52" Mower, RH

$56.99

$

Usually ships in 2-12 days

0

0280

Simplicity 1759292AYP

BRACKET, Arbor Cover Mount, Front, LH, BL

$11.99

$

Usually ships in 2-12 days

0

0290

Simplicity 1759293AYP

BRACKET, Arbor Cover Mount, Front, RH, BL

$12.99

$

In Stock, only 1 left!

0

0320

Simplicity 1737279BMYP

BAFFLE, Pinchoff

$16.99

$

In Stock, only 1 left!

0

0420

Simplicity 703447

BOLT, 5/16-18 X .625, Carriage, GR5, Zinc/Clear

$4.49

$

In Stock, Qty 20+

0

0425

Simplicity 703297

RETAINER, 5/16 X .625, Push Nut, GR 5, Zinc/Clear

$3.99

$

In Stock, Qty 20+

0

0430

Simplicity 5025127SM

NUT, 5/16-18, Hex Serated Flange (Small)

$3.49

$

In Stock, only 3 left!

0

0440

Simplicity 5023489SM

CAP, Protector, .120 ID

$3.99

$

Usually ships in 2-12 days

0
