SZT 110 (2691395-01) - Simplicity Courier 42"/107cm Zero-Turn Mower, 656cc Briggs & Stratton 42" Mower Deck Clutch & Support Group Parts Diagram

Courier 42"/107cm Zero-Turn Mower, 656cc Briggs & Stratton

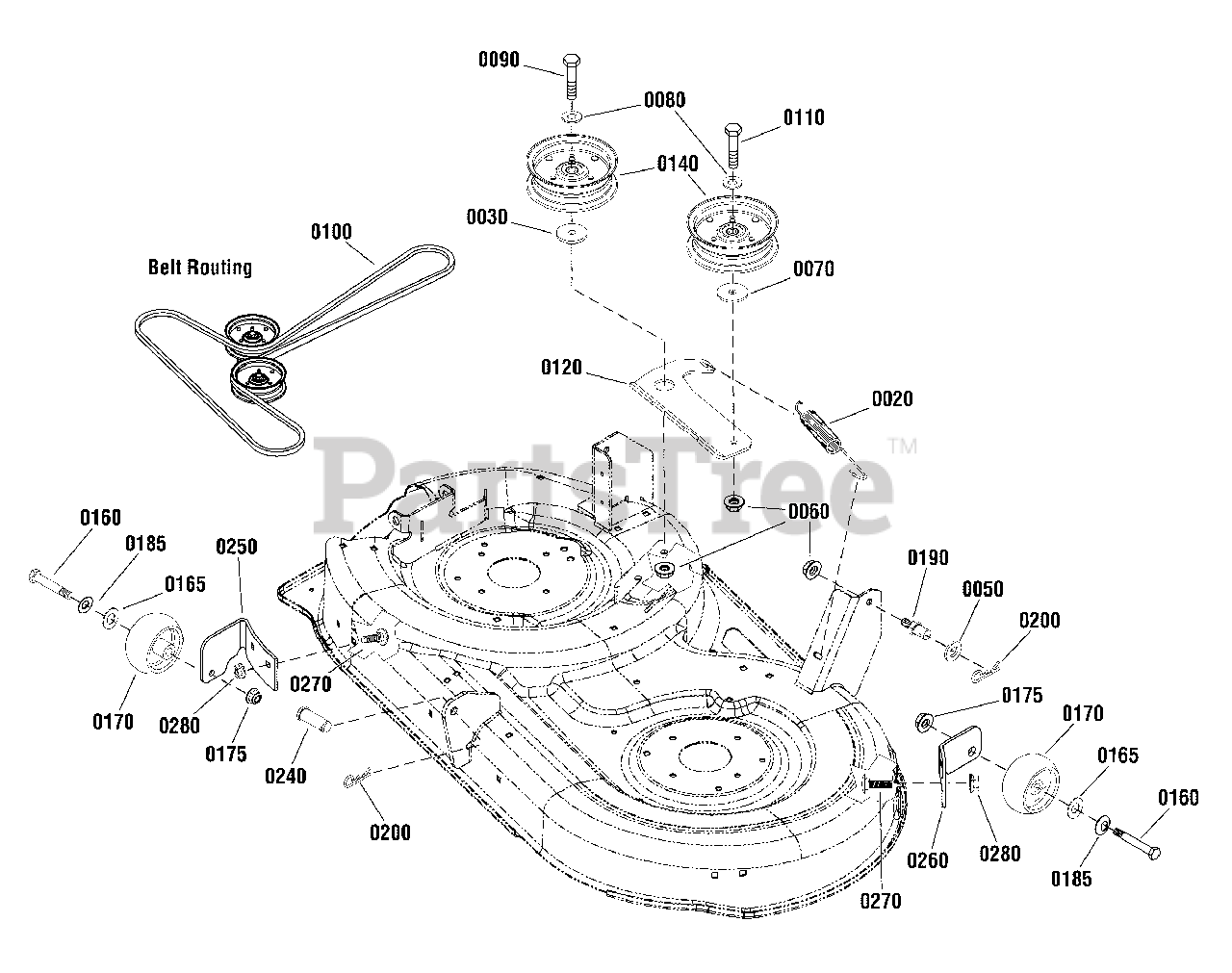

42" Mower Deck Clutch & Support Group Parts Diagram

  • Title

0020

Simplicity 1729620SM

SPRING, .98 OD X 7.52" LG, .11 Wire, Extension, Blk

$8.49

$

Usually ships in 2-12 days

0

0030

Simplicity 706128

SPACER, .390 ID, 1.750 OD, 1.125 OD Step, .380 Thk, PM

$6.99

$

In Stock, only 4 left!

0

0050

Simplicity 703853

WASHER, 0.50 (0.51 ID X 1.00 OD X .10 THK) Black

$4.99

$

In Stock, Qty 20+

0

0060

Simplicity 5025394SM

NUT, 3/8-16, Hex Flange Nylock

$4.49

$

In Stock, Qty 20+

0

0070

Simplicity 5025305SM

WASHER, .41 ID X 1.75 OD X .14 Thk

$3.99

$

In Stock, only 2 left!

0

0080

Simplicity 703878

WASHER, 13/32 x 7/8 x 5/64, Flat, Zinc/Clear

$3.99

$

In Stock, Qty 20+

0

0090

Simplicity 703873

BOLT, 3/8-16 X 2-1/2", G5, CZ

$4.49

$

In Stock, only 3 left!

0

0100

Simplicity 1758101YP

BELT, 113.0 Effective Length

$64.99

$

Usually ships in 2-12 days

0

0110

Simplicity 703872

SCREW, 3/8-16 X 2.250, Hex Head Cap, GR 5, Zinc/Clear

$4.99

$

In Stock, Qty 20+

0

0120

Simplicity 1758023AYP

ARM, Idler - 42" ZT (Black)

$27.99

$

Usually ships in 2-12 days

0

0140

Simplicity 1757894YP

PULLEY, Flat Idler, 4.5", 38" ID BB

$42.99

$

In Stock, Qty 18

0

0160

Simplicity 2108765SM

BOLT, Wheel, 3/8-16 x 2-3/4, 3/4" Thread

$6.49

$

In Stock, Qty 20+

0

0165

Simplicity 5025158SM

WASHER, 1/2" SAE

$3.99

$

In Stock, Qty 13

0

0170

Simplicity 1714760SM

WHEEL, 2.00" Wide, 3.88" Dia, 0.531" ID, Poly

$6.49

$

In Stock, Qty 20+

0

0175

Simplicity 5025394SM

NUT, 3/8-16, Hex Flange Nylock

$4.49

$

In Stock, Qty 20+

0

0185

Simplicity 0020X3MA

WASHER, .525" ID, .98" OD, Spring

$4.49

$

In Stock, only 1 left!

0

0190

Simplicity 704054

PIN, 3/8-16 X .50,Threaded Shoulder, Zinc/Clear

$7.49

$

In Stock, Qty 20+

0

0200

Simplicity 703300

PIN, Hair, 3/32 x 1-5/8, GR5, Zinc/Clear

$3.99

$

In Stock, Qty 20+

0

0240

Simplicity 5025479YP

CLEVIS PIN, 1/2 X 1.36, Clevis

$3.99

$

In Stock, only 2 left!

0

0250

Simplicity 1731402ASM

BRACKET, Gauge Wheel Support, RH, Black

$14.99

$

Usually ships in 2-12 days

0

0260

Simplicity 1731403ASM

BRACKET, Gauge Wheel, Rear, LH, Black

$14.99

$

In Stock, only 1 left!

0

0270

Simplicity 703185

BOLT, 5/16-18X3/4 GR5, Carriage, YZ

$3.49

$

In Stock, Qty 16

0

0280

Simplicity 5025127SM

NUT, 5/16-18, Hex Serated Flange (Small)

$3.49

$

In Stock, Qty 5

0
