SZT 110 (2691395-00) - Simplicity Courier 42"/107cm Zero-Turn Mower, 656cc Briggs & Stratton Seat Group W/Armrests Parts Diagram

Courier 42"/107cm Zero-Turn Mower, 656cc Briggs & Stratton

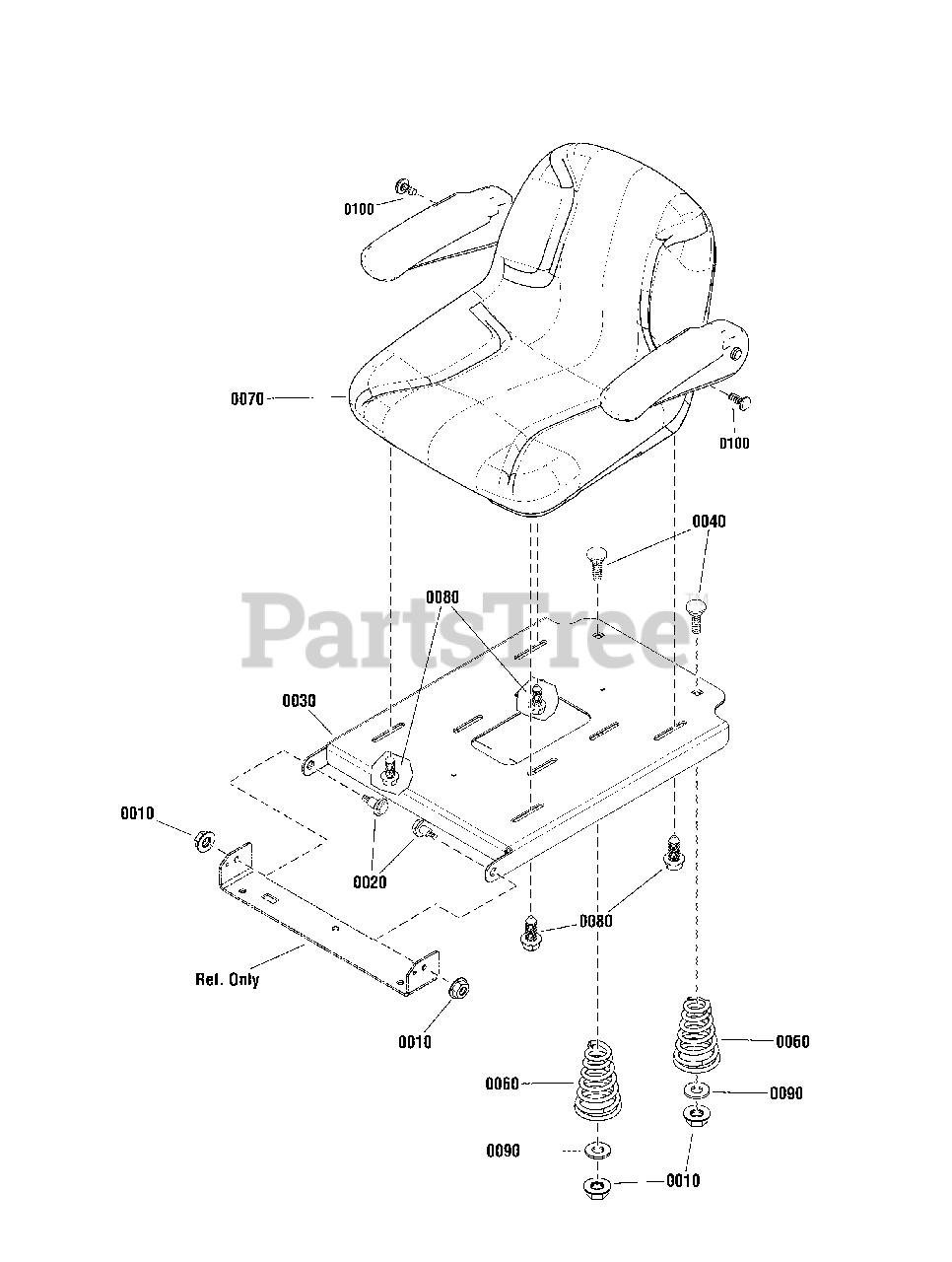

Seat Group W/Armrests Parts Diagram

  • Title
0010

Simplicity 703115

NUT, 5/16-18, Flange Nylock, GR F, Zinc/Clear

$3.49

$

In Stock, Qty 20+

0

0020

Simplicity 1752802YP

BOLT, Shoulder, 5/16-18 x 1.03LG, .50SH .19L

$5.99

$

Usually ships in 2-12 days

0

0030

Simplicity 1757799CYP

SLIDE, Seat (Orange)

$109.99

$

Usually ships in 2-12 days

0

0040

Simplicity 703483

BOLT, 5/16-18 X 1 Carriage, GR5, Zinc/Clear

$3.99

$

In Stock, only 1 left!

0

0060

Simplicity 1717051SM

SPRING, Seat Conical .94/1.76 MD, 2.95 LG, .177 Wire

$13.99

$

In Stock, Qty 20+

0

0070

Simplicity 1687857

KIT, Seat, 15" Fancy Vinyl, W/Armrests
(Superseded to 84003333)

$463.99

$

Usually ships in 2-12 days

0

0080

Simplicity 770697

SCREW, 5/16-18X1.0, Hex Flanged Whiz Lock

$

$

Not available

0090

Simplicity 704128

WASHER, .406X1.0X.134 Flat, Zinc/Clear

$4.99

$

In Stock, Qty 9

0

0100

Simplicity 1761409YP

KNOB, Adjuster

Note: (Used with seats w/armrests)

$18.99

$

Usually ships in 2-12 days

0
