SZT 110 (2691395-00) - Simplicity Courier 42"/107cm Zero-Turn Mower, 656cc Briggs & Stratton 42" Mower Deck - Housing, Arbors & Blade Group Parts Diagram

Courier 42"/107cm Zero-Turn Mower, 656cc Briggs & Stratton

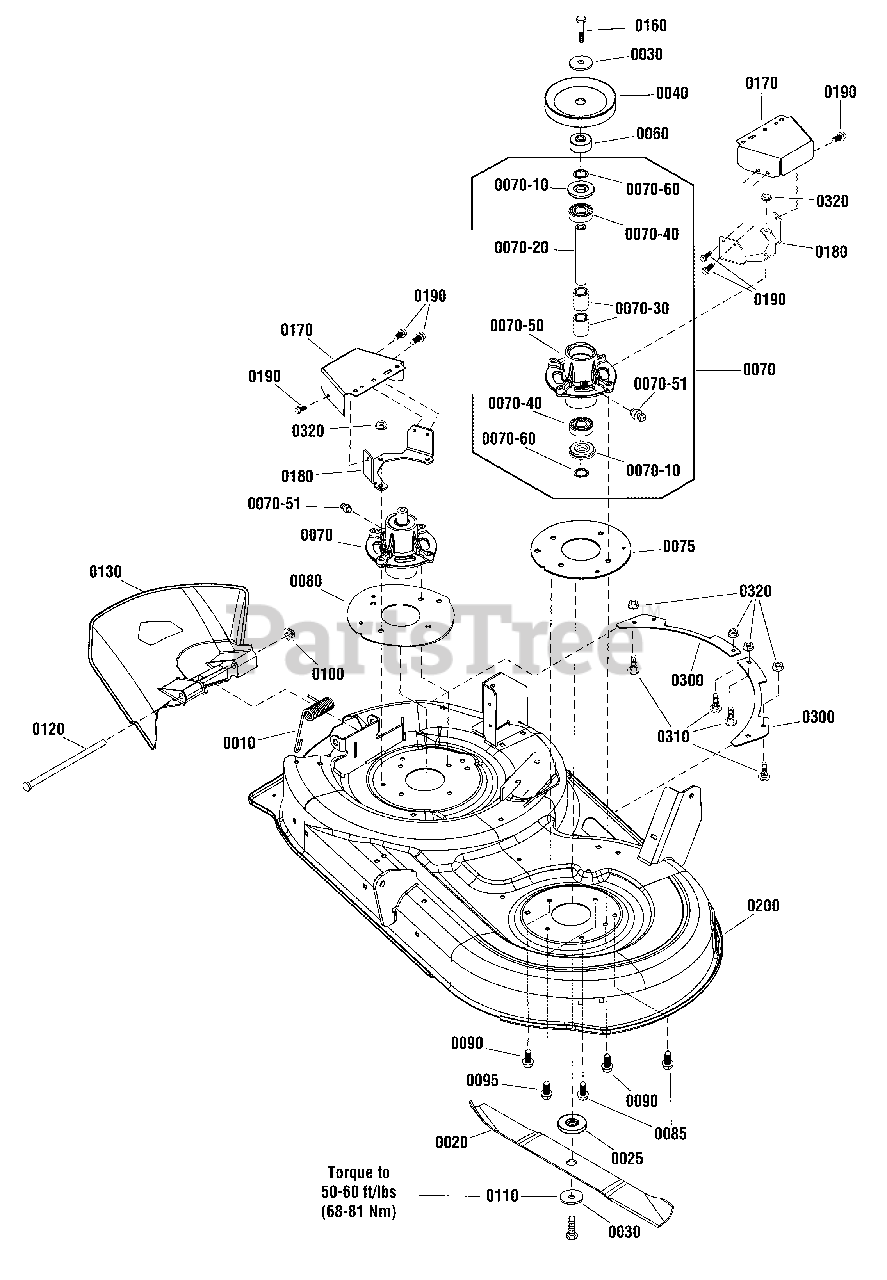

42" Mower Deck - Housing, Arbors & Blade Group Parts Diagram

  • Title

0010

Simplicity 7035813SM

SPRING, Torsion, Side Discharge

$24.99

$

In Stock, only 1 left!

0

0020

Simplicity 1752100AYP

BLADE, 21.28" For 42" Mower (Export)

$29.99

$

Usually ships in 2-12 days

0

0025

Simplicity 1755892YP

SPACER, Blade Adapter

$36.99

$

Usually ships in 2-12 days

0

0030

Simplicity 1656916SM

WASHER, Spring

$7.49

$

In Stock, Qty 20+

0

0040

Simplicity 1737835YP

PULLEY, 4.50

$20.99

$

In Stock, only 1 left!

0

0060

Simplicity 1760367YP

SPACER, Pulley

$15.99

$

Usually ships in 2-12 days

0

0070

Simplicity 7600211YP

KIT, Aluminum Spindle Assembly
(Superseded to 84003175)

$100.99

$

In Stock, only 1 left!

0

0070-10

Simplicity 1735323YP

SHIELD, Arbor
(Superseded to 84003166)

$6.99

$

In Stock, only 3 left!

0

0070-20

Simplicity 1735326YP

SHAFT, Spindle
(Superseded to 1760276YP)

$27.99

$

In Stock, only 2 left!

0

0070-30

Simplicity 1735328YP

SPACER, Bearing

$6.49

$

In Stock, only 1 left!

0

0070-40

Simplicity 1735399YP

BEARING, Ball 20mm

$9.99

$

In Stock, Qty 20+

0

0070-50

Simplicity 1735573YP

HOUSING, w/Lube Fittting
(Superseded to 84003654)

$43.99

$

In Stock, Qty 11

0

0070-51

Simplicity 1704314SM

FITTING, Lube, 1/4
(Superseded to 703907)

$4.99

$

In Stock, Qty 20+

0

0070-60

Simplicity 1960766YP

RING, Self Locking

$4.49

$

In Stock, Qty 20+

0

0075

Simplicity 1750458BMYP

PLATE, Spindle, LH

$28.99

$

Usually ships in 2-12 days

0

0080

Simplicity 1750457BMYP

PLATE, Spindle, RH

$28.99

$

In Stock, only 1 left!

0

0085

Simplicity 703949

SCREW, Washer Head, 5/16-18 X 5/8

$3.99

$

In Stock, Qty 5

0

0090

Simplicity 704146

SCREW, Hex Washer Head, Taptite, 5/16-18 x 1

$3.99

$

In Stock, Qty 20+

0

0095

Simplicity 704318

SCREW, 5/16-18 x 1-1/2 Hex Washer Self-Tap, YZ

$4.49

$

In Stock, only 3 left!

0

0100

Simplicity 703179

PUSHNUT, 1/2

$3.49

$

In Stock, Qty 20+

0

0110

Simplicity 703579

CAPSCREW, Hex Head, 7/16-14 x 1-1/4, GR8

$4.49

$

In Stock, Qty 20+

0

0120

Simplicity 7104640YP

ROD, Deflector

$28.99

$

In Stock, only 1 left!

0

0130

Simplicity 7104733YP

DEFLECTOR

$87.99

$

In Stock, Qty 20+

0

0160

Simplicity 1927531SM

CAPSCREW, hex Head, 7/16-14 x 2, G8, Black

$5.49

$

In Stock, Qty 5

0

0170

Simplicity 1760478AYP

COVER, Spindle

$35.99

$

Usually ships in 2-12 days

0

0180

Simplicity 1752065BMYP

BRACKET, Guard Mount

$23.99

$

Usually ships in 2-12 days

0

0190

Simplicity 703054

SCREW, 1/4-20 x 5/8, Hex Washer Head, Thread Roll, Zinc/Clear

$4.49

$

In Stock, Qty 9

0

0200

Simplicity 1687926YP

WELDMENT, 42" Mower Shell W/Decals, ZT (Orange)

$1709.99

$

Usually ships in 2-12 days

0

0300

Simplicity 092426E701MA

PLATE, Rear

$10.99

$

In Stock, only 1 left!

0

0310

Simplicity 703185

BOLT, Carriage, 5/16-18 X 3/4, GR5

$3.49

$

In Stock, Qty 20+

0

0320

Simplicity 5025127SM

NUT, 5/16-18, Hex Serrated Flange (Small)

$3.49

$

In Stock, only 3 left!

0
