SZT 110 (2691395-00) - Simplicity Courier 42"/107cm Zero-Turn Mower, 656cc Briggs & Stratton 42" HOZ Guarding Group Parts Diagram

Courier 42"/107cm Zero-Turn Mower, 656cc Briggs & Stratton

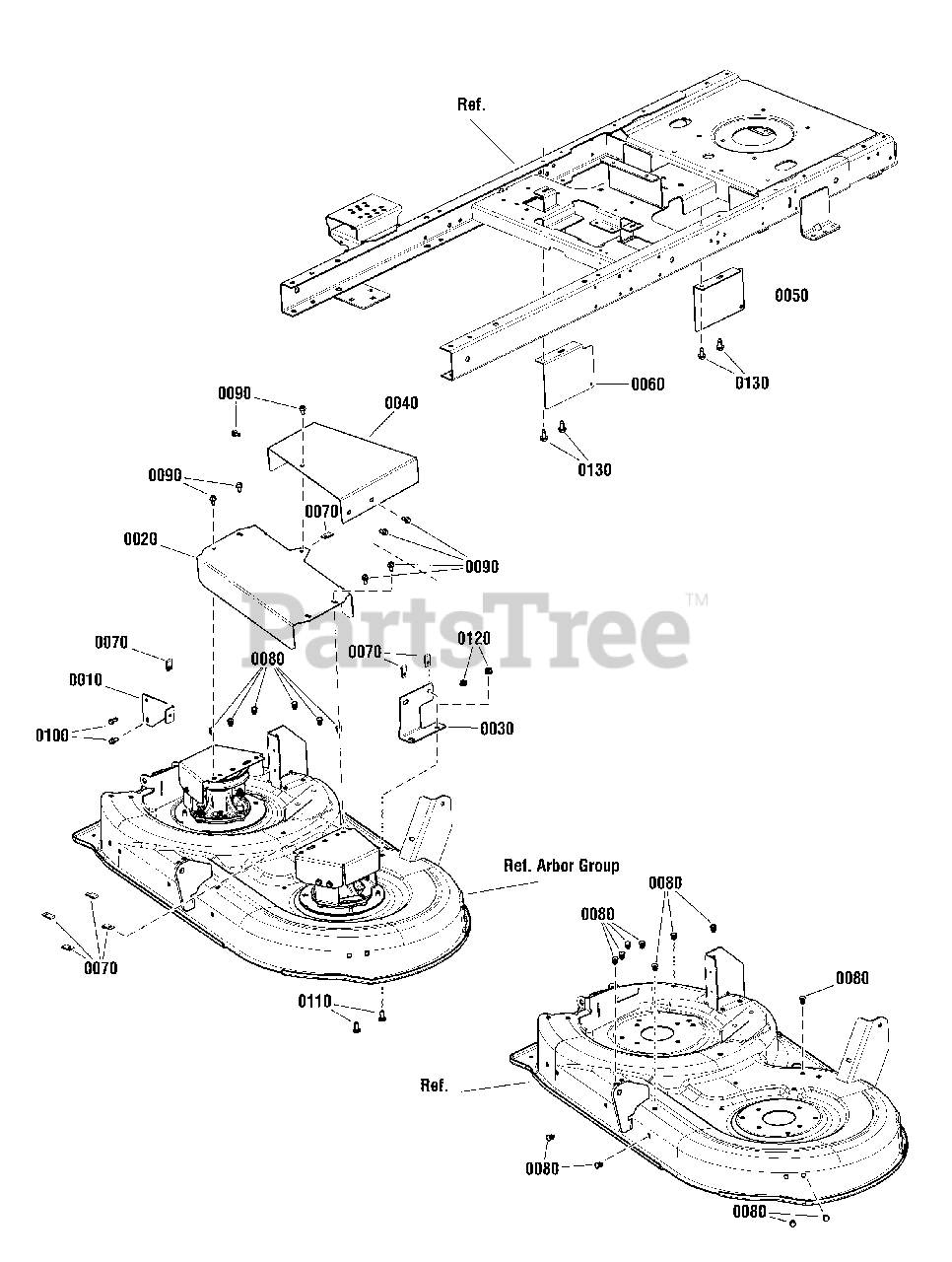

42" HOZ Guarding Group Parts Diagram

  • Title

0010

Simplicity 1760485A

SUPPORT, Rear, 42" - Black

$

$

Currently unavailable

0020

Simplicity 1760482A

PULLEY COVER, 42" Deck - Black

$

$

Currently unavailable

0030

Simplicity 1760484A

SUPPORT, Deck, 42" - Black

$

$

Currently unavailable

0040

Simplicity 1760483A

IDLER COVER, 42" - Black

$

$

Currently unavailable

0050

Simplicity 1760579A

GUARD, Belt, 42" Stamp, LH - Black

$

$

Currently unavailable

0060

Simplicity 1760580A

GUARD, Belt, 42" Stamp, RH - Black

$

$

Currently unavailable

0070

Simplicity 1926018SM

NUT, Speed, 1/4C, U Type/070/.140 Blk

$4.49

$

In Stock, Qty 12

0

0080

Simplicity 7046780SM

PLUG, Hole, .44" OD, Polyethylene

$4.99

$

Usually ships in 2-12 days

0

0090

Simplicity 1931646SM

SCREW, 1/4-20X0.50, Hex WZ Lock Flanged, Zinc/Clear

$4.49

$

In Stock, only 2 left!

0

0100

Simplicity 703054

SCREW, 1/4-20 x 5/8, Hex Washer Head, Thread Roll, Zinc/Clear

$4.49

$

In Stock, Qty 5

0

0110

Simplicity 703185

BOLT, 5/16-18X3/4 GR5, Carriage, YZ

$3.49

$

In Stock, Qty 16

0

0120

Simplicity 703409

NUT, 5/16-18, Serrated Lock Flange, GR5

$5.49

$

In Stock, Qty 20+

0

0130

Simplicity 703228

SCREW, 5/16-18 X .750, Washer Head Taptite

$4.49

$

In Stock, Qty 20+

0
