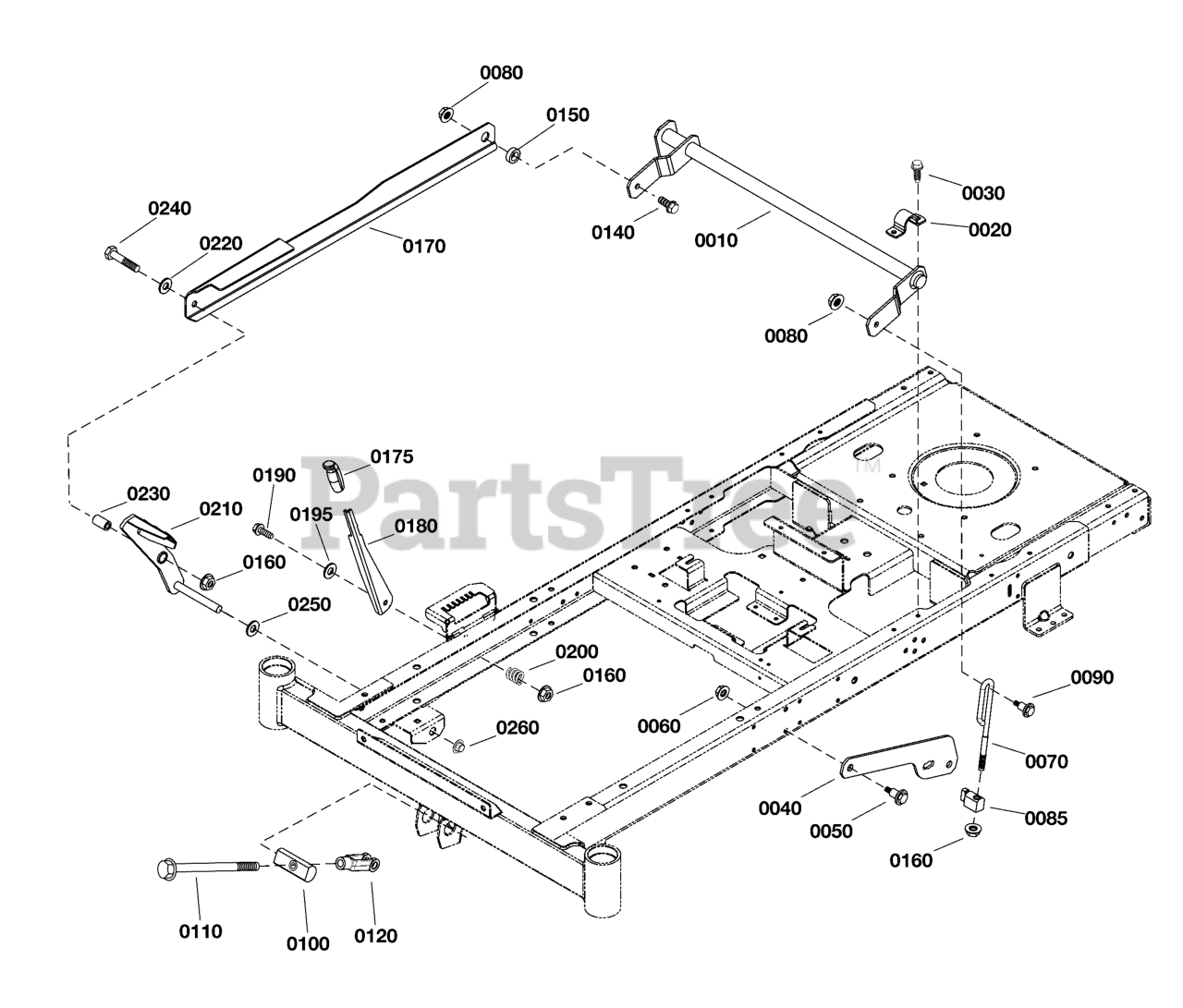

SZT 105 (2692021-00) - Simplicity Courier 91cm Zero-Turn Mower, 7200 series Briggs & Stratton Lift Group Parts Diagram

Courier 91cm Zero-Turn Mower, 7200 series Briggs & Stratton

Lift Group Parts Diagram

  • Title

0010

Simplicity 84001704

SHAFT, Lift

$100.99

$

Usually ships in 2-12 days

0

0020

Simplicity 1761690HYP

STRAP, ROCKER SHAFT

$

$

Not available

0030

Simplicity 703949

SCREW, 5/16-18.625

$3.99

$

In Stock, Qty 6

0

0040

Simplicity 1757953AYP

ARM, Lift

$34.99

$

In Stock, only 1 left!

0

0050

Simplicity 1732426SM

BOLT-SHLDR 5/16-18 0.

$4.49

$

In Stock, only 1 left!

0

0060

Simplicity 703115

NUT

$3.49

$

In Stock, Qty 10

0

0070

Simplicity 1757936YP

ROD, Lift
(Superseded to 1688086)

$21.99

$

Usually ships in 2-12 days

0

0080

Simplicity 703158

NUT, Hex Flange, 3/8-16

$3.49

$

In Stock, Qty 9

0

0085

Simplicity 1731894SM

TRUNNION

$9.99

$

In Stock, Qty 13

0

0090

Simplicity 009X51MA

BOLT-SHD.38-16X.499D

$4.99

$

In Stock, only 2 left!

0

0100

Simplicity 1757955YP

PIVOT

$13.99

$

In Stock, only 1 left!

0

0110

Simplicity 1757954YP

ROD

$18.99

$

In Stock, only 2 left!

0

0120

Simplicity 5023174SM

CLEVIS, 1/2-20, STEEL

$16.99

$

In Stock, only 1 left!

0

0140

Simplicity 704038

SCREW

$5.99

$

In Stock, only 3 left!

0

0150

Simplicity 1663752SM

SPACER, 25/64 x 5/8 x 3/16

$5.99

$

In Stock, only 2 left!

0

0160

Simplicity 703893

NUT, CNTR LCK, 3/8-16

$6.99

$

In Stock, Qty 20+

0

0170

Simplicity 84001705

LINK, Lift

$52.99

$

Usually ships in 2-12 days

0

0175

Simplicity 84001706

GRIP

$7.99

$

Usually ships in 2-12 days

0

0180

Simplicity 84001707

LEVER, Height Adjust

$20.99

$

Usually ships in 2-12 days

0

0190

Simplicity 770137

BOLT

$4.49

$

In Stock, Qty 8

0

0195

Simplicity 704128

WASHER

$4.99

$

In Stock, Qty 13

0

0200

Simplicity 2162085SM

SPRING, Compression

$6.99

$

In Stock, Qty 8

0

0210

Simplicity 84001708

PEDAL

$77.99

$

Usually ships in 2-12 days

0

0220

Simplicity 703878

WASHER, FLAT

$3.99

$

In Stock, Qty 20+

0

0230

Simplicity 1756612YP

BUSHING, DIFF. LOCK

$5.49

$

Usually ships in 2-12 days

0

0240

Simplicity 703589

CAPSCREW, 3/8-16X2

$4.49

$

In Stock, Qty 10

0

0250

Simplicity 703580

WASHER, 5/8

$4.49

$

In Stock, Qty 20+

0

0260

Simplicity 771009

PUSHNUT, 5/8

$3.99

$

Usually ships in 2-12 days

0
