SZT 105 (2692021-00) - Simplicity Courier 91cm Zero-Turn Mower, 7200 series Briggs & Stratton 36" Side Discharge Parts Diagram

Courier 91cm Zero-Turn Mower, 7200 series Briggs & Stratton

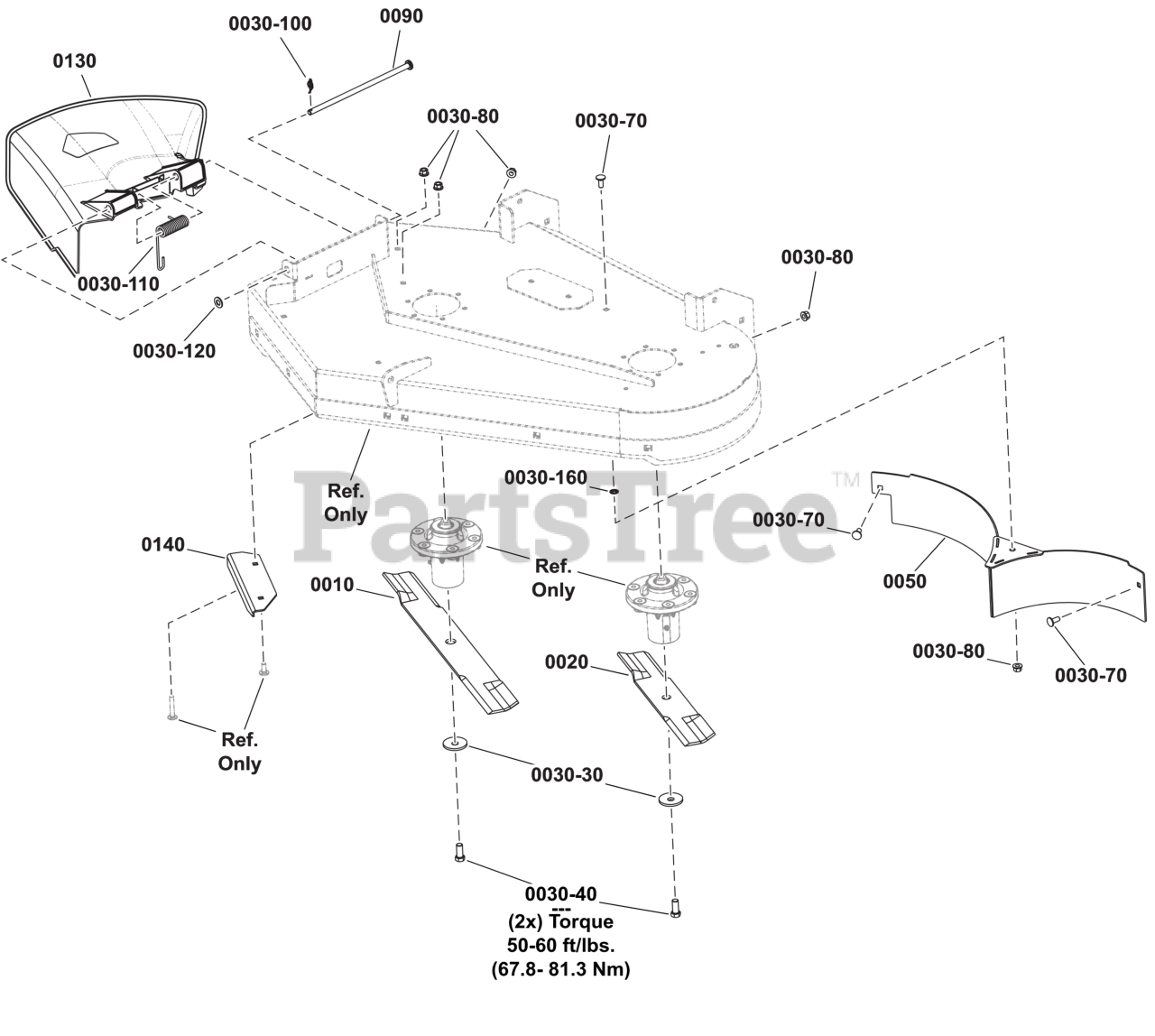

36" Side Discharge Parts Diagram

  • Title

0010

Simplicity 84004591

BLADE, MOWER, 22.24 LG (LOW LIFT)

$

$

Currently unavailable

0020

Simplicity 84004590

BLADE, MOWER, 14.42 LG (LOW LIFT)

$

$

Currently unavailable

0030-30

Simplicity 1656916SM

WASHER, SPRING 0.475I

$7.49

$

In Stock, Qty 20+

0

0030-40

Simplicity 1920676SM

CAPSCREW, Hex Head, 7/16-14 X 1

$5.49

$

In Stock, Qty 20+

0

0030-70

Simplicity 703185

BOLT, Round Head, Short Square Neck

$3.49

$

In Stock, Qty 20+

0

0030-80

Simplicity 703115

NUT

$3.49

$

In Stock, Qty 10

0

0030-100

Simplicity 703355

COTTER PIN, 3/8

$3.99

$

In Stock, Qty 14

0

0030-110

Simplicity 7035813SM

SPRING, TORSION, SIDE

$24.99

$

In Stock, only 1 left!

0

0030-120

Simplicity 5025156SM

WASHER, Flat, 3/8
(Superseded to 703590)

$3.99

$

In Stock, Qty 20+

0

0030-160

Simplicity 703297

RETAINER, GR5, 5/16

$3.99

$

In Stock, Qty 14

0

0050

Simplicity 84008240

WELDMENT, REAR BAFFLE, HIGH, 36CC, BLK

$170.99

$

Usually ships in 2-12 days

0

0090

Simplicity 5106448FS

ROD

$10.99

$

Usually ships in 2-12 days

0

0130

Simplicity 7104733YP

CHUTE, SIDE DISCHARGE

$87.99

$

In Stock, only 2 left!

0

0140

Simplicity 84002212

BAFFLE, Front, Discharge

$13.99

$

Usually ships in 2-12 days

0
