SZL61H-26KT - Scag Liberty Z 61" Zero-Turn Mower, 26hp Kohler (SN: V2600001 - V2699999) 61H DRIVE SYSTEM COMPONENTS - HYDRO-GEAR AXLES Parts Diagram

Liberty Z 61" Zero-Turn Mower, 26hp Kohler

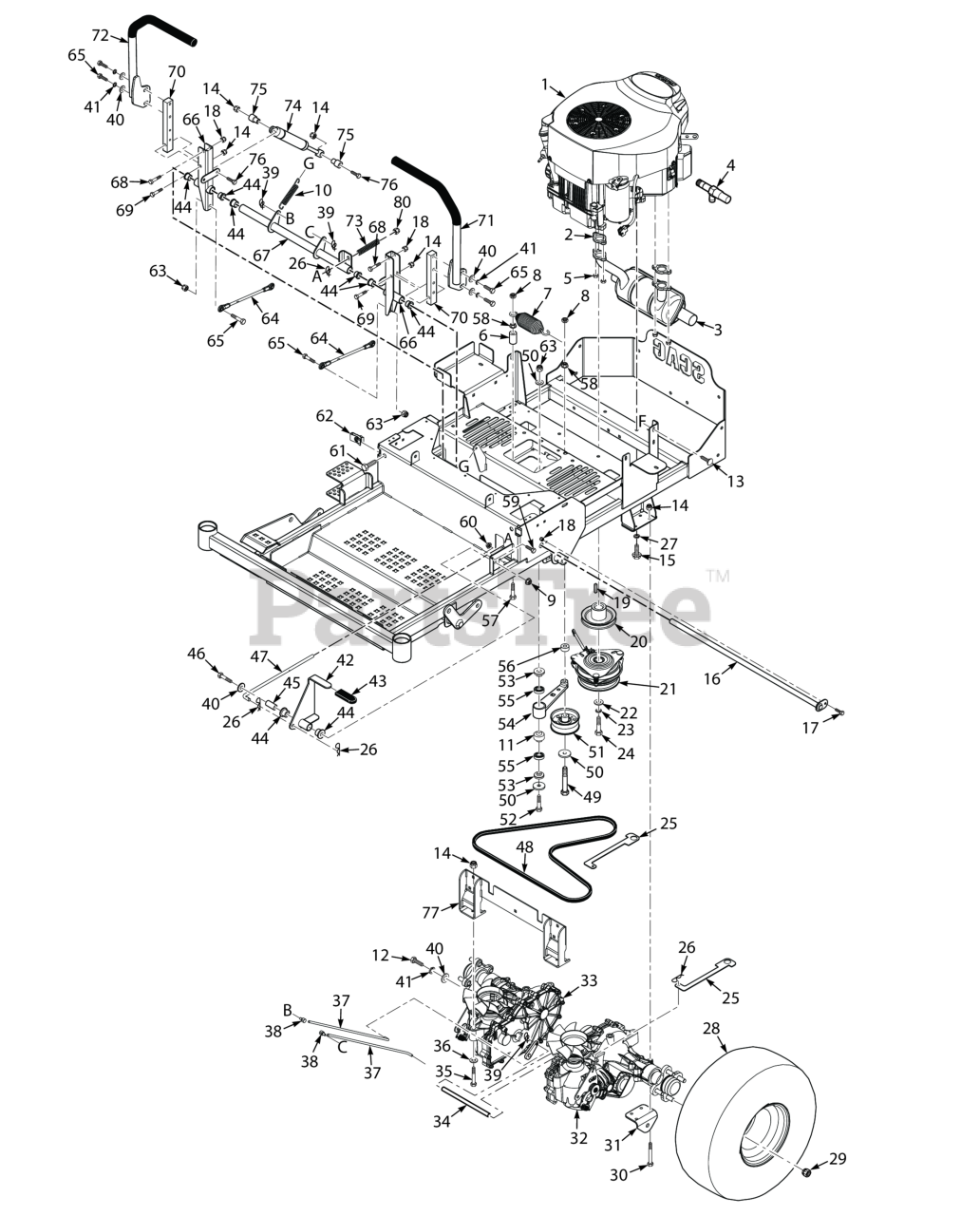

61H DRIVE SYSTEM COMPONENTS - HYDRO-GEAR AXLES Parts Diagram

  • Title

1

Scag 487205

Engine, Briggs & Stratton PXi2500

Note: Available through individual engine manufacturer.

$

$

Currently unavailable

Scag 486809

Engine, Kawasaki - FR730V

Note: Available through individual engine manufacturer.

$

$

Currently unavailable

Scag 486021

Engine, Kohler - 26KT

Note: Available through individual engine manufacturer.

$

$

Currently unavailable

Scag 487173

Engine, Scag - 27SR

$

$

Not available

2

Gasket, Exhaust

Note: Available through individual engine manufacturer.

$

$

Not available

3

Scag 485225

Muffler, Kawasaki FR651V & FR691V

$97.99

$

Usually ships in 2-12 days

0

Scag 485336

Muffler, Kohler KT

$98.99

$

In Stock, only 3 left!

0

Scag 487151

Muffler, Briggs & Stratton PXi

$125.99

$

Usually ships in 0 days

0

Scag 487170

Muffler, Scag 27SR

$124.99

$

Usually ships in 2-12 days

0

4

Oil Drain, Kawasaki

Note: Available through individual engine manufacturer.

$

$

Not available

Scag 482510

Extension, Oil Drain 2.3" - Kawasaki

$37.99

$

Usually ships in 2-12 days

0

5

Scag 04025-04

Nut, M8 x 1.25 Hex Special

$3.49

$

Usually ships in 2-12 days

0

6

Scag 43674

Spacer, Idler Pulley - SFZ52

$2.49

$

In Stock, only 2 left!

0

7

Scag 483112

Spring, Transmission Drive

$14.99

$

In Stock, only 1 left!

0

8

Scag 04021-05

Bolt, Hex Head 3/8-16 x 1" Ser. Flg.

$0.99

$

In Stock, Qty 20+

0

9

Scag 04117-02

Nut, Flange Elastic Stop Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

10

Scag 483600

Spring, Deck Latch

$15.99

$

In Stock, only 2 left!

0

11

Scag 431073

Spacer, Bearing

$33.99

$

Usually ships in 2-12 days

0

12

Scag 04001-46

Bolt, Hex Head 3/8-16 x 2-1/4" - 61"

$0.99

$

In Stock, Qty 20+

0

13

Scag 04003-02

Serr. Fl. Hex Head CPSCR, 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

14

Scag 04021-10

HEX NUT, ELASTIC STOP LOCK, 5/16-18

$0.99

$

In Stock, Qty 20+

0

15

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FT & FT-EFI

$0.99

$

In Stock, Qty 14

0

16

Scag 452620

Shaft Weldment, Control Arm

$46.99

$

Usually ships in 2-12 days

0

17

Scag 04001-06

BOLT, HEX HEAD, 1/4-20 X 5/8

$0.99

$

In Stock, only 3 left!

0

18

Scag 04021-08

HEX, NUT, ELASTIC STOP LOCK, 1/4-20

$0.99

$

In Stock, Qty 10

0

19

Scag 04063-42

Key, 1/4 x 1/4 x 3" (61H)

$1.99

$

Usually ships in 2-12 days

0

20

Scag 486326

Pulley, 4-1/2" - 1.125" Bore (SZL-61)

$48.99

$

Usually ships in 2-12 days

0

21

Scag 462228

Electric Clutch Assembly - SFZ52 & SFZ61

$392.99

$

Usually ships in 2-12 days

0

22

Scag 04041-28

Flatwasher, 7/16-.469 x 1.75 x .25 (48, 52)

$2.99

$

In Stock, Qty 13

0

23

Scag 04030-05

Lockwasher, 7/16� Spring

$0.99

$

In Stock, Qty 8

0

24

Scag 04102-12

Bolt, Hex Head 7/16-20 x 3¼" w/Patch

$3.49

$

Usually ships in 2-12 days

0

25

Scag 426592

Lever, Dump Valve

$9.49

$

Usually ships in 2-12 days

0

26

Scag 04062-02

HAIR PIN, .08 DIAMETER X 1-3/16"

$0.99

$

In Stock, Qty 20+

0

27

Scag 04030-04

Lockwasher, 3/8" Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV

$0.99

$

In Stock, Qty 8

0

Scag 04031-03

Lockwasher, 5/16" Ext. Tooth (Kohler x1)

$0.99

$

Usually ships in 2-12 days

0

28

Scag 485948

WHEEL ASSY, 20 X 10-10

$257.99

$

Usually ships in 2-12 days

0

Scag 485949

RIM W/ VALVE STEM

$253.99

$

Usually ships in 2-12 days

0

Scag 485948

WHEEL ASSY, 20 X 10-10

$257.99

$

Usually ships in 2-12 days

0

29

Scag 04028-02

Wheel Nut, 1/2-20 x 13/16

$1.99

$

In Stock, Qty 20+

0

30

Scag 04001-49

Bolt, Hex Head 5/16-18 x 3.00"

$0.99

$

In Stock, Qty 9

0

31

Scag 424489

Bracket, Push Arm Link

$11.99

$

Usually ships in 2-12 days

0

32

Scag 486791

Transaxle, LH - SZL-61

$1926.99

$

Usually ships in 2-12 days

0

33

Scag 486792

Transaxle, RH - SZL-61

$1926.99

$

Usually ships in 2-12 days

0

34

Scag 43984

Spacer

$10.99

$

Usually ships in 2-12 days

0

35

Scag 04001-39

BOLT, HEX HEAD, 5/16-18 X 2-1/4

$0.99

$

In Stock, Qty 10

0

36

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI)

$0.99

$

In Stock, Qty 20+

0

37

Scag 44218

Rod, Brake

$8.99

$

Usually ships in 2-12 days

0

38

Scag 43876

Joint, Swivel

$10.99

$

Usually ships in 2-12 days

0

39

Scag 04069-01

Pin, Rue Cotter 3/8" Diameter

$1.49

$

In Stock, Qty 5

0

40

Scag 04041-07

Flatwasher, 3/8" Special (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

41

Scag 04030-04

Lockwasher, 3/8" Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV

$0.99

$

In Stock, Qty 8

0

42

Scag 463187

Brake Lever Assembly

$57.99

$

Usually ships in 2-12 days

0

43

Scag 482102

Grip, Brake Handle

$3.99

$

In Stock, only 1 left!

0

44

Scag 483453-05

Bearing

$2.49

$

Usually ships in 2-12 days

0

45

Scag 43969

Pivot, Brake Lever

$2.99

$

Usually ships in 2-12 days

0

46

Scag 04001-31

Capscrew, Hex Head 3/8-16 x 2-1/2"

$0.99

$

In Stock, Qty 20+

0

47

Scag 44219

Rod, Upper Brake Linkage
(Superseded to 44231)

$12.99

$

Usually ships in 2-12 days

0

48

Scag 485349

Belt, Transmission -SZL

$39.99

$

Usually ships in 2-12 days

0

49

Scag 04001-51

Capscrew, Hex Head 3/8-16 x 3-3/4"

$1.49

$

In Stock, Qty 8

0

50

Scag 04043-04

Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8

$0.99

$

In Stock, Qty 20+

0

51

Scag 486045

Pulley, 3-1/2" Dia.

$21.99

$

In Stock, Qty 20+

0

52

Scag 04001-54

Bolt, Hex Head 3/8-16 x 3" - 52"

$1.49

$

In Stock, Qty 10

0

53

Scag 431049

Spacer, Controls

$1.99

$

Usually ships in 2-12 days

0

54

Scag 463017

Trans. Idler Arm Assy. (Includes 24, 79)

$69.99

$

Usually ships in 2-12 days

0

55

Scag 48224

BEARINGS, BALL, NEUTRAL RETURN

$13.99

$

In Stock, Qty 20+

0

56

Scag 43720

Spacer, Idler Pulley - SFZ61

$4.99

$

In Stock, only 1 left!

0

57

Scag 04001-45

Capscrew, Hex Head 3/8-16 x 2.0"

$0.99

$

In Stock, Qty 9

0

58

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

59

Scag 04001-14

Capscrew, Hex Head 1/4-20 x 1"

$0.99

$

In Stock, Qty 15

0

60

Scag 04019-02

NUT, 1/4-20 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

61

Scag 04107-05

Bolt, Hex Head 3/8-16 x 2-1/2" Soecial Lock

$4.99

$

Usually ships in 2-12 days

0

62

Scag 04110-04

U-Nut, 3/8-16

$5.99

$

In Stock, Qty 7

0

63

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

64

Scag 485312

Linkage, Pump

$41.99

$

Usually ships in 2-12 days

0

65

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FT & FT-EFI

$0.99

$

In Stock, Qty 14

0

Scag 04001-21

Bolt, Hex Head 3/8-16 x 1-3/4" (Kohler EFI)

$0.99

$

In Stock, Qty 20+

0

66

Scag 462797

Control Arm Assembly

$64.99

$

Usually ships in 2-12 days

0

67

Scag 463019

Bellcrank Assembly (incl. 44)

$94.99

$

Usually ships in 2-12 days

0

68

Scag 04001-02

Bolt, Hex Head, 1/4-20 x 1-1/4"

$0.99

$

Usually ships in 2-12 days

0

69

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-1/2" - Front

$0.99

$

In Stock, Qty 20+

0

70

Scag 422372

Bar, Control Lever

$30.99

$

In Stock, only 2 left!

0

71

Scag 462740

Handlebar w/Grip

$69.99

$

Usually ships in 2-12 days

0

Scag 484376

Grip, Control Handle

$11.99

$

Usually ships in 2-12 days

0

72

Scag 462741

Handlebar w/Grip

$74.99

$

Usually ships in 2-12 days

0

Scag 484376

Grip, Control Handle

$11.99

$

Usually ships in 2-12 days

0

73

Scag 483538

Spring, Brake

$13.99

$

Usually ships in 2-12 days

0

74

Scag 484193

Damper, Steering

$74.99

$

In Stock, only 2 left!

0

75

Scag 43602

Spacer, Pump Dampener

$3.49

$

In Stock, only 1 left!

0

76

Scag 04001-11

Bolt, Hex Head 5/16-18 x 1-1/2" (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 6

0

77

Scag 453454

Mounting Weldment, Axle - Hydro-Gear

$

$

Currently unavailable
