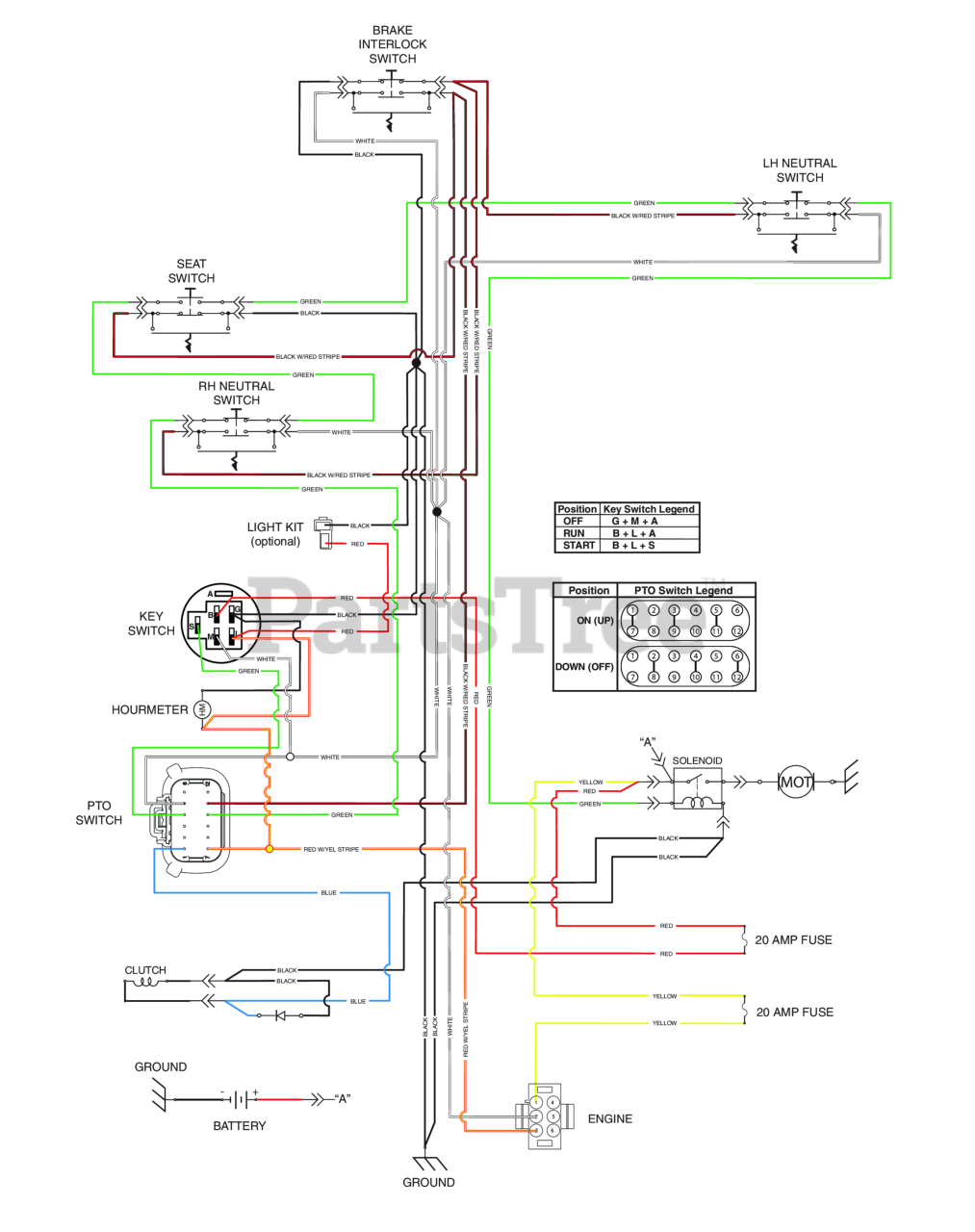

SZL61H-24FR - Scag Liberty Z 61" Zero-Turn Mower, 24hp Kawasaki (SN: R7100001 - R7199999) ELECTRICAL SCHEMATIC Parts Diagram

Liberty Z 61" Zero-Turn Mower, 24hp Kawasaki

ELECTRICAL SCHEMATIC Parts Diagram

  • Title

No Part List Information Available

$

$

Not available
