SZL61-26KT - Scag Liberty Z 61" Zero-Turn Mower, 26hp Kohler (SN: N7300001 - N7399999) 48, 52 & 61 SHEET METAL COMPONENTS Parts Diagram

Liberty Z 61" Zero-Turn Mower, 26hp Kohler

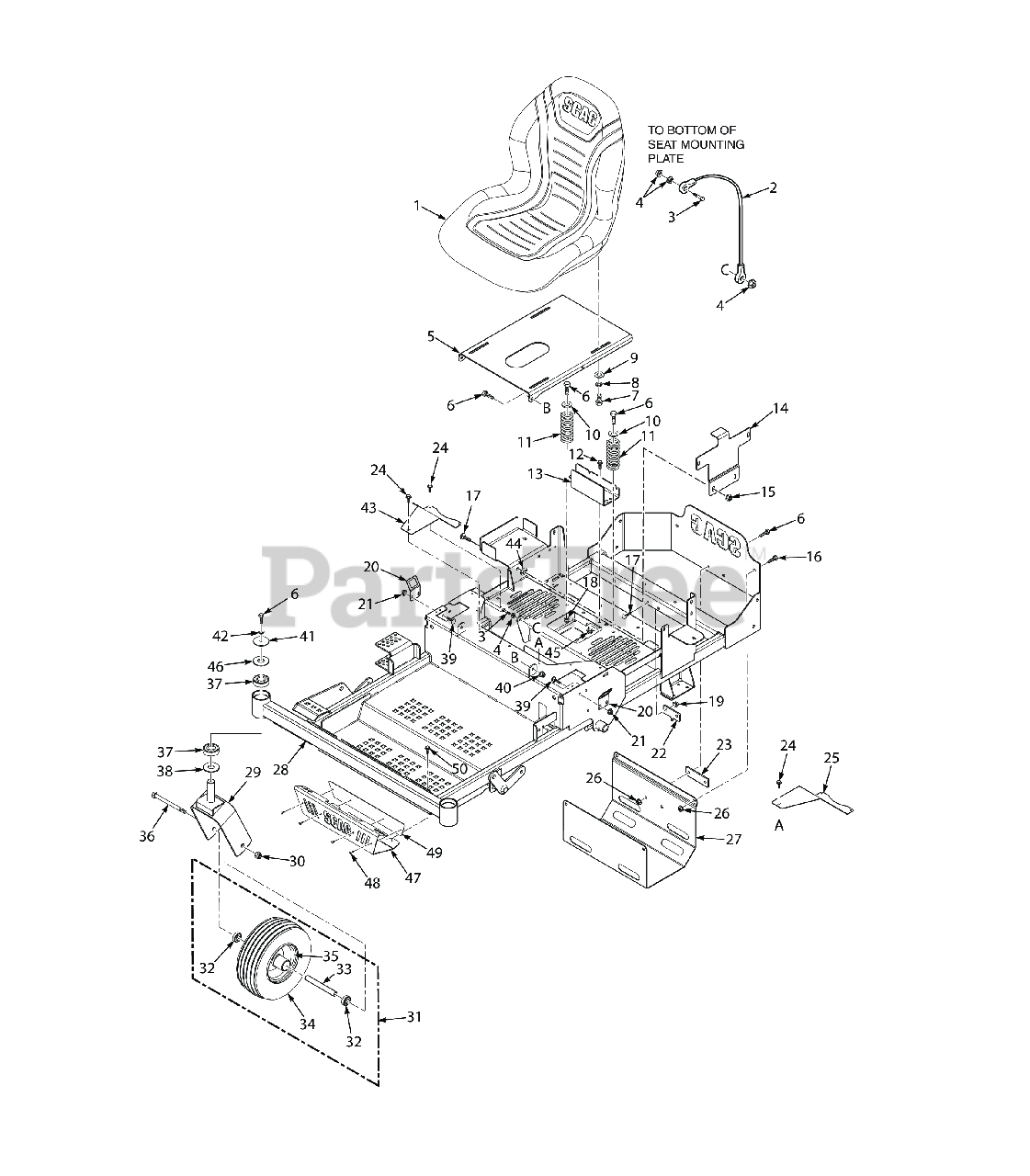

48, 52 & 61 SHEET METAL COMPONENTS Parts Diagram

  • Title

1

Scag 485361

Seat, SZL

$384.99

$

Usually ships in 2-12 days

0

2

Scag 483559

Cable, Seat Stop

$8.99

$

Usually ships in 2-12 days

0

3

Scag 04001-59

SERR. FLG. HEX HEAD CAPSCREW, 5/16-18 X 3/4

$0.99

$

In Stock, Qty 5

0

4

Scag 04019-02

NUT, 1/4-20 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

5

Scag 463033

Seat-Plate W/Decal

$107.99

$

Usually ships in 2-12 days

0

6

Scag 04001-19

Bolt, Hex Head, 3/8-16 x 1 Gr. 5

$0.99

$

In Stock, Qty 7

0

7

Scag 04001-08

BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4"

$0.99

$

In Stock, Qty 20+

0

8

Scag 04030-03

Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring

$0.99

$

In Stock, Qty 20+

0

9

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI)

$0.99

$

In Stock, Qty 20+

0

10

Scag 04041-07

Flatwasher, 3/8" Special (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

11

Scag 483372

Spring, Seat

$13.99

$

Usually ships in 2-12 days

0

12

Scag 04017-16

Capscrew, 5/16-18 x .75 Serrated Flange Hex Head

$0.99

$

In Stock, Qty 10

0

13

Scag 426768

Channel, Hose

$9.99

$

Usually ships in 2-12 days

0

14

Scag 426766

Battery Hold Down

$24.99

$

Usually ships in 2-12 days

0

15

Scag 04117-01

Nut, Flange Head Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 18

0

16

Scag 04001-18

Bolt, Hex Head, 3/8-16 x 3/4"

$0.99

$

In Stock, Qty 5

0

17

Scag 04003-12

Bolt, 5/16-18 x .75 RHSN Carriage

$0.99

$

In Stock, Qty 20+

0

18

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

19

Scag 04117-01

Nut, Flange Head Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 18

0

20

Scag 426727

Bracket, Switch

$11.99

$

Usually ships in 2-12 days

0

21

Scag 04117-03

Nut, Flanged Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 10

0

22

Scag 427540

PLATE, ANTI-ROTATION
(Superseded to 427961)

$9.49

$

Usually ships in 2-12 days

0

23

Scag 426843

Plate, Spacer

$8.49

$

Usually ships in 2-12 days

0

24

Scag 04011-11

Screw, #10-32 x .563 Shakeproof

$0.99

$

In Stock, Qty 8

0

25

Scag 426767

Guard, Belt - LH

$14.99

$

Usually ships in 2-12 days

0

26

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

27

Scag 426828

Skid Plate, SZL

$88.99

$

Usually ships in 2-12 days

0

28

Scag 463036

Mainframe w/Decals - SZL

$1758.99

$

Usually ships in 2-12 days

0

28

Scag 463037

Mainframe w/Decals - SZL-61

$1755.99

$

Usually ships in 2-12 days

0

29

Scag 452965

Yoke Weldment, Caster

$69.99

$

In Stock, only 1 left!

0

30

Scag 04021-07

HEX LOCKNUT, ELASTIC STOP, 1/2-13

$0.99

$

In Stock, Qty 20+

0

31

Scag 485939

CASTER WHEEL ASSY, 11.00 X 6.00-5

$128.99

$

Usually ships in 2-12 days

0

32

Scag 485243

Bearing

$13.99

$

In Stock, Qty 6

0

33

Scag 431052

SPACER, WHEEL BEARING

$17.99

$

Usually ships in 2-12 days

0

34

Scag 485941

TIRE, 11 X 6.00-5

$55.99

$

Usually ships in 2-12 days

0

35

Scag 485940

RIM ASSY, 5 X 3 W/5.625 LG HUB

$111.99

$

Usually ships in 2-12 days

0

36

Scag 04001-134

Bolt, Hex Head 1/2-13 x 7-1/2" (48"/52")

$5.49

$

In Stock, Qty 20+

0

37

Scag 483466

Bearing

$8.99

$

In Stock, only 2 left!

0

38

Scag 424636

Spacer, Yoke

$4.49

$

Usually ships in 2-12 days

0

39

Scag 04003-02

Serr. Fl. Hex Head CPSCR, 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

40

Scag 04117-02

Nut, Flange Elastic Stop Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

41

Scag 04041-38

Flatwasher, 3/8-.406 x 2.25" x .1875

$3.49

$

In Stock, Qty 9

0

42

Scag 04030-04

Lockwasher, 3/8" Spring, Kawasaki FX / FS

$0.99

$

In Stock, Qty 8

0

43

Scag 424785

Guard, Belt - RH

$9.49

$

Usually ships in 2-12 days

0

44

Scag 04024-03

Nut, Push-On 5/16-18

$1.49

$

In Stock, Qty 16

0

45

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 20+

0

46

Scag 04040-11

Flatwasher, 7/16" (.500 x 1.25 x .083")

$0.99

$

In Stock, Qty 13

0

47

Scag 463104

Front Bumper Assy.

$69.99

$

Usually ships in 2-12 days

0

48

Scag 04090-03

Rivot, 3/16 x .402 POP

$0.99

$

Usually ships in 2-12 days

0

49

Scag 427834

Background Plate

$

$

Currently unavailable

50

Scag 04011-29

Screw, 1/4-20 x .375"

$0.99

$

In Stock, Qty 5

0
