SZL61-26KT - Scag Liberty Z 61" Zero-Turn Mower, 26hp Kohler (SN: N7300001 - N7399999) 48, 52 & 61 DRIVE SYSTEM COMPONENTS Parts Diagram

Liberty Z 61" Zero-Turn Mower, 26hp Kohler

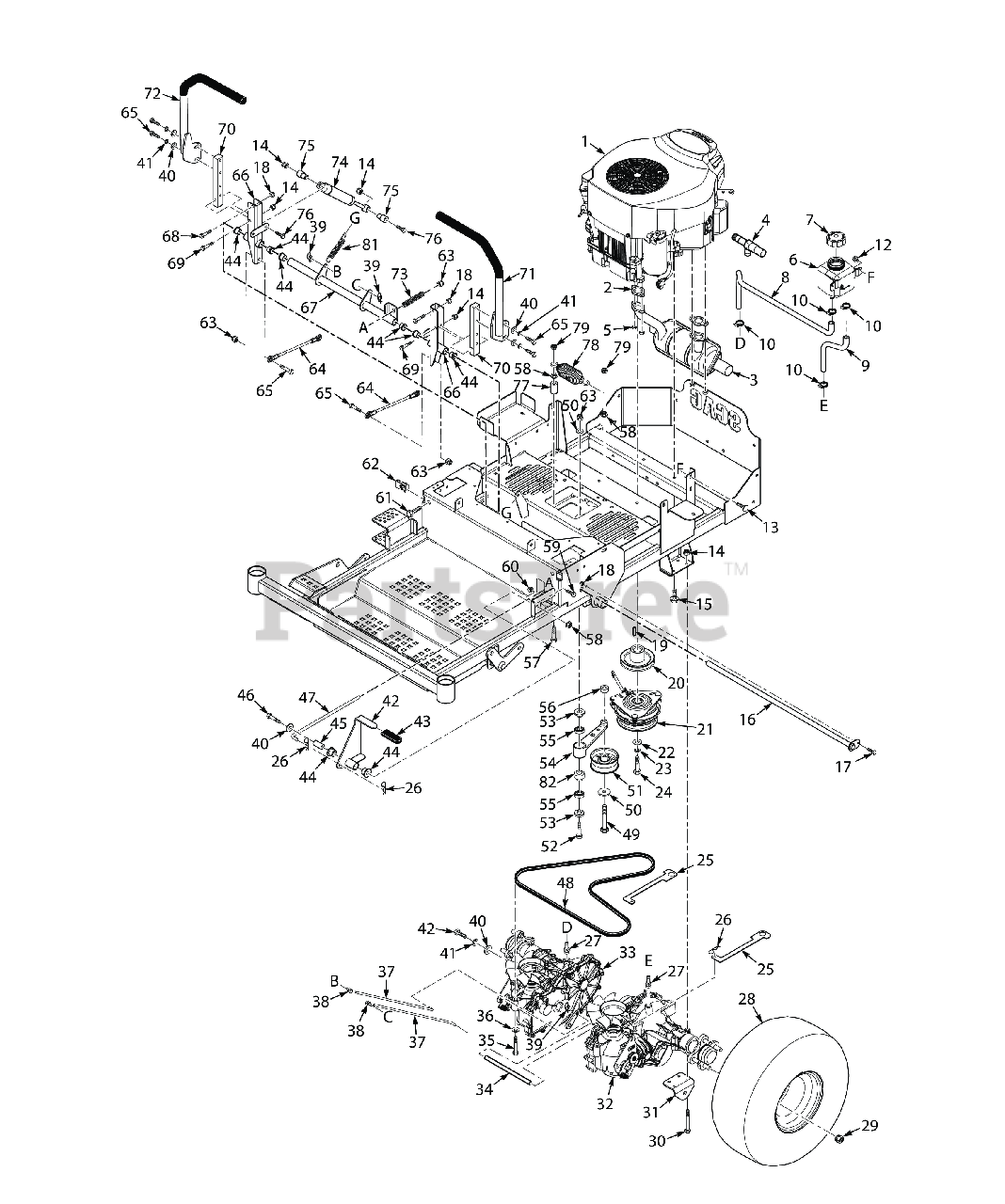

48, 52 & 61 DRIVE SYSTEM COMPONENTS Parts Diagram

  • Title

1

Scag 485219

Engine, Kawasaki 21FR

Note: Available through individual engine manufacturer.

$

$

Currently unavailable

1

Scag 485220

Engine, Kawasaki - FR691V

Note: Available through individual engine manufacturer.

$

$

Currently unavailable

1

Scag 486021

Engine, Kohler - 26KT

Note: Available through individual engine manufacturer.

$

$

Currently unavailable

2

Gasket, Exhaus

Note: Available through individual engine manufacturer.

$

$

Not available

3

Scag 485225

Muffler, Kawasaki FR651V & FR691V

$94.99

$

Usually ships in 2-12 days

0

3

Scag 485336

Muffler, Kohler KT

$96.99

$

In Stock, only 3 left!

0

4

Oil Drain, Kawasaki

Note: Available through individual engine manufacturer.

$

$

Not available

4

Scag 484706

Hose, Oil Drain - Kohler CV & CV-EFI

$40.99

$

Usually ships in 2-12 days

0

5

Scag 04121-01

Nut, M6-1.0 Hex Flange

$0.99

$

Usually ships in 2-12 days

0

6

Scag 483438

Reservoir Assembly

$37.99

$

Usually ships in 2-12 days

0

7

Scag 483514

Cap, Hydraulic Tank

$22.99

$

Usually ships in 2-12 days

0

8

Scag 485402

Hose, RH Transmission

$31.99

$

In Stock, only 1 left!

0

9

Scag 485401

Hose, LH Transmission

$14.99

$

In Stock, only 1 left!

0

10

Scag 48136-05

Clamp, Cable 3/4" I.D.

$3.99

$

In Stock, only 2 left!

0

11

Scag 48136-13

Clamp, .69" Max. / .25" Min. Dia.

$7.49

$

In Stock, Qty 20+

0

12

Scag 04117-03

Nut, Flanged Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 10

0

13

Scag 04003-02

Serr. Fl. Hex Head CPSCR, 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

14

Scag 04021-10

HEX NUT, ELASTIC STOP LOCK, 5/16-18

$0.99

$

In Stock, Qty 20+

0

15

Scag 04011-07

Bolt, Hex Head Self-Tap 3/8-16 x 1-1/4" (Kohler x3 - 25EFI, Kohler x4 - 29EFI)

$3.49

$

In Stock, Qty 11

0

16

Scag 452620

Shaft Weldment, Control Arm

$45.99

$

Usually ships in 2-12 days

0

17

Scag 04001-06

BOLT, HEX HEAD, 1/4-20 X 5/8

$0.99

$

In Stock, only 3 left!

0

18

Scag 04021-08

HEX, NUT, ELASTIC STOP LOCK, 1/4-20

$0.99

$

In Stock, Qty 9

0

19

Scag 04063-01

Key, 1/4 x 1/4 x 1.25" Pulley Mtg.

$1.49

$

In Stock, only 4 left!

0

20

Scag 485956

Pulley, 4-1/2" - 1" Bore

$45.99

$

Usually ships in 2-12 days

0

20

Scag 486326

Pulley, 4-1/2" - 1.125" Bore (SZL-61)

$47.99

$

Usually ships in 2-12 days

0

21

Scag 462715

Electric Clutch Assembly

$239.99

$

Usually ships in 2-12 days

0

21

Scag 462228

Electric Clutch Assembly - SFZ52 & SFZ61

$361.99

$

Usually ships in 2-12 days

0

22

Scag 04041-28

Flatwasher, 7/16-.469 x 1.75 x .25 (48, 52)

$2.99

$

In Stock, Qty 12

0

23

Scag 04030-05

Lockwasher, 7/16� Spring

$0.99

$

In Stock, Qty 5

0

24

Scag 04102-06

Bolt, Hex Head 7/16-20 x 3" w/t Patch

$2.49

$

In Stock, Qty 8

0

25

Scag 426592

Lever, Dump Valve

$9.49

$

Usually ships in 2-12 days

0

26

Scag 04062-02

HAIR PIN, .08 DIAMETER X 1-3/16"

$0.99

$

In Stock, Qty 20+

0

27

Scag 482800-

Fitting, O-Ring x 3/8" Hose

$

$

Currently unavailable

28

Scag 483390

Wheel Assembly (48, 52)

$237.99

$

Usually ships in 2-12 days

0

28

Scag 485948

WHEEL ASSY, 20 X 10-10

$334.99

$

Usually ships in 2-12 days

0

28

Scag 481868

Rim w/Valve Stem (48, 52, 61)

$185.99

$

Usually ships in 2-12 days

0

28

Scag 485949

RIM W/ VALVE STEM

$137.99

$

Usually ships in 2-12 days

0

28

Scag 483389

Tire, 20 x 10-8 2-Ply (48, 52, 61)

$187.99

$

Usually ships in 2-12 days

0

28

Scag 485948

WHEEL ASSY, 20 X 10-10

$334.99

$

Usually ships in 2-12 days

0

29

Scag 04028-02

Wheel Nut, 1/2-20 x 13/16

$1.49

$

In Stock, Qty 20+

0

30

Scag 04001-49

Bolt, Hex Head 5/16-18 x 3.00"

$0.99

$

In Stock, Qty 9

0

31

Scag 424489

Bracket, Push Arm Link

$11.99

$

Usually ships in 2-12 days

0

32

Scag 485339

Transaxle, LH - SZL

$

$

Not available

32

Scag 486038

Transaxle, LH - SZL-61

$1751.99

$

Usually ships in 2-12 days

0

33

Scag 485340

Transaxle, RH - SZL

$

$

Not available

33

Scag 486039

Transaxle, RH - SZL-61

$1693.99

$

Usually ships in 2-12 days

0

34

Scag 43984

Spacer

$9.99

$

Usually ships in 2-12 days

0

35

Scag 04001-39

BOLT, HEX HEAD, 5/16-18 X 2-1/4

$0.99

$

In Stock, Qty 10

0

36

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI)

$0.99

$

In Stock, Qty 20+

0

37

Scag 44218

Rod, Brake

$8.49

$

Usually ships in 2-12 days

0

38

Scag 43876

Joint, Swivel

$10.99

$

Usually ships in 2-12 days

0

39

Scag 04069-01

Pin, Rue Cotter 3/8" Diameter

$1.49

$

In Stock, only 4 left!

0

40

Scag 04041-07

Flatwasher, 3/8" Special (.391 x .938 x .105)

$0.99

$

In Stock, Qty 20+

0

41

Scag 04030-04

Lockwasher, 3/8" Spring, Kawasaki FX / FS

$0.99

$

In Stock, Qty 8

0

42

Scag 463105

Bearing

$59.99

$

Usually ships in 2-12 days

0

43

Scag 482102

Grip, Brake Handle

$3.99

$

In Stock, only 3 left!

0

44

Scag 483453-05

Bearing

$2.49

$

Usually ships in 2-12 days

0

45

Scag 43969

Pivot, Brake Lever

$2.99

$

Usually ships in 2-12 days

0

46

Scag 04001-31

Capscrew, Hex Head 3/8-16 x 2-1/2"

$0.99

$

In Stock, Qty 20+

0

47

Scag 44219

Rod, Upper Brake Linkage
(Superseded to 44231)

$11.99

$

Usually ships in 2-12 days

0

48

Scag 485349

Belt, Transmission -SZL

$38.99

$

Usually ships in 2-12 days

0

49

Scag 04001-51

Capscrew, Hex Head 3/8-16 x 3-3/4"

$1.49

$

In Stock, Qty 8

0

50

Scag 04043-04

Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8

$0.99

$

In Stock, Qty 20+

0

51

Scag 486045

Pulley, 3-1/2" Dia.

$20.99

$

In Stock, Qty 20+

0

52

Scag 04001-54

Bolt, Hex Head 3/8-16 x 3" - 52"

$0.99

$

In Stock, Qty 9

0

53

Scag 431049

Spacer, Controls

$1.99

$

Usually ships in 2-12 days

0

54

Scag 463017

Trans. Idler Arm Assy. (Includes 24, 79)

$

$

Not available

55

Scag 48224

BEARINGS, BALL, NEUTRAL RETURN

$12.99

$

In Stock, Qty 20+

0

56

Scag 43720

Spacer, Idler Pulley - SFZ61

$4.99

$

In Stock, only 1 left!

0

57

Scag 04001-45

Capscrew, Hex Head 3/8-16 x 2.0"

$0.99

$

In Stock, Qty 8

0

58

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

59

Scag 04001-14

Capscrew, Hex Head 1/4-20 x 1"

$0.99

$

In Stock, Qty 15

0

60

Scag 04019-02

NUT, 1/4-20 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

61

Scag 04107-05

Bolt, Hex Head 3/8-16 x 2-1/2" Soecial Lock

$4.99

$

Usually ships in 2-12 days

0

62

Scag 04110-03

U-Nut, 3/8-16 (short)

$2.49

$

In Stock, Qty 20+

0

63

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

64

Scag 485312

Linkage, Pump

$40.99

$

Usually ships in 2-12 days

0

65

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FS

$0.99

$

In Stock, Qty 12

0

66

Scag 462797

Control Arm Assembly

$

$

Not available

67

Scag 463019

Bellcrank Assembly (incl. 44)

$92.99

$

Usually ships in 2-12 days

0

68

Scag 04001-02

Bolt, Hex Head, 1/4-20 x 1-1/4"

$0.99

$

Usually ships in 2-12 days

0

69

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-1/2" - Front

$0.99

$

In Stock, Qty 20+

0

70

Scag 422372

Bar, Control Lever

$30.99

$

In Stock, only 2 left!

0

71

Scag 462740

Handlebar w/Grip

$68.99

$

Usually ships in 2-12 days

0

71

Scag 484376

Grip, Control Handle

$10.99

$

Usually ships in 2-12 days

0

72

Scag 462741

Handlebar w/Grip

$72.99

$

Usually ships in 2-12 days

0

72

Scag 484376

Grip, Control Handle

$10.99

$

Usually ships in 2-12 days

0

73

Scag 483538

Spring, Brake

$13.99

$

Usually ships in 2-12 days

0

74

Scag 484193

Damper, Steering

$72.99

$

In Stock, only 2 left!

0

75

Scag 43602

Spacer, Pump Dampener

$2.99

$

In Stock, only 2 left!

0

76

Scag 04001-11

Bolt, Hex Head 5/16-18 x 1-1/2" (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 6

0

77

Scag 43674

Spacer, Idler Pulley - SFZ52

$2.49

$

In Stock, only 2 left!

0

78

Scag 483112

Spring, Transmission Drive

$14.99

$

In Stock, only 1 left!

0

79

Scag 04021-05

Bolt, Hex Head 3/8-16 x 1" Ser. Flg.

$0.99

$

In Stock, Qty 20+

0

80

Scag 04001-04

Bolt, Hex Head, 1/4-20 x 1-1/2"

$0.99

$

In Stock, Qty 16

0

81

Scag 483600

Spring, Deck Latch

$15.99

$

In Stock, only 2 left!

0

82

Scag 431073

Spacer, Bearing

$32.99

$

Usually ships in 2-12 days

0
