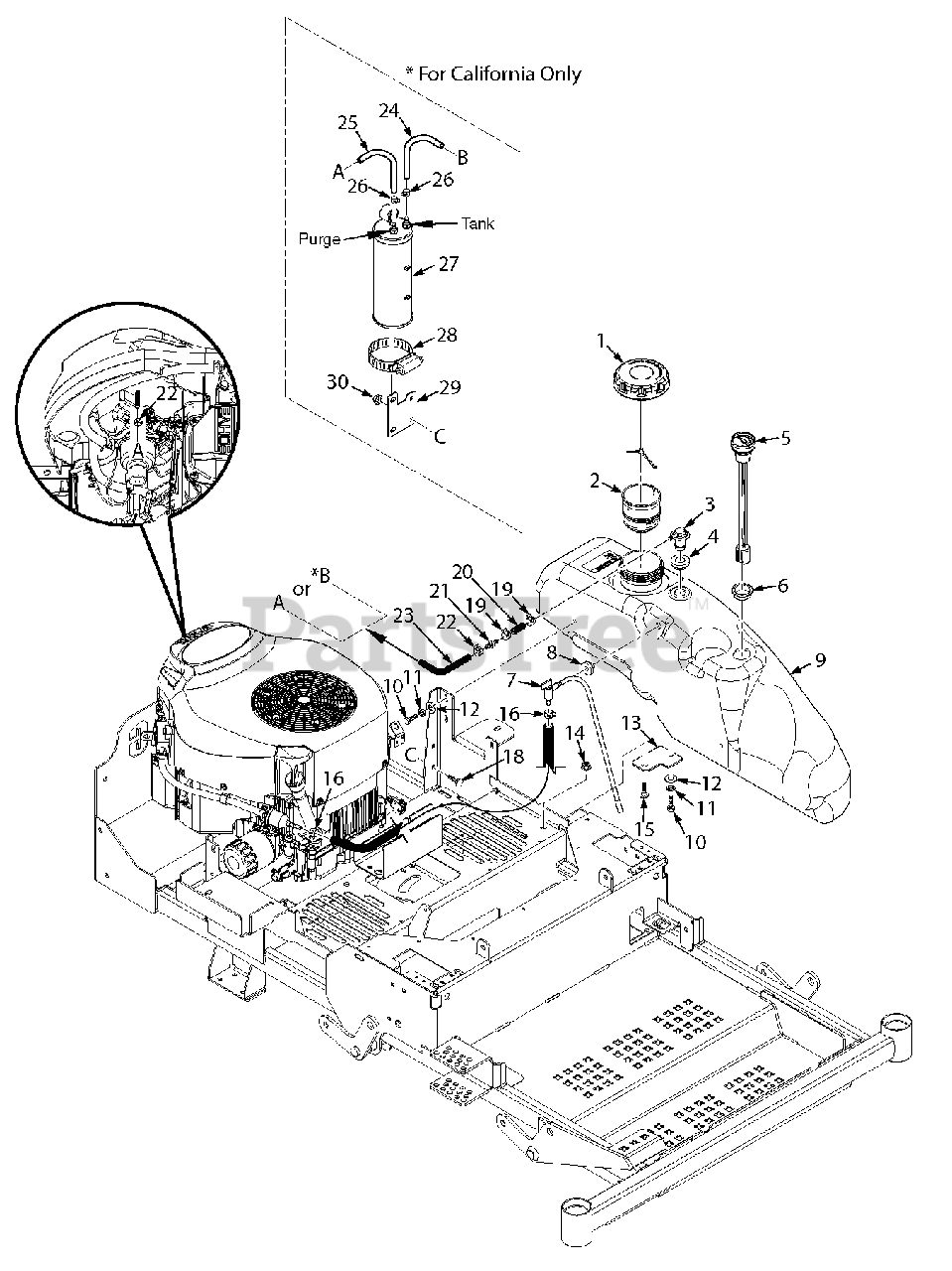

SZL52-24KT - Scag Liberty Z 52" Zero-Turn Mower, 24hp Kohler (SN: K7200400 - K7299999) Fuel System Parts Diagram

Liberty Z 52" Zero-Turn Mower, 24hp Kohler

Fuel System Parts Diagram

  • Title

1

Scag 484286

Fuel Cap

$54.99

$

In Stock, only 1 left!

0

1

Scag 484297

Fuel Cap, C.A.R.B.

Note: California Only

$65.99

$

Usually ships in 2-12 days

0

2

Scag 485670

Fuel Neck Insert

$10.99

$

Usually ships in 2-12 days

0

3

Scag 484333

Remote Vent, No Valve

$14.99

$

Usually ships in 2-12 days

0

4

Scag 484285

Grommet, Kelch

$11.99

$

Usually ships in 2-12 days

0

5

Scag 485393

Fuel Gauge (requires #6)

$50.99

$

In Stock, only 1 left!

0

6

Scag 485394

Grommet, Fuel Gauge
(Superseded to 462909)

$14.99

$

In Stock, only 1 left!

0

7

Scag 485391

Valve, Fuel Shut Off

$16.99

$

Usually ships in 2-12 days

0

8

Scag 482571

Bushing, .56 Dia. Viton

$12.99

$

In Stock, Qty 20+

0

9

Scag 462850

Fuel Tank Assembly
(Superseded to 463009)

Note: (incl. 1, 2, 3, 4, 5, 6, 7, 8)

$510.99

$

Usually ships in 2-12 days

0

10

Scag 04001-08

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

11

Scag 04030-03

Lockwasher, 5/16"

$0.99

$

In Stock, Qty 20+

0

12

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083

$0.99

$

In Stock, Qty 20+

0

13

Scag 426759

Mounting Bracket, Fuel Tanks Front

$6.49

$

Usually ships in 2-12 days

0

14

Scag 04019-03

Nut, 5/16-18 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

15

Scag 04003-04

Bolt, Carriage 5/16-18 x 1"

$0.99

$

In Stock, Qty 9

0

16

Scag 48059-01

Clamp, Fuel Hose 1/4"

$0.99

$

In Stock, Qty 7

0

17

Scag 483617

Hose, Non-perm Fuel - 1/4" Dia. (order by inch)

$0.99

$

In Stock, Qty 20+

0

18

Scag 04003-02

Bolt, Carriage 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

19

Scag 48059-02

Clamp, Fuel Hose 7/32" ID

$0.99

$

In Stock, Qty 19

0

20

Scag 484347

Hose, 1/4" Vapor Return (order by inch)

$0.99

$

In Stock, Qty 20+

0

21

Scag 484343-01

Mender, 1/4 x 3/16 w/.02 Hole

$26.99

$

In Stock, Qty 5

0

22

Scag 48059-05

Clamp, Vapor Hose -3/16"

$4.49

$

In Stock, only 3 left!

0

23

Scag 484345

Hose, Vapor (order by inch)

$0.99

$

In Stock, Qty 20+

0

24

Scag 484345

Hose, Vapor (order by inch)

Note: California Only

$0.99

$

In Stock, Qty 20+

0

25

Scag 484345

Hose, Vapor (order by inch)

Note: California Only

$0.99

$

In Stock, Qty 20+

0

26

Scag 48059-05

Clamp, Vapor Hose - 3/16"

Note: California Only

$4.49

$

In Stock, only 3 left!

0

27

Scag 484287

Carbon Cannister, 400cc

Note: California Only

$96.99

$

Usually ships in 2-12 days

0

27

Scag 484366

Dust Filter (not shown)

Note: California Only (Incl. with #27)

$2.99

$

In Stock, Qty 14

0

28

Scag 48136-17

Clamp, 3-1/2" Max. Dia.

Note: California Only

$7.49

$

Usually ships in 2-12 days

0

29

Scag 426326

Bracket, Cannister Mount

Note: California Only

$20.99

$

Usually ships in 2-12 days

0

30

Scag 04019-02

Nut, 1/4-20 Serrated Flange

Note: California Only

$0.99

$

In Stock, Qty 20+
