SZL52-23FR (06319) - Scag Liberty Z 52" Zero-Turn Mower, 23hp Kawasaki (SN: N7200001 - N7299999) ELECTRICAL SCHEMATIC Parts Diagram

Liberty Z 52" Zero-Turn Mower, 23hp Kawasaki

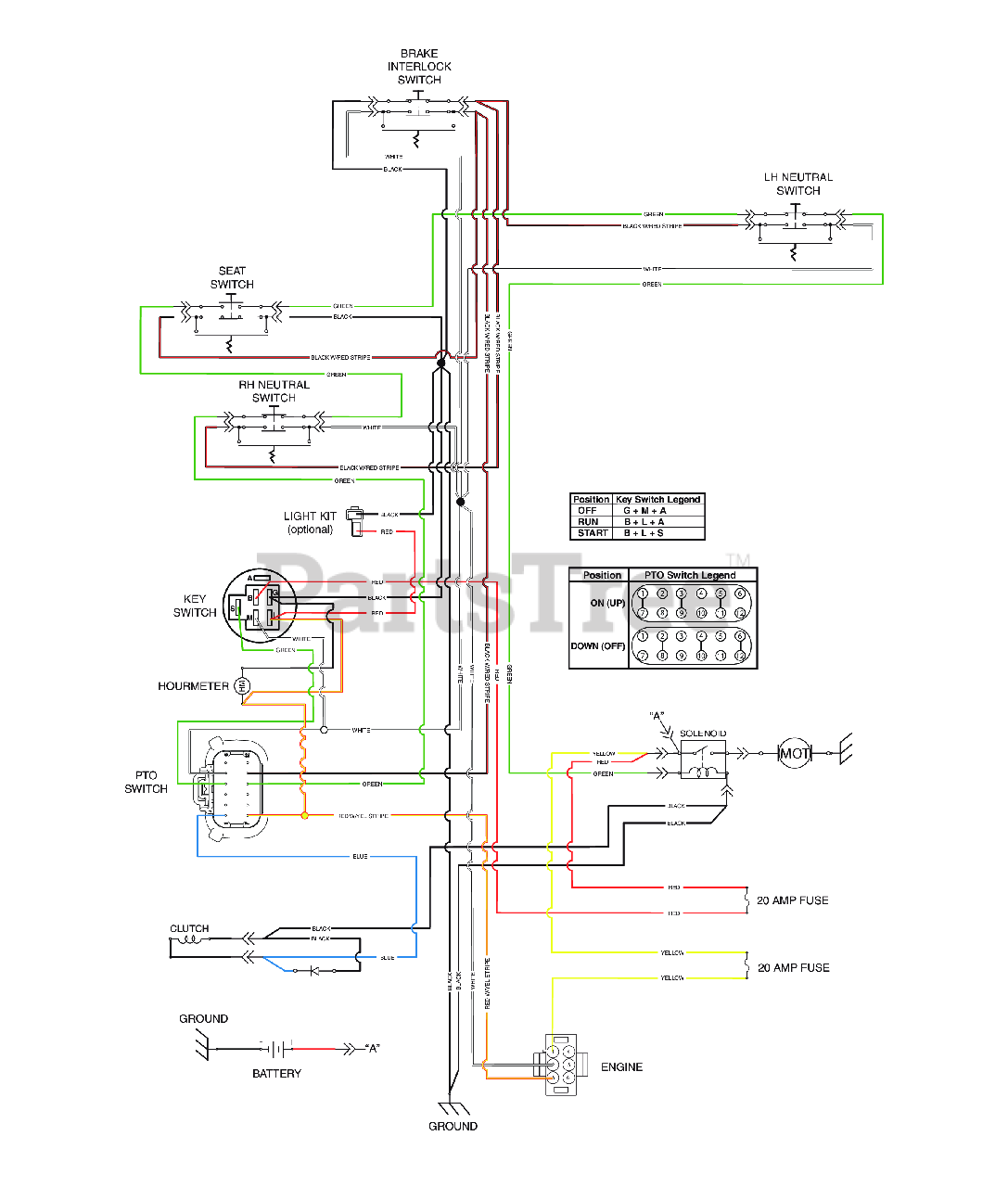

ELECTRICAL SCHEMATIC Parts Diagram

  • Title

No Part List Information Available

$

$

Not available
