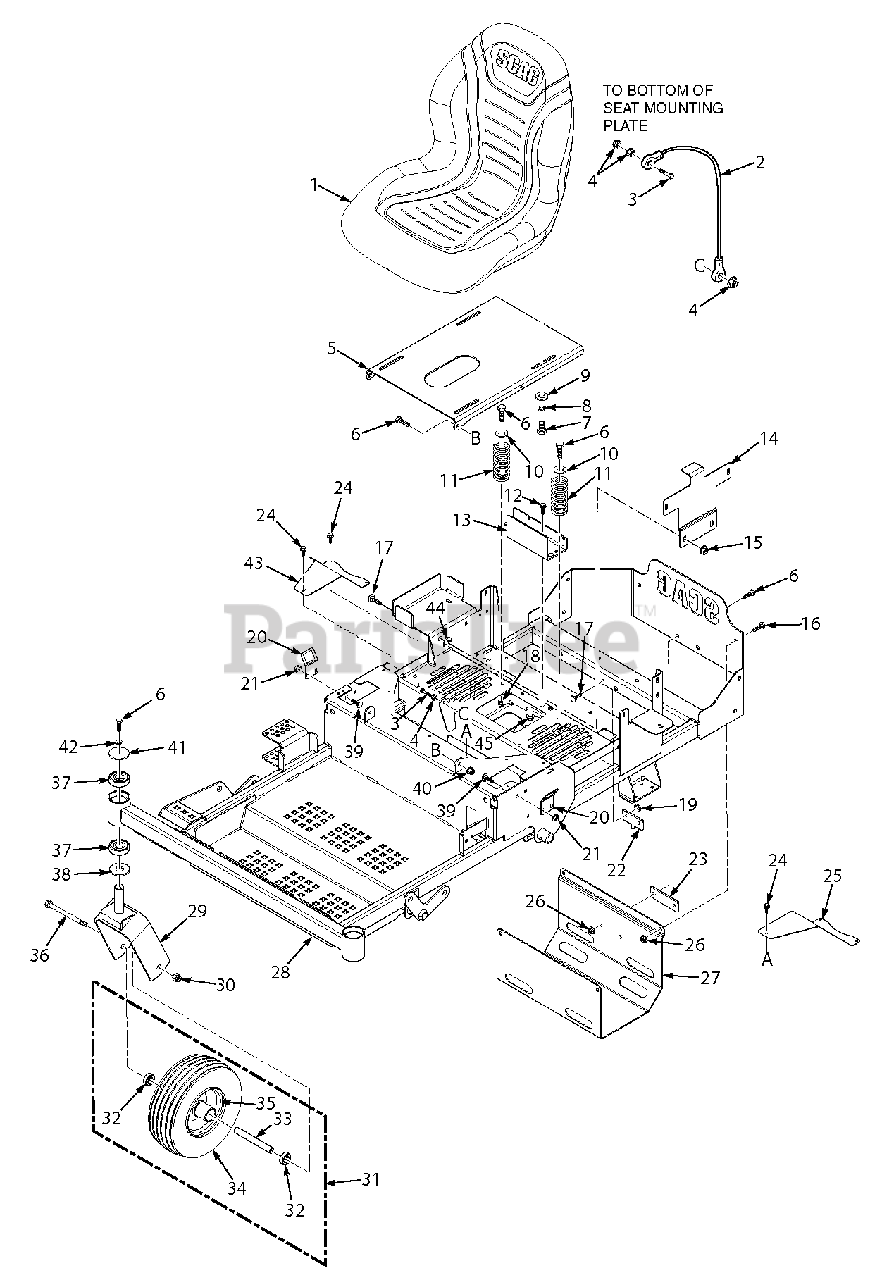

SZL52-23FR (06312) - Scag Liberty Z 52" Zero-Turn Mower, 23hp Kawasaki (SN: N2500001 - N2599999) 48 & 52 Sheet Metal Components Parts Diagram

Liberty Z 52" Zero-Turn Mower, 23hp Kawasaki

48 & 52 Sheet Metal Components Parts Diagram

  • Title

1

Scag 485361

Seat, SZL

$

$

Not available

2

Scag 483559

Cable, Seat Stop

$8.99

$

Usually ships in 2-12 days

0

3

Scag 04001-59

Bolt, Hex Head 1/4-20 x 1-1/4"

$0.99

$

In Stock, Qty 5

0

4

Scag 04019-02

Nut, 1/4-20 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

5

Scag 462791

Seat Plate w/Decal
(Superseded to 463033)

$104.99

$

Usually ships in 2-12 days

0

6

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 6

0

7

Scag 04001-08

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

8

Scag 04030-03

Lockwasher, 5/16"

$0.99

$

In Stock, Qty 20+

0

9

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083

$0.99

$

In Stock, Qty 20+

0

10

Scag 04041-07

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

11

Scag 483372

Spring, Seat

$12.99

$

Usually ships in 2-12 days

0

12

Scag 04017-16

Bolt, Hex Head 5/16-18 x 3/4" Serrated Flange

$0.99

$

In Stock, Qty 10

0

13

Scag 426768

Channel, Hose

$9.49

$

Usually ships in 2-12 days

0

14

Scag 426766

Battery Hold Down

$23.99

$

Usually ships in 2-12 days

0

15

Scag 04117-01

Nut, 5/16-18 Flange Elastic Stop

$0.99

$

In Stock, Qty 18

0

16

Scag 04001-18

Bolt, Hex Head 3/8-16 x 3/4"

$0.99

$

In Stock, Qty 5

0

17

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

18

Scag 04021-09

Nut, 3/8-16 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

19

Scag 04117-01

Nut, 5/16-18 Flange Elastic Stop

$0.99

$

In Stock, Qty 18

0

20

Scag 426727

Bracket, Switch

$10.99

$

Usually ships in 2-12 days

0

21

Scag 04117-03

Nut, 1/4-20 Flange Elastic Stop

$0.99

$

In Stock, Qty 10

0

22

Scag 426726

Plate, Anti-Rotation
(Superseded to 427961)

$8.99

$

Usually ships in 2-12 days

0

23

Scag 426843

Plate, Spacer

$7.99

$

Usually ships in 2-12 days

0

24

Scag 04011-11

Screw, #10-32 x .56

$0.99

$

In Stock, Qty 8

0

25

Scag 426767

Guard, Belt - LH

$14.99

$

Usually ships in 2-12 days

0

26

Scag 04019-04

Nut, 3/8-16 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

27

Scag 426828

Skid Plate, SZL

$86.99

$

Usually ships in 2-12 days

0

28

Scag 462927

Mainframe w/Decals - SZL
(Superseded to 463035)

$1712.99

$

Usually ships in 2-12 days

0

29

Scag 451845

Yoke Weldment, Caster

$102.99

$

Usually ships in 2-12 days

0

30

Scag 04021-07

Nut, 1/2-13 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

31

Scag 485207

Caster Wheel Assembly

Note: (incl. 32, 33, 34, 35)

$94.99

$

In Stock, only 1 left!

0

32

Scag 485243

Bearing

$12.99

$

In Stock, Qty 6

0

33

Scag 43974

Spacer, Wheel Bearing

$15.99

$

In Stock, only 2 left!

0

34

Scag 483417

Tire, 11 x 4

$60.99

$

Usually ships in 2-12 days

0

35

Scag 485242

Rim Assembly

Note: (incl. 32, 33)

$87.99

$

In Stock, only 1 left!

0

36

Scag 04001-80

Bolt, Hex Head 1/2-13 x 6-1/2"

$5.99

$

In Stock, Qty 20+

0

37

Scag 483466

Bearing

$8.99

$

Usually ships in 2-12 days

0

38

Scag 424636

Spacer, Yoke

$4.49

$

Usually ships in 2-12 days

0

39

Scag 04003-02

Bolt, Carriage 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

40

Scag 04117-02

Nut, 3/8-16 Flange Elastic Stop

$0.99

$

In Stock, Qty 20+

0

41

Scag 04041-38

Flatwasher, 3/8-.406 x 2.25 x .188

$3.49

$

In Stock, Qty 8

0

42

Scag 04030-04

Lockwasher, 3/8"

$0.99

$

In Stock, Qty 7

0

43

Scag 424785

Guard, Belt - RH

$9.49

$

Usually ships in 2-12 days

0

44

Scag 04024-03

U-Nut, 5/16 Push-On

$1.49

$

In Stock, Qty 16

0

45

Scag 04019-03

Nut, 5/16-18 Serrated Flange

$0.99

$

In Stock, Qty 20+

0
