SZL52-21FR (06302) - Scag Liberty Z 52" Zero-Turn Mower, 21hp Kawasaki (SN: M6100000 - M6199999) 48 & 52 Drive System Components Parts Diagram

Liberty Z 52" Zero-Turn Mower, 21hp Kawasaki

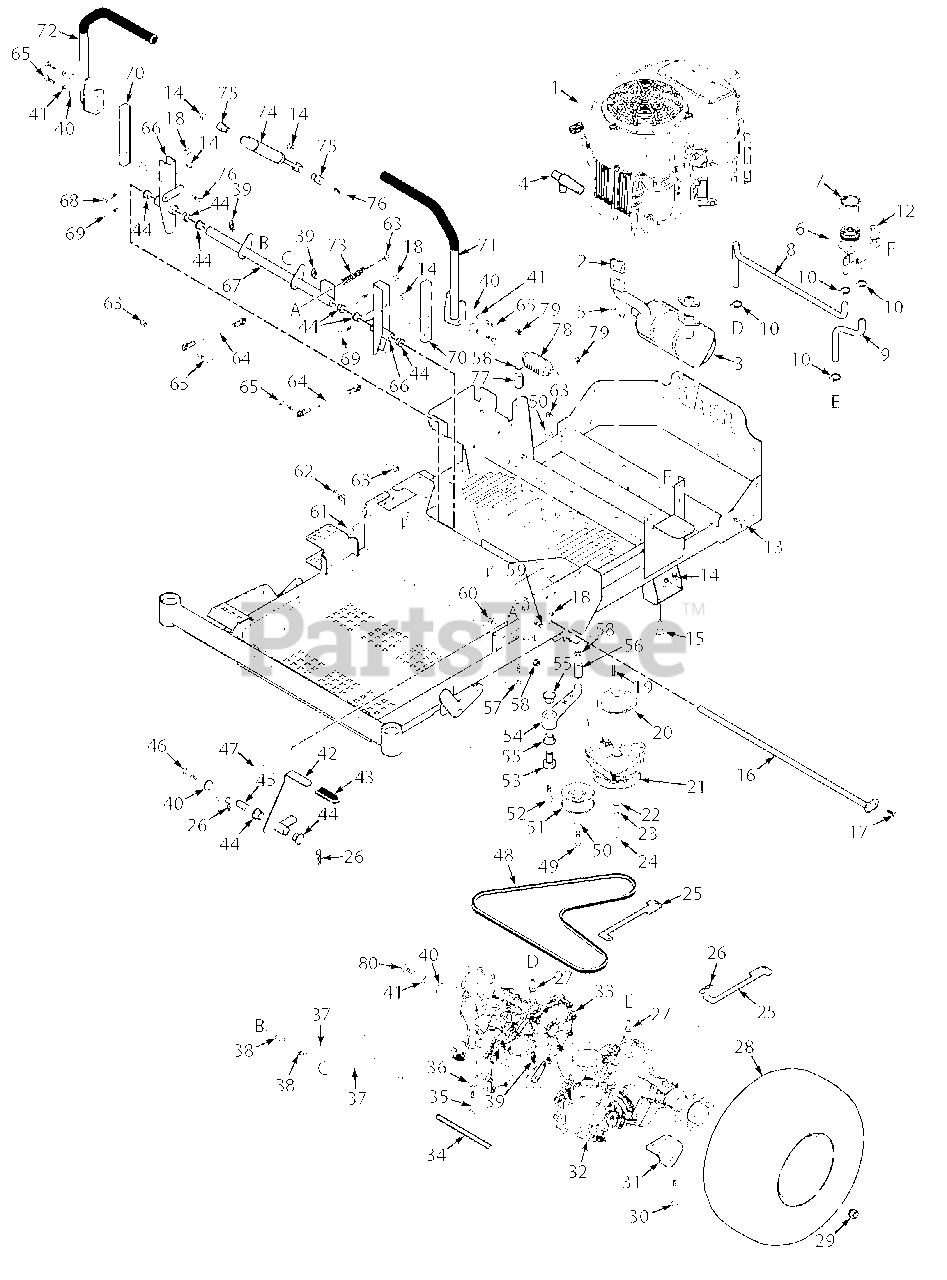

48 & 52 Drive System Components Parts Diagram

  • Title

1

Scag 485192

Engine, Kawasaki - FR600V

Note: Available through individual engine manufacturer.

$

$

Currently unavailable

1

Scag 485291

Engine, Kawasaki - FR651V

Note: Available through individual engine manufacturer.

$7.99

$

Usually ships in 2-12 days

0

2

Gasket, Exhaust

Note: Available through individual engine manufacturer.

$

$

Not available

3

Scag 485193

Muffler, Kawasaki FR/FS600V

$101.99

$

Usually ships in 2-12 days

0

3

Scag 485225

Muffler, Kawasaki FR/FS651V

$97.99

$

Usually ships in 2-12 days

0

4

Oil Drain, Kawasaki

Note: Available through individual engine manufacturer.

$

$

Not available

5

Scag 04121-01

Nut, M6-1.0 Hex Flange

$0.99

$

Usually ships in 2-12 days

0

6

Scag 483438

Reservoir Assembly

Note: (incl. 7)

$38.99

$

Usually ships in 2-12 days

0

7

Scag 483514

Cap

$23.99

$

Usually ships in 2-12 days

0

8

Scag 485402

Hose, RH Transmission

$32.99

$

In Stock, only 1 left!

0

9

Scag 485401

Hose, LH Transmission

$14.99

$

Usually ships in 2-12 days

0

10

Scag 48136-05

Clamp, .87 Max. Dia.

$3.99

$

In Stock, only 2 left!

0

11

Scag 48136-13

Clamp, .69 Max. Dia.

$7.49

$

In Stock, Qty 20+

0

12

Scag 04117-03

Nut, 1/4-20 Flange Elastic Stop

$0.99

$

In Stock, Qty 10

0

13

Scag 04003-02

Bolt, Carriage 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

14

Scag 04021-10

Nut, 5/16-18 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

15

Scag 04011-07

Bolt, 3/8-16 x 1-1/4" Serrated Flange Self Tap

$3.49

$

In Stock, Qty 11

0

16

Scag 452620

Shaft Weldment, Control Arm

$46.99

$

Usually ships in 2-12 days

0

17

Scag 04001-06

Bolt, Hex Head 1/4-20 x 5/8"

$0.99

$

In Stock, only 3 left!

0

18

Scag 04021-08

Nut, 1/4-20 Elastic Stop

$0.99

$

In Stock, Qty 10

0

19

Scag 04063-01

Key, 1/4 x 1/4 x 1-1/4"

$1.49

$

In Stock, only 4 left!

0

20

Scag 484595

Pulley, 4-1/2" - 1" Bore

$28.99

$

Usually ships in 2-12 days

0

21

Scag 462715

Clutch, GT1

$260.99

$

Usually ships in 2-12 days

0

22

Scag 04041-28

Flatwasher, 7/16-.496 x 1.75 x .25

$2.99

$

In Stock, Qty 13

0

23

Scag 04030-05

Lockwasher, 7/16"

$0.99

$

In Stock, Qty 8

0

24

Scag 04102-06

Bolt, 7/16-20 x 3" w/Patch

$2.49

$

In Stock, Qty 8

0

25

Scag 426592

Lever, Dump Valve

$9.49

$

Usually ships in 2-12 days

0

26

Scag 04062-02

Hair Pin Cotter, .080 x 1.19

$0.99

$

In Stock, Qty 20+

0

27

Scag 482800-02

Fitting, O-Ring x 3/8" Hose

$17.99

$

Usually ships in 2-12 days

0

28

Scag 483390

Wheel Assembly

$243.99

$

Usually ships in 2-12 days

0

28

Scag 481868

Rim w/Valve Stem

$189.99

$

Usually ships in 2-12 days

0

28

Scag 483389

Tire, 20 x 10-8

$192.99

$

Usually ships in 2-12 days

0

29

Scag 04028-02

Wheel Nut, 1/2-20 x 13/16

$1.99

$

In Stock, Qty 20+

0

30

Scag 04001-49

Bolt, Hex Head 5/16-18 x 3"

$0.99

$

In Stock, Qty 9

0

31

Scag 424489

Bracket, Pusharm

$11.99

$

Usually ships in 2-12 days

0

32

Scag 485339

Transaxle, LH - SZL

$1588.99

$

Usually ships in 2-12 days

0

33

Scag 485340

Transaxle, RH - SZL

$1627.99

$

Usually ships in 2-12 days

0

34

Scag 43984

Spacer

$10.99

$

Usually ships in 2-12 days

0

35

Scag 04001-39

Bolt, Hex Head 5/16-18 x 2-1/4"

$0.99

$

In Stock, Qty 10

0

36

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083

$0.99

$

In Stock, Qty 20+

0

37

Scag 44218

Rod, Brake

$8.99

$

Usually ships in 2-12 days

0

38

Scag 43876

Joint, Swivel

$10.99

$

Usually ships in 2-12 days

0

39

Scag 04069-01

Pin, Rue Cotter - 3/8"

$1.49

$

In Stock, Qty 5

0

40

Scag 04041-07

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

41

Scag 04030-04

Lockwasher, 3/8"

$0.99

$

In Stock, Qty 8

0

42

Scag 462739

Brake Lever Assembly

Note: (incl. 43, 44)

$50.99

$

Usually ships in 2-12 days

0

43

Scag 482102

Grip, Brake Handle

$3.99

$

In Stock, only 1 left!

0

44

Scag 483453-05

Bearing

$2.49

$

Usually ships in 2-12 days

0

45

Scag 43969

Pivot, Brake Lever

$2.99

$

Usually ships in 2-12 days

0

46

Scag 04001-31

Bolt, Hex Head 3/8-16 x 2-1/2"

$0.99

$

In Stock, Qty 20+

0

47

Scag 44219

Rod, Upper Brake Linkage
(Superseded to 44231)

$12.99

$

Usually ships in 2-12 days

0

48

Scag 485349

Belt, Transmission-SZL

$39.99

$

Usually ships in 2-12 days

0

49

Scag 04001-51

Bolt, Hex Head 3/8-16 x 3-3/4"

$1.49

$

In Stock, Qty 8

0

50

Scag 04043-04

Flatwasher, 3/8-.391 x .938 x .105 HD

$0.99

$

In Stock, Qty 20+

0

51

Scag 483638

Pulley, 3-1/2" Idler
(Superseded to 486045)

$21.99

$

In Stock, Qty 20+

0

52

Scag 04001-54

Bolt, Hex Head 3/8-16 x 3"

$1.49

$

In Stock, Qty 10

0

53

Scag 43715

Shaft, Pivot Idler Arm

$18.99

$

In Stock, only 1 left!

0

54

Scag 462122

Idler Arm Assembly

Note: (incl. 55)

$

$

Not available

55

Scag 483453-02

Bearing

$12.99

$

Usually ships in 2-12 days

0

56

Scag 43720

Spacer, Pump Idler

$4.99

$

In Stock, only 1 left!

0

57

Scag 04001-45

Bolt, Hex Head 3/816 x 2"

$0.99

$

In Stock, Qty 9

0

58

Scag 04019-04

Nut, 3/8-16 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

59

Scag 04001-14

Bolt, Hex Head 1/4-20 x 1"

$0.99

$

In Stock, Qty 15

0

60

Scag 04019-02

Nut, 1/4-20 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

61

Scag 04107-05

Bolt, Hex Head 3/8-16 x 2-1/2" Special Lock

$4.99

$

Usually ships in 2-12 days

0

62

Scag 04110-03

U-Nut, 3/8-16

$2.49

$

In Stock, Qty 20+

0

63

Scag 04021-09

Nut, 3/8-16 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

64

Scag 485312

Linkage, Pump

$41.99

$

Usually ships in 2-12 days

0

65

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 14

0

66

Scag 462797

Control Arm Assembly

$64.99

$

Usually ships in 2-12 days

0

67

Scag 462742

Bellcrank Assembly
(Superseded to 463019)

Note: (incl. 44)

$94.99

$

Usually ships in 2-12 days

0

68

Scag 04001-02

Bolt, Hex Head 1/4-20 x 1-3/4"

$0.99

$

Usually ships in 2-12 days

0

69

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

70

Scag 422372

Bar, Control Lever

$30.99

$

In Stock, only 2 left!

0

71

Scag 462740

Handlebar w/Grip

$69.99

$

Usually ships in 2-12 days

0

71

Scag 484376

Grip, Control Lever

$11.99

$

Usually ships in 2-12 days

0

72

Scag 462741

Handlebar w/Grip

$74.99

$

Usually ships in 2-12 days

0

72

Scag 484376

Grip, Control Lever

$11.99

$

Usually ships in 2-12 days

0

73

Scag 483538

Spring, Brake

$13.99

$

Usually ships in 2-12 days

0

74

Scag 484193

Damper, Steering

$74.99

$

In Stock, only 2 left!

0

75

Scag 43602

Spacer, Damper

$3.49

$

In Stock, only 1 left!

0

76

Scag 04001-11

Bolt, Hex Head 5/16-18

$0.99

$

In Stock, Qty 6

0

77

Scag 43674

Spacer

$2.49

$

In Stock, only 2 left!

0

78

Scag 483087

Spring, Transmission Drive

$56.99

$

In Stock, only 1 left!

0

79

Scag 04021-05

Nut, 3/8-16 Center Lock

$0.99

$

In Stock, Qty 20+

0

80

Scag 04001-04

Bolt, Hex Head 1/4-20 x 1-1/2

$0.99

$

In Stock, Qty 14

0
