SZL48-18FR (06302) - Scag Liberty Z 48" Zero-Turn Mower, 18hp Kawasaki (SN: M6000000 - M6099999) Electrical Schematic Parts Diagram

Liberty Z 48" Zero-Turn Mower, 18hp Kawasaki

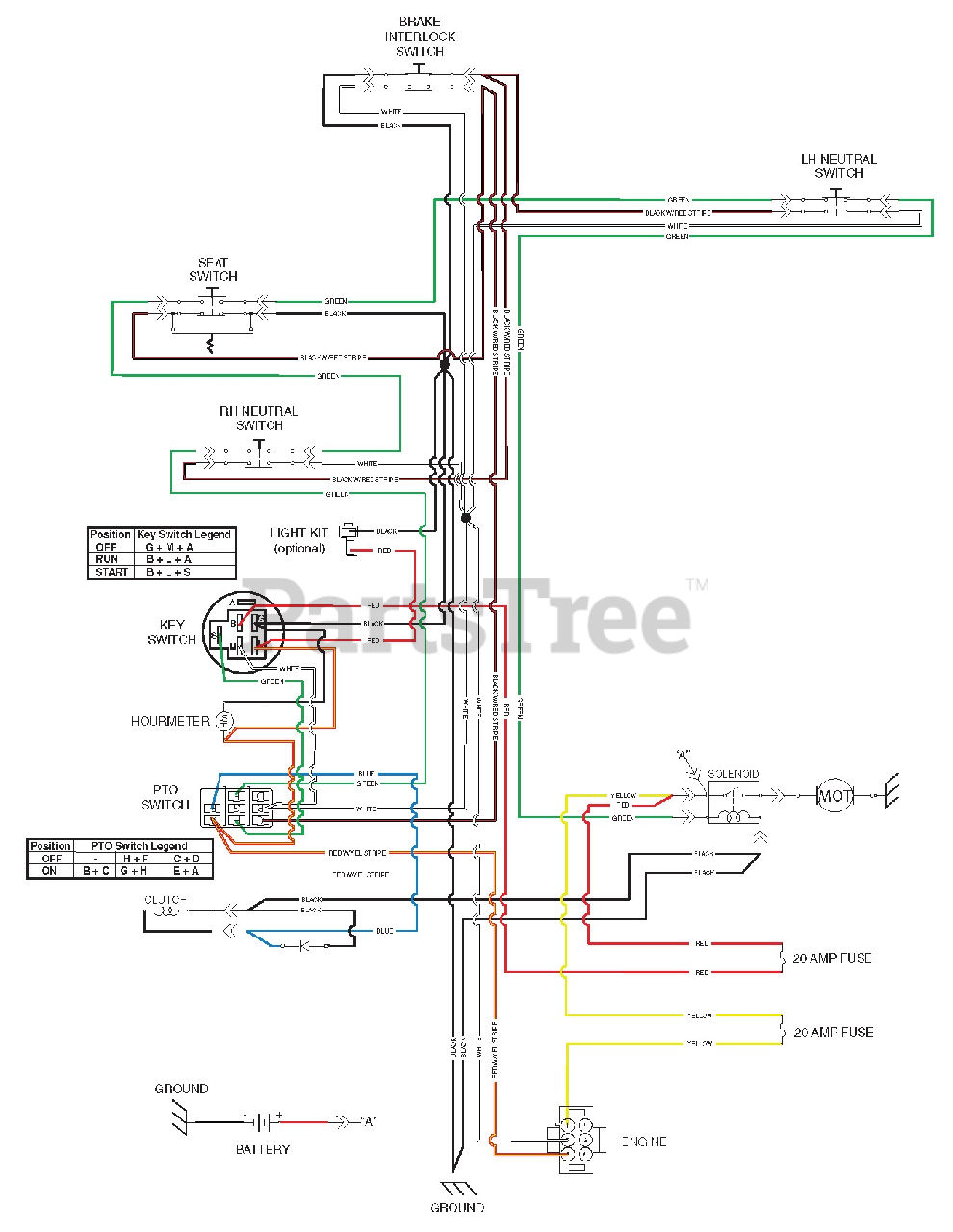

Electrical Schematic Parts Diagram

  • Title

No Part List Information Available

$

$

Not available
