SZL48-18FR (06302) - Scag Liberty Z 48" Zero-Turn Mower, 18hp Kawasaki (SN: M6000000 - M6099999) 48 & 52 Cutter Deck Controls Parts Diagram

Liberty Z 48" Zero-Turn Mower, 18hp Kawasaki

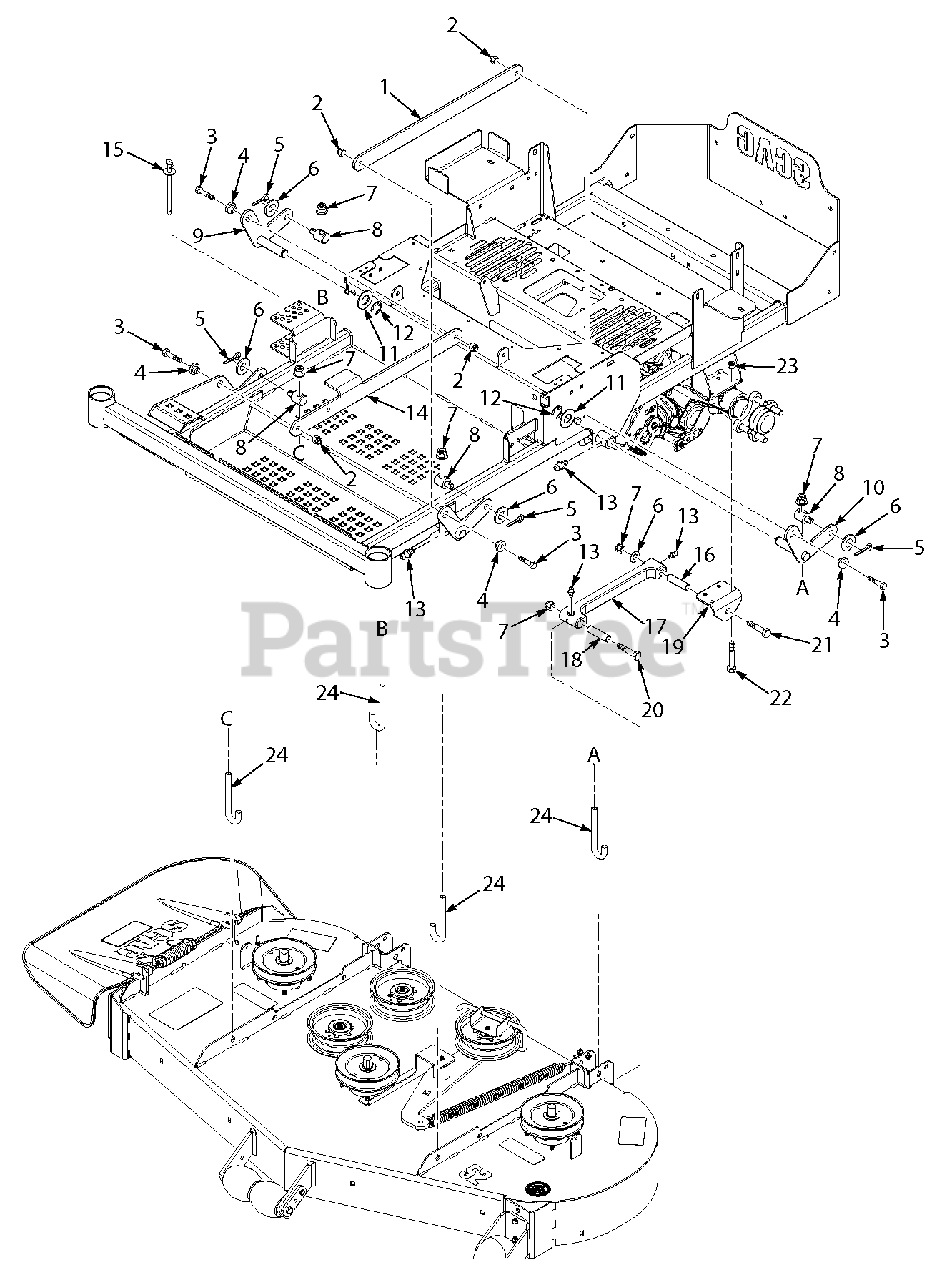

48 & 52 Cutter Deck Controls Parts Diagram

  • Title
1

Scag 426675

Link, Deck Lift - LH

$19.99

$

Usually ships in 2-12 days

0

2

Scag 04117-02

Nut, 3/8-16 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

3

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 12

0

4

Scag 43086

Bushing

$5.99

$

In Stock, only 1 left!

0

5

Scag 04061-07

Cotter Pin, 3/16 x 1"

$1.49

$

In Stock, Qty 9

0

6

Scag 04040-07

Flatwasher, 1/2-.531 x 1.062 x .095

$0.99

$

In Stock, Qty 5

0

7

Scag 04021-07

Nut, 1/2-13 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

8

Scag 43982

Joint, Swivel

$14.99

$

Usually ships in 2-12 days

0

9

Scag 452624

Lift Bellcrank Weldment, RH

$40.99

$

Usually ships in 2-12 days

0

10

Scag 452623

Lift Bellcrank Weldment, LH

$40.99

$

Usually ships in 2-12 days

0

11

Scag 04041-08

Flatwasher, 3/4-.769 x 1.250 x .0598

$0.99

$

In Stock, Qty 20+

0

12

Scag 04050-02

Retaining Ring, .750 "E"

$0.99

$

In Stock, Qty 7

0

13

Scag 48114-04

Grease Fitting, 1/4-28 Self Tap

$0.99

$

In Stock, Qty 20+

0

14

Scag 426665

Link, Deck Lift - RH

$31.99

$

Usually ships in 2-12 days

0

15

Scag 485351

Pin Assembly, Deck Height

$8.99

$

Usually ships in 2-12 days

0

16

Scag 43986

Spacer, Pusham - Axle

$4.49

$

Usually ships in 2-12 days

0

17

Scag 462769

Pusharm Assembly, LH

Note: (incl. 13)

$75.99

$

Usually ships in 2-12 days

0

17

Scag 462770

Pusharm Assembly, RH

Note: (incl. 13)

$57.99

$

Usually ships in 2-12 days

0

18

Scag 43985

Spacer, Pusharm - Deck

$4.99

$

Usually ships in 2-12 days

0

19

Scag 424489

Bracket, Pusharm

$11.99

$

Usually ships in 2-12 days

0

20

Scag 04001-145

Bolt, Hex Head 1/2-13 x 3-1/2"

$2.49

$

In Stock, only 3 left!

0

21

Scag 04001-52

Bolt, Hex Head 1/2-13 x 2-1/2"

$1.49

$

Usually ships in 2-12 days

0

22

Scag 04001-49

Bolt, Hex Head 5/16-18 x 3"

$0.99

$

In Stock, Qty 9

0

23

Scag 04021-10

Nut, 5/16-18 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

24

Scag 44220

Rod, Deck Lift

$3.49

$

In Stock, only 4 left!

0
