SZL42H-21FR - Scag Liberty Z 42" Zero-Turn Mower, 21hp Kawasaki (SN: V0900001 - V0999999) 36 & 42 ELECTRICAL SYSTEM Parts Diagram

Liberty Z 42" Zero-Turn Mower, 21hp Kawasaki

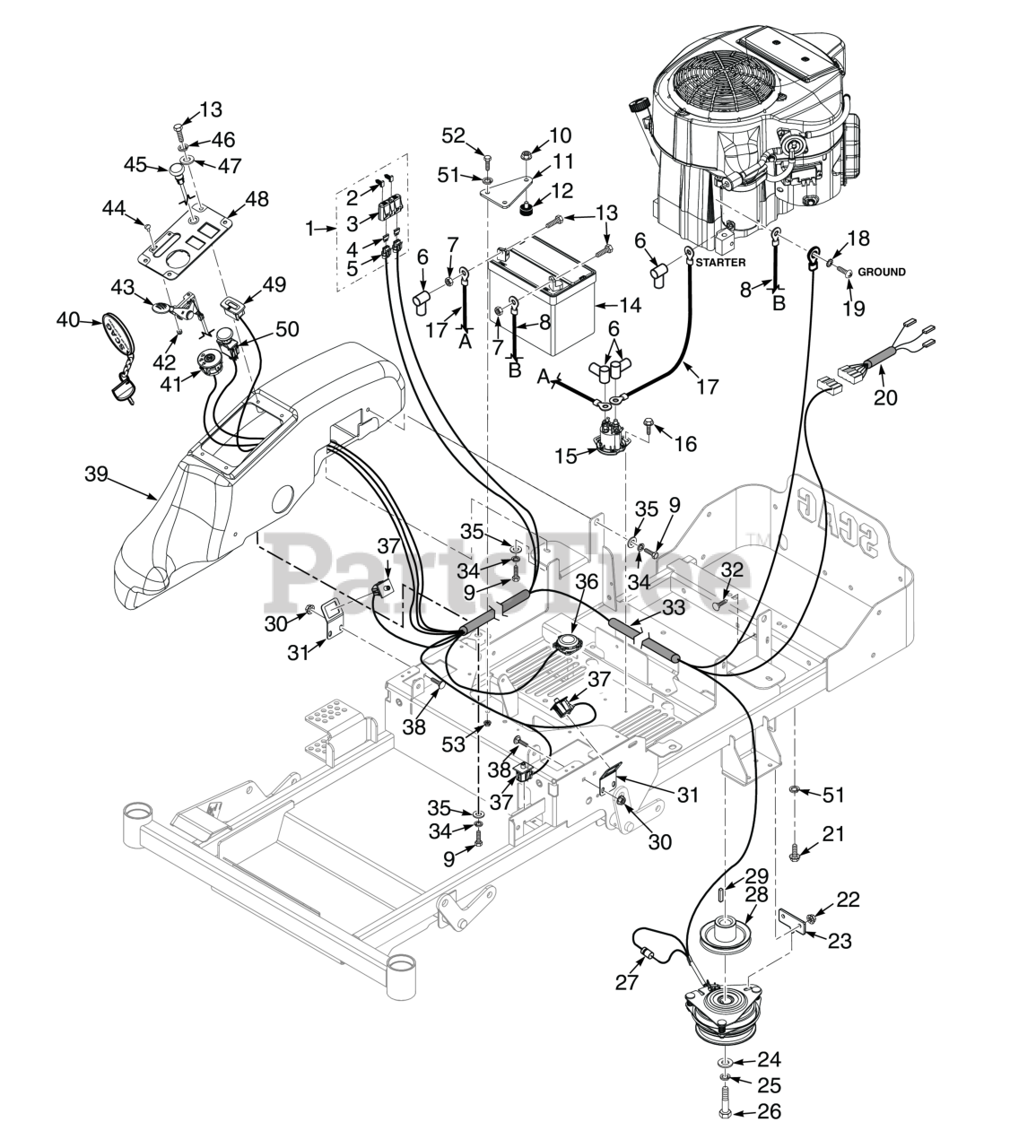

36 & 42 ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Scag 483642

Double Fuse Assy.

$43.99

$

Usually ships in 2-12 days

0

2

Scag 482588

Clip, Fuse Holder

$1.99

$

Usually ships in 2-12 days

0

3

Scag 483571

Cover, Sealed Double

$1.99

$

Usually ships in 2-12 days

0

4

Scag 48298

FUSE, 20 AMP BLADE TYPE AUTOMOTIVE

$3.99

$

Usually ships in 2-12 days

0

5

Scag 483629

Fuse Holder Assembly

$7.49

$

In Stock, Qty 7

0

6

Scag 48126

RUBBER BOOT

$8.49

$

Usually ships in 2-12 days

0

7

Scag 04020-02

Nut, 1/4 - 20 Hex

$0.99

$

In Stock, Qty 10

0

8

Scag 48029-14

Battery Cable, 31-1/2" Black (25KA, 26DFI, 31DFI) - Kawasaki

$16.99

$

Usually ships in 2-12 days

0

9

Scag 04001-08

BOLT, SERRATED FLANGE HEX HEAD 5/16-18 X 3/4"

$0.99

$

In Stock, Qty 20+

0

10

Scag 04019-03

Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only)

$0.99

$

In Stock, Qty 20+

0

11

Scag 428183

Battery Hold Down

$16.99

$

Usually ships in 2-12 days

0

12

Scag 481284

Bumper, Rubber 5/16-18 x 5/8"

$16.99

$

In Stock, only 3 left!

0

13

Scag 04001-44

Bolt, Hex Head 1/4-20 x .5" Battery, (Not Available Through Scag)

$0.99

$

In Stock, Qty 6

0

14

Scag 485212

Battery, 12v - 230CCA

Note: Not available through Scag Power Equipment. Purchase locally.

$

$

Currently unavailable

15

Scag 483278

Solenoid, Sealed (Briggs & Stratton)

$51.99

$

In Stock, only 1 left!

0

16

Scag 04011-14

Screw, Self-Tapping 1/4-20 x 3/4

$0.99

$

In Stock, Qty 13

0

17

Scag 48029-29

Battery Cable, 18" Red w/Braid (25KA, 26DFI, 31DFI) - Kawasaki

$21.99

$

Usually ships in 2-12 days

0

18

Scag 04031-03

Lockwasher, 5/16" Ext. Tooth (Kohler x1)

$0.99

$

Usually ships in 2-12 days

0

19

Scag 04002-06

Bolt, Hex Head M8 - 1.25 x 16 (48V / 52V)

$0.99

$

In Stock, only 1 left!

0

20

Scag 483529

Wire Harness Adapter, Kawasaki (not shown)

$18.99

$

Usually ships in 2-12 days

0

21

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FT & FT-EFI

$0.99

$

In Stock, Qty 11

0

22

Scag 04117-01

Nut, Flange Head Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 18

0

23

Scag 427961

Plate, Anti-Rotation

$8.99

$

Usually ships in 2-12 days

0

24

Scag 04041-28

Flatwasher, 7/16-.469 x 1.75 x .25 (48, 52)

$2.99

$

In Stock, Qty 12

0

25

Scag 04030-05

Lockwasher, 7/16� Spring

$0.99

$

In Stock, Qty 5

0

26

Scag 04102-12

Bolt, Hex Head 7/16-20 x 3¼" w/Patch

$3.49

$

Usually ships in 2-12 days

0

27

Scag 483958

Diode, 600V 6 Amp

$2.49

$

In Stock, only 4 left!

0

28

Scag 485956

Pulley, 4-1/2" - 1" Bore

$45.99

$

Usually ships in 2-12 days

0

29

Scag 04063-01

Key, 1/4 x 1/4 x 1.25" Pulley Mtg.

$1.49

$

In Stock, only 4 left!

0

30

Scag 04117-03

Nut, Flanged Elastic Stop 1/4-20

$0.99

$

In Stock, Qty 10

0

31

Scag 426727

Bracket, Switch

$10.99

$

Usually ships in 2-12 days

0

32

Scag 04003-12

Bolt, 5/16-18 x .75 RHSN Carriage

$0.99

$

In Stock, Qty 20+

0

33

Scag 486518

Wire Harness

$215.99

$

Usually ships in 2-12 days

0

34

Scag 04030-03

Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring

$0.99

$

In Stock, Qty 20+

0

35

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI)

$0.99

$

In Stock, Qty 20+

0

36

Scag 483474

Switch, Double Pole - Twist

$31.99

$

In Stock, only 1 left!

0

37

Scag 483473

Switch, Double Pole - Plunger

$16.99

$

In Stock, Qty 12

0

38

Scag 04003-02

Serr. Fl. Hex Head CPSCR, 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

39

Scag 463189

Console Tank w/Decals, SZL-36

$187.99

$

Usually ships in 2-12 days

0

40

Scag 462069

Key, Assembly w/Fob

$8.49

$

In Stock, Qty 20+

0

41

Scag 483472

Ignition Switch

$22.99

$

In Stock, Qty 20+

0

42

Scag 04021-26

Nut, Elastic Stop #10-24

$0.99

$

In Stock, Qty 11

0

43

Scag 483645

Throttle Control, Kawasaki

$23.99

$

In Stock, only 2 left!

0

44

Scag 04003-43

Bolt, Carriage #10-24 x 1/2"

$0.99

$

In Stock, Qty 10

0

45

Scag 483646

Choke Control, Kawasaki

$26.99

$

Usually ships in 2-12 days

0

46

Scag 04030-02

Lockwasher, 1/4� Spring

$0.99

$

In Stock, Qty 20+

0

47

Scag 04040-14

Flatwasher, 1/4" (.312 x .750 x .065")

$0.99

$

In Stock, only 4 left!

0

48

Scag 462942

Instrument Panel w/Decal, SZL-36

$39.99

$

Usually ships in 2-12 days

0

49

Scag 484565

Hour Meter, Inductive

$51.99

$

In Stock, only 1 left!

0

50

Scag 485833

Switch, PTO - 10 Amp

$47.99

$

In Stock, only 1 left!

0

51

Scag 04030-04

Lockwasher, 3/8" Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV

$0.99

$

In Stock, Qty 7

0

52

Scag 04001-19

Bolt, Hex Head, 3/8-16 x 1 Gr. 5

$0.99

$

In Stock, Qty 6

0

53

Scag 04132-01

Threaded insert, Hex Head (Pressed)

$2.49

$

Usually ships in 2-12 days

0
