SZL36H-18FR - Scag Liberty Z 36" Zero-Turn Mower, 18hp Kawasaki (SN: R6800001 - R6899999) 36H CUTTER DECK Parts Diagram

Liberty Z 36" Zero-Turn Mower, 18hp Kawasaki

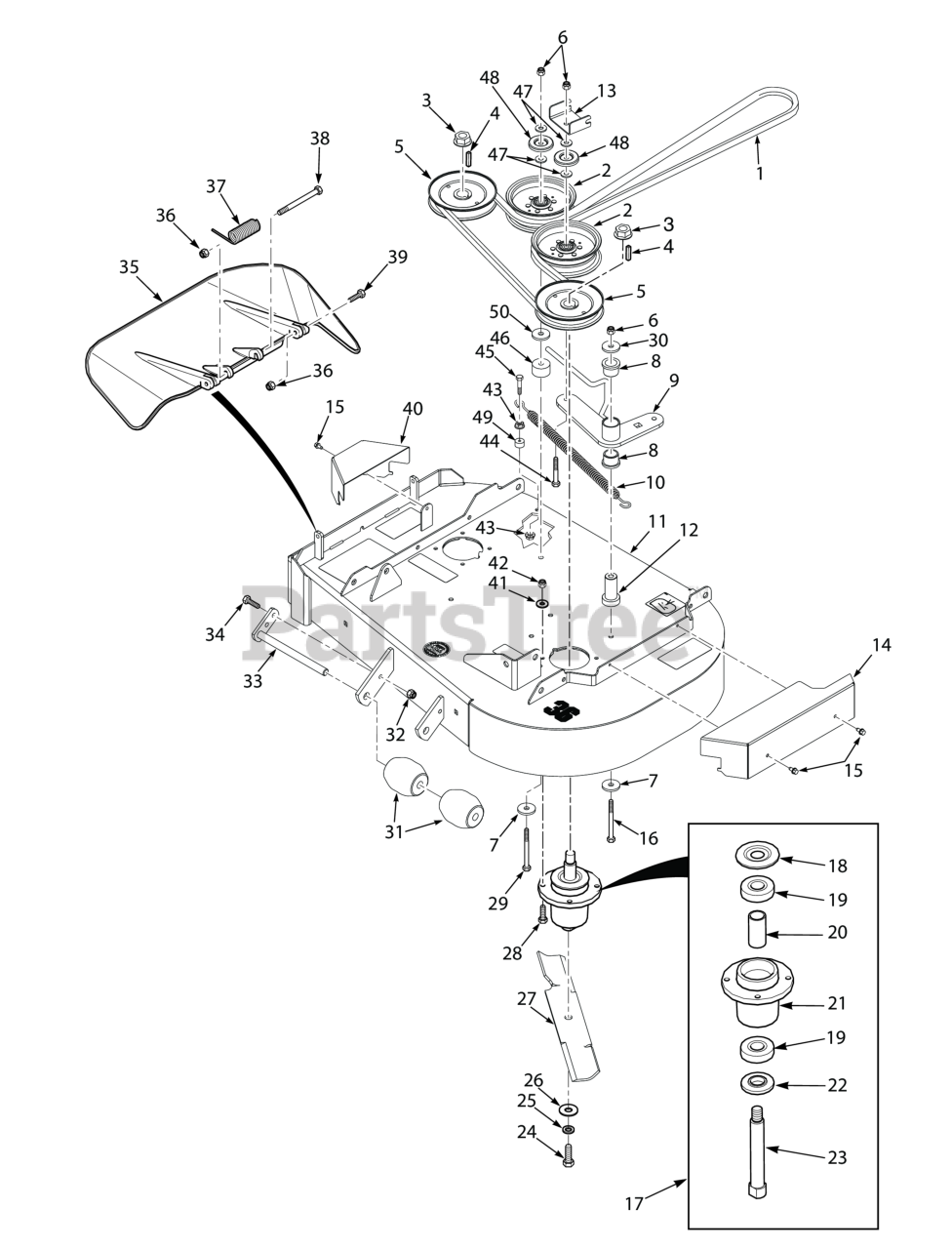

36H CUTTER DECK Parts Diagram

  • Title

1

Scag 485805

Belt, Cutter Deck

$63.99

$

Usually ships in 2-12 days

0

2

Scag 483422

Pulley, 5" Idler

$20.99

$

In Stock, only 4 left!

0

3

Scag 04112-06

Nut, 3/4-16 Spriral Lock

$11.99

$

In Stock, Qty 5

0

4

Scag 04063-01

Key, 1/4 x 1/4 x 1.25" Pulley Mtg.

$1.49

$

In Stock, only 4 left!

0

5

Scag 483324

Pulley, 5.73" OD - 25mm Bore

$33.99

$

In Stock, only 3 left!

0

6

Scag 04021-09

HEX NUT, ELASTIC STOP LOCK, 3/8-16

$0.99

$

In Stock, Qty 20+

0

7

Scag 04041-38

Flatwasher, 3/8-.406 x 2.25" x .1875

$3.49

$

In Stock, Qty 9

0

8

Scag 483453-03

Bearing, Plastic

$7.99

$

Usually ships in 2-12 days

0

9

Scag 462944

Pivot, Idler

$76.99

$

Usually ships in 2-12 days

0

10

Scag 483375

Spring, Cutter Deck Idler

$87.99

$

In Stock, only 1 left!

0

11

Scag 462945

Cutter Deck w/Decals, SMLZ-36
(Superseded to 463333)

$879.99

$

Usually ships in 2-12 days

0

12

Scag 43708

Pivot, Idler

$32.99

$

Usually ships in 2-12 days

0

13

Scag 424615

Bracket, Belt Guide

$5.49

$

Usually ships in 2-12 days

0

14

Scag 427325

Belt Cover LH SMZL-36

$50.99

$

Usually ships in 2-12 days

0

15

Scag 04011-29

Screw, 1/4-20 x .375"

$0.99

$

In Stock, Qty 5

0

16

Scag 04001-30

Bolt, Hex Head 3/8-16 x 4.00

$1.49

$

In Stock, only 2 left!

0

17

Scag 461950

Spindle Assembly

$140.99

$

Usually ships in 2-12 days

0

18

Scag 483304

Debris Shield

$6.49

$

Usually ships in 2-12 days

0

19

Scag 483303

Bearing

$13.99

$

In Stock, Qty 17

0

20

Scag 43693

Spacer, Bearing

$22.99

$

Usually ships in 2-12 days

0

21

Scag 462014

Spindle Housing Assembly

$132.99

$

In Stock, only 1 left!

0

22

Scag 43694

Protector, Bearing

$28.99

$

In Stock, only 1 left!

0

23

Scag 43695

Shaft, Spindle

$50.99

$

In Stock, only 1 left!

0

24

Scag 04001-121

Bolt, Hex Head 5/8-11 x 1-1/2"

$2.49

$

In Stock, Qty 20+

0

25

Scag 04030-07

Lockwasher, 5/8" Spring

$1.49

$

In Stock, Qty 19

0

26

Scag 04043-06

Flatwasher, 5/8-.688 x 1-3/4 x .134 HD

$1.99

$

In Stock, Qty 20+

0

27

Scag 482878

Cutter Blade, 18" (52V)

$24.99

$

In Stock, Qty 20+

0

28

Scag 04001-175

Bolt, Hex Head 5/16-18 x 1-1/2" Grade 8

$0.99

$

In Stock, Qty 10

0

29

Scag 04001-77

Bolt, Hex Head, 3/8-16 x 3-1/2"

$1.49

$

In Stock, Qty 7

0

30

Scag 04041-11

Flatwasher, 3/8-.406 x 1-1-1/2 x 7 Gauge

$1.99

$

In Stock, Qty 5

0

31

Scag 482295

Wheel, Anti-Scalp

$9.99

$

In Stock, Qty 20+

0

32

Scag 04117-01

Nut, Flange Head Elastic Stop 5/16-18

$0.99

$

In Stock, Qty 18

0

33

Scag 451926

Shaft Weldment, Guide Roller

$26.99

$

In Stock, only 1 left!

0

34

Scag 04001-09

Bolt, Heax Head 5/16-18 x 1" (48V / 52V)

$0.99

$

In Stock, Qty 20+

0

35

Scag 462031

Discharge Chute Assy. SFZ48

$67.99

$

In Stock, only 1 left!

0

36

Scag 04021-10

HEX NUT, ELASTIC STOP LOCK, 5/16-18

$0.99

$

In Stock, Qty 20+

0

37

Scag 482245

Spring, Discharge Chute

$11.99

$

In Stock, Qty 5

0

38

Scag 04001-154

Bolt, 5/16-18 x 4-3/4" Hex Head

$2.99

$

In Stock, Qty 20+

0

39

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-1/2" - Front

$0.99

$

In Stock, Qty 20+

0

40

Scag 427319

Belt Cover, RH SMZL-36

$44.99

$

Usually ships in 2-12 days

0

41

Scag 04030-03

Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring

$0.99

$

In Stock, Qty 20+

0

42

Scag 04021-22

Lock Nut, 5/16-18 Elastic Stop Grade 8

$0.99

$

In Stock, Qty 20+

0

43

Scag 04019-04

NUT, 3/8-16 SERRATED FLANGE HEX HEAD

$0.99

$

In Stock, Qty 20+

0

44

Scag 04001-31

Capscrew, Hex Head 3/8-16 x 2-1/2"

$0.99

$

In Stock, Qty 20+

0

45

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8 Black

$0.99

$

In Stock, Qty 20+

0

46

Scag 43711

Spacer, Idler Pulley

$6.99

$

Usually ships in 2-12 days

0

47

Scag 04043-04

Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8

$0.99

$

In Stock, Qty 20+

0

48

Scag 424367

Quick Pin, 5/16" Dia.

$2.49

$

In Stock, only 2 left!

0

49

Scag 43063

SPACER, IDLER

$9.99

$

In Stock, only 2 left!

0

50

Scag 04043-11

Flat washer, 1/4-.266 x .875 x .125

$6.49

$

Usually ships in 2-12 days

0
