SZL36-18FR - Scag Liberty Z 36" Zero-Turn Mower, 18hp Kawasaki (SN: P8400001 - P8499999) 36 CUTTER DECK CONTROLS Parts Diagram

Liberty Z 36" Zero-Turn Mower, 18hp Kawasaki

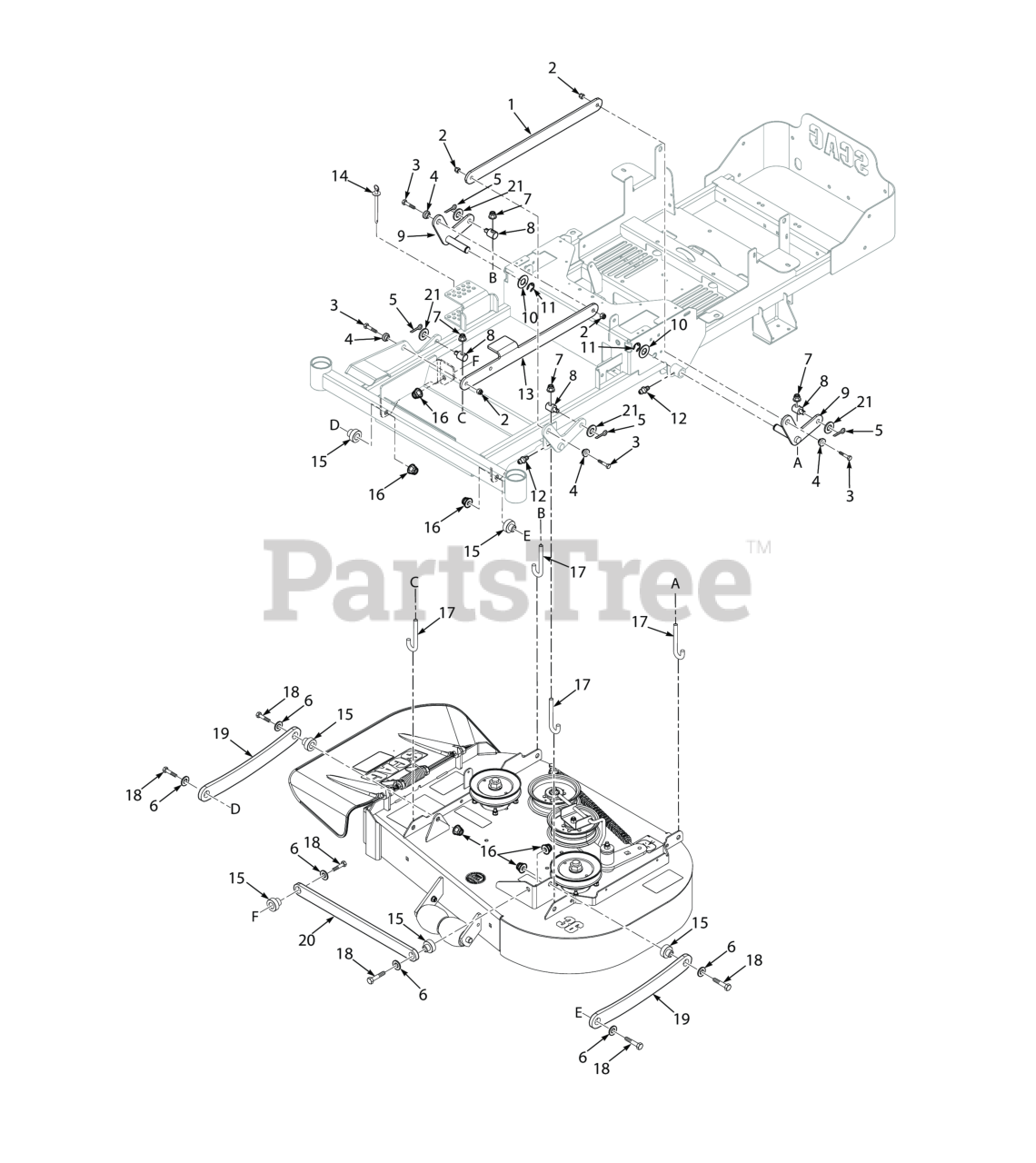

36 CUTTER DECK CONTROLS Parts Diagram

  • Title

1

Scag 428142

Link, Deck Lift - LH

$15.99

$

Usually ships in 2-12 days

0

2

Scag 04117-02

Nut, Flange Elastic Stop Nut, 3/8-16

$0.99

$

In Stock, Qty 20+

0

3

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FS

$0.99

$

In Stock, Qty 11

0

4

Scag 43086

BUSHING, SPEED ADJUSTMENT LEVER

$5.99

$

Usually ships in 2-12 days

0

5

Scag 04061-07

Pin, Cotter 3/16 x 1.0"

$1.49

$

In Stock, Qty 9

0

6

Scag 04040-07

Flatwasher, 1/2 - .531 x 1.062 x .095

$0.99

$

In Stock, Qty 5

0

7

Scag 04021-07

HEX LOCKNUT, ELASTIC STOP, 1/2-13

$0.99

$

In Stock, Qty 20+

0

8

Scag 431072

Joint, Swivel

$13.99

$

In Stock, only 4 left!

0

9

Scag 452962

Lift Bellcrank Weldment

$42.99

$

Usually ships in 2-12 days

0

10

Scag 04041-08

Flatwasher, 3/4 (.766 x 1.250 x .060)

$0.99

$

In Stock, Qty 20+

0

11

Scag 04050-02

RETAINING RING, 3/4" EXTERNAL "E"

$0.99

$

In Stock, Qty 7

0

12

Scag 48114-04

GREASE FITTING, STR. 1/4-28 SELF TAP.

$0.99

$

In Stock, Qty 20+

0

13

Scag 428143

Link, Deck Lift - RH

$30.99

$

Usually ships in 2-12 days

0

14

Scag 485351

Pin Assembly, Deck Height

$8.99

$

Usually ships in 2-12 days

0

15

Scag 431087

Bushing, Deck Lift

$1.49

$

In Stock, Qty 16

0

16

Scag 04117-04

Nut, Elastic Stop 1/2-13, (STT-52 & STTII-52)

$1.49

$

In Stock, only 2 left!

0

17

Scag 44220

Rod, Deck Lift

$3.49

$

In Stock, Qty 13

0

18

Scag 04001-183

Bolt, Hex Head 1/2-13 x 1-3/4"

$1.49

$

In Stock, only 3 left!

0

19

Scag 427302

Pull Arm, Deck

$9.99

$

Usually ships in 2-12 days

0

20

Scag 427303

Lateral Link

$13.99

$

Usually ships in 2-12 days

0

21

Scag 04040-09

Flatwasher, 5/8" (.656 x 1.312 x .095")

$0.99

$

In Stock, Qty 12

0
