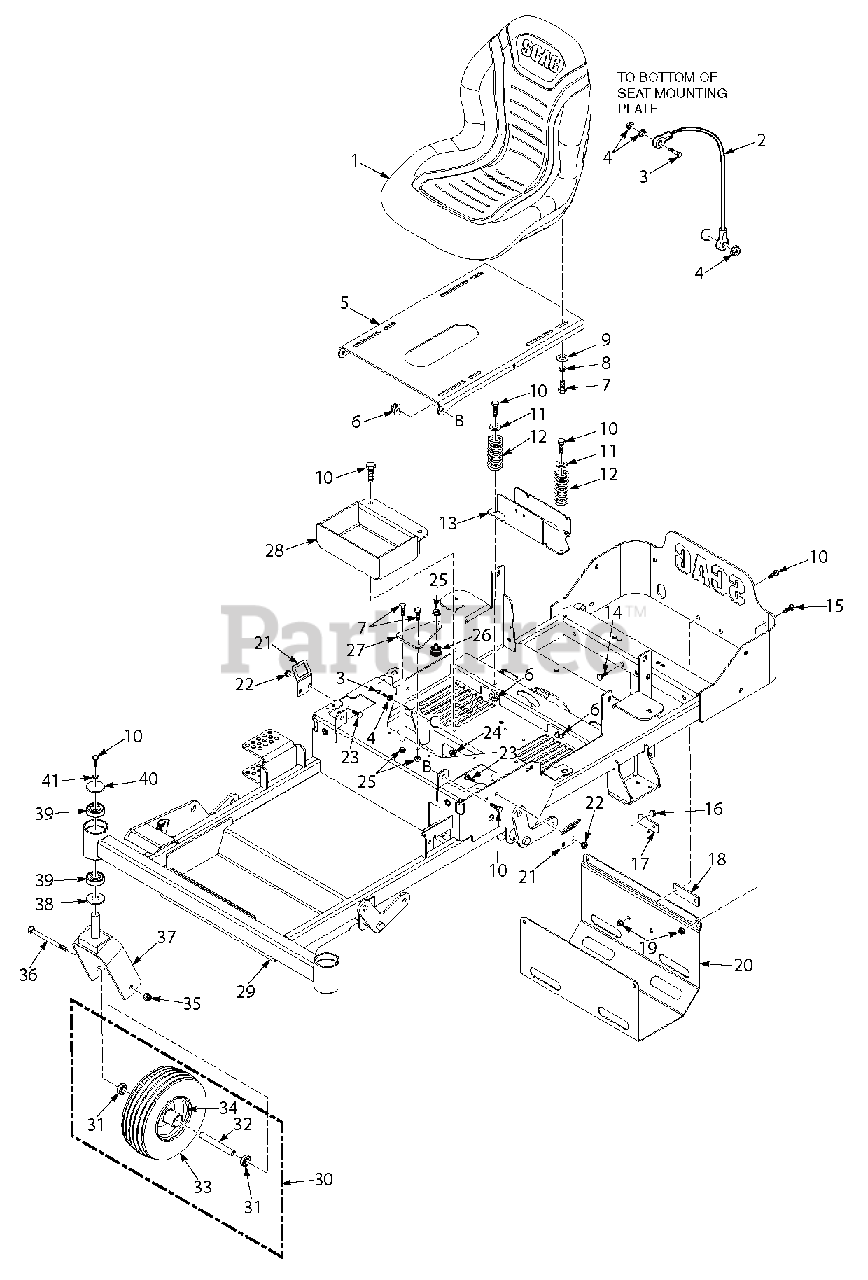

SZL36-18FR (06312) - Scag Liberty Z 36" Zero-Turn Mower, 18hp Kawasaki (SN: M5900001 - M5999999) 36 Sheet Metal Components Parts Diagram

Liberty Z 36" Zero-Turn Mower, 18hp Kawasaki

36 Sheet Metal Components Parts Diagram

  • Title

1

Scag 485361

Seat, SZL

$

$

Not available

2

Scag 483559

Cable, Seat Stop

$8.99

$

Usually ships in 2-12 days

0

3

Scag 04001-59

Bolt, Hex Head 1/4-20 x 1-1/4"

$0.99

$

In Stock, Qty 5

0

4

Scag 04019-02

Nut, 1/4-20 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

5

Scag 462924

Seat-Plate W/Decal
(Superseded to 463033)

$104.99

$

Usually ships in 2-12 days

0

6

Scag 04132-01

Threaded Insert, 3/8-16

$2.49

$

Usually ships in 2-12 days

0

7

Scag 04030-03

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

8

Scag 04040-15

Lockwasher, 5/16"

$0.99

$

In Stock, Qty 20+

0

9

Scag 04041-07

Flatwasher, 5/16-.375 x .875 x .083

$0.99

$

In Stock, Qty 20+

0

10

Scag 04001-19

Bolt, Hex Head 3/8-16 x 1"

$0.99

$

In Stock, Qty 6

0

11

Scag 04041-07

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

12

Scag 483372

Spring, Seat

$12.99

$

Usually ships in 2-12 days

0

13

Scag 427341

Seat Stop

$

$

Not available

14

Scag 04001-12

Bolt, Hex Head 5/8-11 x 1-1/2"

$0.99

$

In Stock, Qty 20+

0

15

Scag 04001-18

Bolt, Hex Head 3/8-16 x 3/4"

$0.99

$

In Stock, Qty 5

0

16

Scag 04117-01

Nut, 5/16-18 Elastic Stop

$0.99

$

In Stock, Qty 18

0

17

Scag 426726

Plate, Anti-Rotation
(Superseded to 427961)

$8.99

$

Usually ships in 2-12 days

0

18

Scag 426843

Plate, Spacer

$7.99

$

Usually ships in 2-12 days

0

19

Scag 04019-04

Nut, 3/8-16 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

20

Scag 427296

Skid Plate, SZL-36

$82.99

$

Usually ships in 2-12 days

0

21

Scag 426727

Bracket, Switch

$10.99

$

Usually ships in 2-12 days

0

22

Scag 04117-03

Nut, 1/4-20 Flange Elastic Stop

$0.99

$

In Stock, Qty 10

0

23

Scag 04003-02

Bolt, Carriage 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

24

Scag 04132-01

Threaded Insert, 3/8-16

$2.49

$

Usually ships in 2-12 days

0

25

Scag 04132-04

Threaded Insert, 5/16-18

$

$

Currently unavailable

26

Scag 481284

Bumper, Rubber

$16.99

$

In Stock, only 3 left!

0

27

Scag 427299

Battery Hold Down
(Superseded to 427621)

$15.99

$

Usually ships in 2-12 days

0

28

Scag 427279

Battery Box

$44.99

$

Usually ships in 2-12 days

0

29

Scag 462927

Frame Assembly, SZL-36
(Superseded to 463035)

$1712.99

$

Usually ships in 2-12 days

0

30

Scag 485207

Caster Wheel Assembly

Note: (incl. 31, 32, 33, 34)

$94.99

$

In Stock, only 1 left!

0

31

Scag 485243

Bearing

$12.99

$

In Stock, Qty 6

0

32

Scag 43974

Spacer, Wheel Bearings

$15.99

$

In Stock, only 2 left!

0

33

Scag 483417

Tire, 11 x 4

$60.99

$

Usually ships in 2-12 days

0

34

Scag 485242

Rim Assembly

Note: (incl. 31, 32)

$87.99

$

In Stock, only 1 left!

0

35

Scag 04021-07

Nut, 1/2-13 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

36

Scag 04001-80

Bolt, Hex Head 1/2-13 x 6-1/2"

$5.99

$

In Stock, Qty 20+

0

37

Scag 451845

Bearing

$102.99

$

Usually ships in 2-12 days

0

38

Scag 424636

Spacer, Yoke

$4.49

$

Usually ships in 2-12 days

0

39

Scag 483466

Bearing

$8.99

$

Usually ships in 2-12 days

0

40

Scag 04041-38

Flatwasher, 3/8-.406 x 2.25 x .188

$3.49

$

In Stock, Qty 8

0

41

Scag 04030-04

Lockwasher, 3/8"

$0.99

$

In Stock, Qty 7

0
