SZL36-18FR (06312) - Scag Liberty Z 36" Zero-Turn Mower, 18hp Kawasaki (SN: M5900001 - M5999999) 36 Electrical System Parts Diagram

Liberty Z 36" Zero-Turn Mower, 18hp Kawasaki

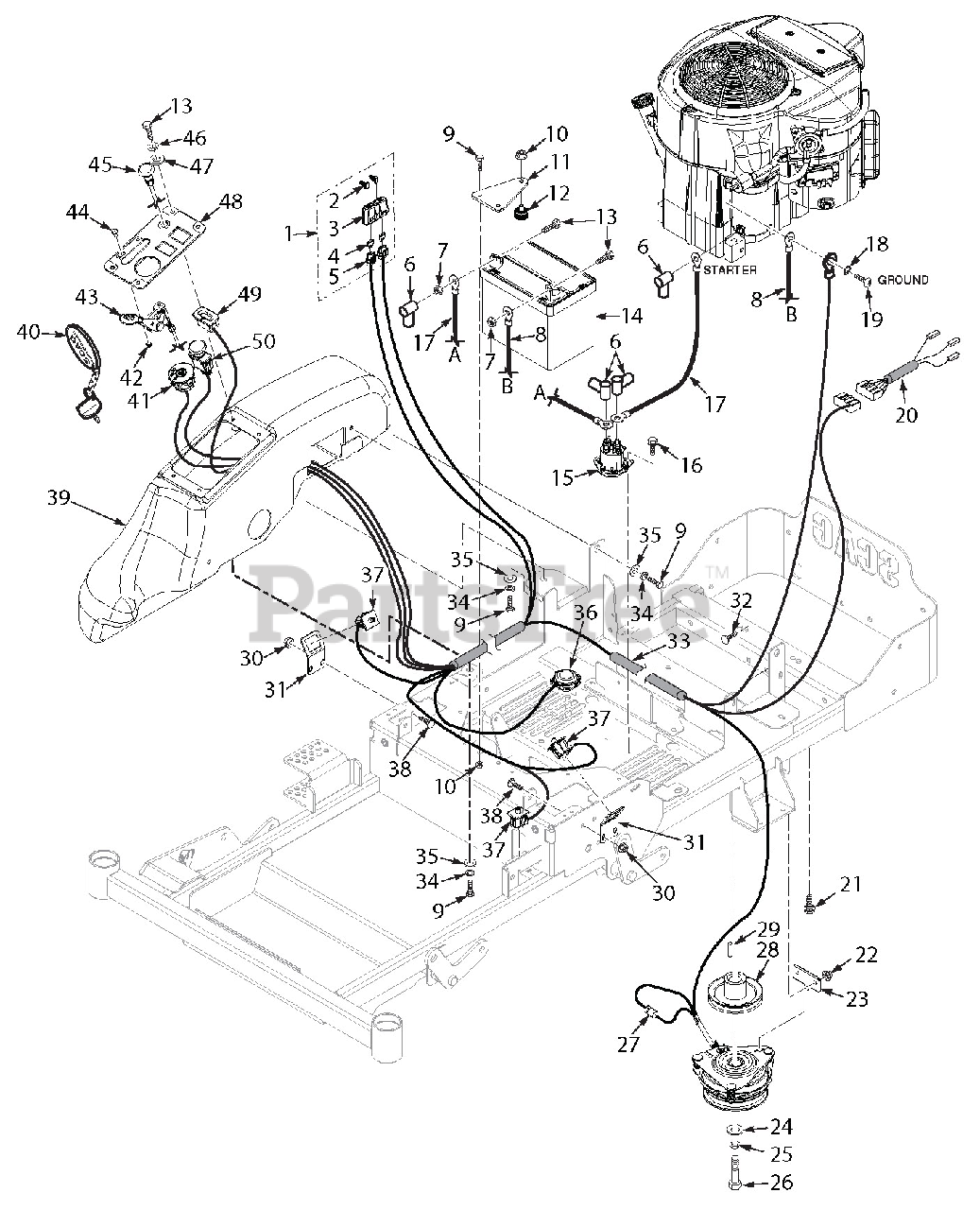

36 Electrical System Parts Diagram

  • Title

1

Scag 483642

Double Fuse Assembly

Note: (incl. 2, 3, 4, 5)

$43.99

$

Usually ships in 2-12 days

0

2

Scag 482588

Clip, Wire

$1.99

$

Usually ships in 2-12 days

0

3

Scag 483571

Cover, Double

$1.99

$

Usually ships in 2-12 days

0

4

Scag 48298

Fuse, 20 Amp

$3.99

$

Usually ships in 2-12 days

0

5

Scag 483629

Fuse Holder

$7.49

$

In Stock, Qty 7

0

6

Scag 48126

Rubber Boot

$8.49

$

Usually ships in 2-12 days

0

7

Scag 04020-02

Nut, 1/4-20 UNC

$0.99

$

In Stock, Qty 10

0

8

Scag 48029-14

Battery Cable, Black 31.50

$16.99

$

Usually ships in 2-12 days

0

9

Scag 04001-08

Bolt, Hex Head 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

10

Scag 04019-03

Nut, 5/16-18 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

11

Scag 427299

Battery Hold Down
(Superseded to 427621)

$15.99

$

Usually ships in 2-12 days

0

12

Scag 481284

Bumper, Rubber

$16.99

$

In Stock, only 3 left!

0

13

Scag 04001-44

Bolt, Hex Head 1/4-20 x 1/2"

$0.99

$

In Stock, Qty 6

0

14

Scag 485212

Battery, 12v - 230CCA

Note: Not available through Scag Power Equipment. Purchase locally.

$

$

Currently unavailable

15

Scag 483278

Solenoid, Sealed

$51.99

$

In Stock, only 1 left!

0

16

Scag 04011-14

Screw, Self-Tapping 1/4-20 x 3/4

$0.99

$

In Stock, Qty 13

0

17

Scag 48029-29

Battery Cable, Red 18.0 w/Braid

$21.99

$

Usually ships in 2-12 days

0

18

Scag 04031-03

Lockwasher, 5/16" Ext.

$0.99

$

Usually ships in 2-12 days

0

19

Scag 04002-06

Bolt, Hex Head M8 x 1-1/4 x 16

$0.99

$

In Stock, only 1 left!

0

20

Scag 483529

Wire Harness Adapter, Kawasaki

$18.99

$

Usually ships in 2-12 days

0

21

Scag 04011-07

Bolt, 3/8-16 x 1-1/4" Serrated Flange Self Tap

$3.49

$

In Stock, Qty 11

0

22

Scag 04117-01

Nut, 5/16-18 Flange Elastic Stop

$0.99

$

In Stock, Qty 18

0

23

Scag 426726

Plate, Anti-Rotation
(Superseded to 427961)

$8.99

$

Usually ships in 2-12 days

0

24

Scag 04041-28

Flatwasher, 7/16-.496 x 1.75 x .25

$2.99

$

In Stock, Qty 12

0

25

Scag 04030-05

Lockwasher, 7/16"

$0.99

$

In Stock, Qty 5

0

26

Scag 04102-06

Bolt, 7/16-20 x 3" w/Patch

$2.49

$

In Stock, Qty 8

0

27

Scag 483958

Diode, 600V 6 Amp

$2.49

$

In Stock, only 4 left!

0

28

Scag 484595

Pulley, 4-1/2" - 1" Bore

$28.99

$

Usually ships in 2-12 days

0

29

Scag 04063-01

Key, 1/4 x 1/4 x 1-1/4"

$1.49

$

In Stock, only 4 left!

0

30

Scag 04117-03

Nut, 1/4-20 Flange Elastic Stop

$0.99

$

In Stock, Qty 10

0

31

Scag 426727

Bracket, Switch

$10.99

$

Usually ships in 2-12 days

0

32

Scag 04003-12

Bolt, Carriage 5/16-18 x 3/4"

$0.99

$

In Stock, Qty 20+

0

33

Scag 485360

Wire Harness

$153.99

$

Usually ships in 2-12 days

0

34

Scag 04030-03

Lockwasher, 5/16"

$0.99

$

In Stock, Qty 20+

0

35

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083

$0.99

$

In Stock, Qty 20+

0

36

Scag 483474

Switch, Double Pole - Twist

$31.99

$

In Stock, only 1 left!

0

37

Scag 483473

Switch, Double Pole - Plunger

$16.99

$

In Stock, Qty 12

0

38

Scag 04003-02

Bolt, Carriage 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

39

Scag 485783

Console Tank, SZL-36

$

$

Not available

40

Scag 462069

Key Fob Assembly

$8.49

$

In Stock, Qty 20+

0

41

Scag 483472

Ignition Switch

$22.99

$

In Stock, Qty 20+

0

42

Scag 04021-26

Nut, #10-24 Elastic Stop

$0.99

$

In Stock, Qty 11

0

43

Scag 483645

Throttle Control, Kawasaki

$23.99

$

In Stock, only 2 left!

0

44

Scag 04003-43

Bolt, Carriage #10-24 x 1/2"

$0.99

$

In Stock, Qty 6

0

45

Scag 483646

Choke Control, Kawasaki

$26.99

$

Usually ships in 2-12 days

0

46

Scag 04030-02

Lockwasher, 1/4"

$0.99

$

In Stock, Qty 20+

0

47

Scag 04040-14

Flatwasher, 1/4-.312 x .750 x .065

$0.99

$

In Stock, only 4 left!

0

48

Scag 462942

Instrument Panel w/Decal, SZL-36

$39.99

$

Usually ships in 2-12 days

0

49

Scag 485216

Hourmeter

$20.99

$

Usually ships in 2-12 days

0

50

Scag 483957

Switch, PTO
(Superseded to 463034)

$37.99

$

In Stock, Qty 20+

0
