SZL36-18FR (06312) - Scag Liberty Z 36" Zero-Turn Mower, 18hp Kawasaki (SN: M5900001 - M5999999) 36 Drive System Components Parts Diagram

Liberty Z 36" Zero-Turn Mower, 18hp Kawasaki

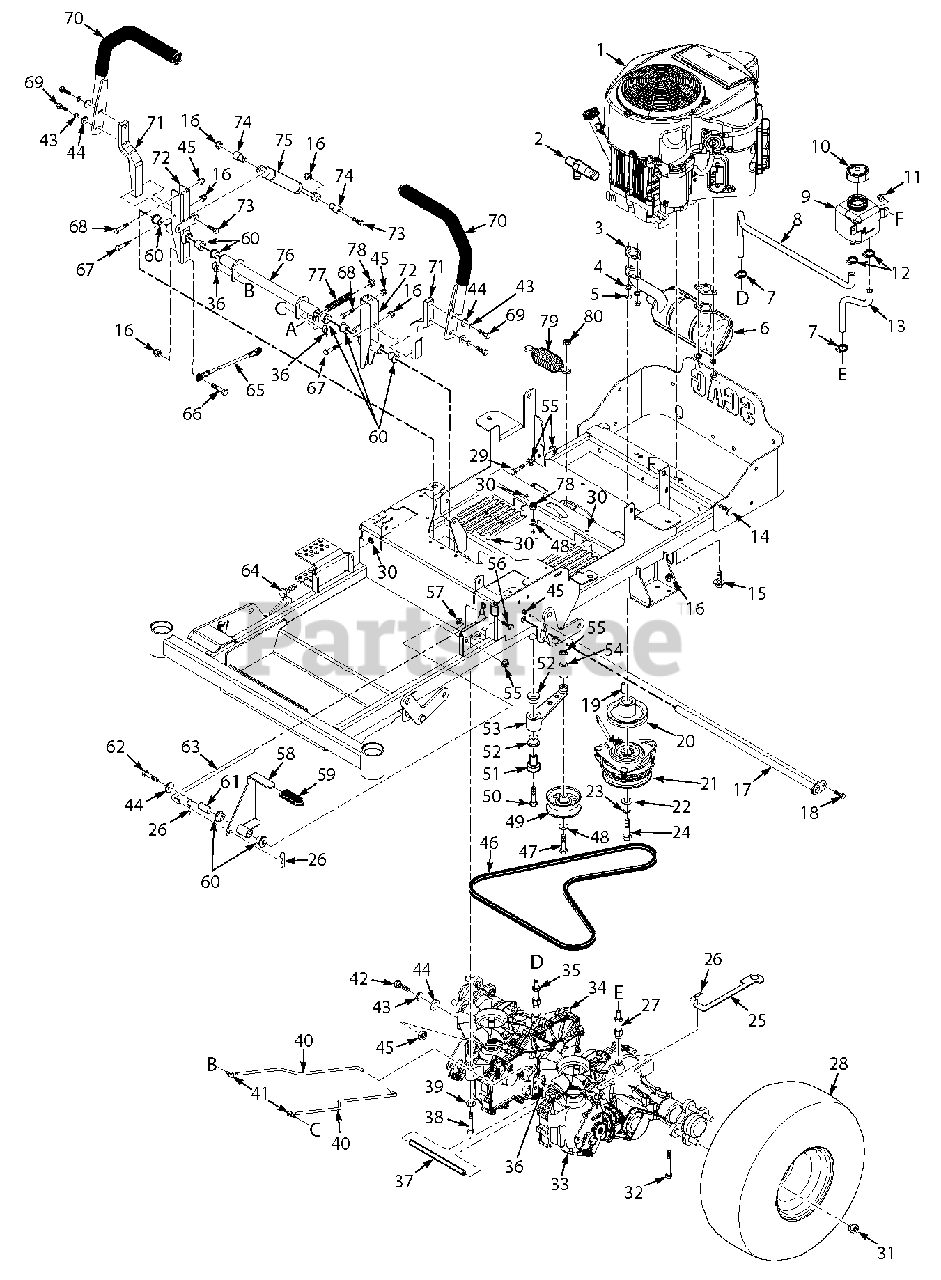

36 Drive System Components Parts Diagram

  • Title

1

Scag 485192

Engine, Kawasaki - FR600V

Note: Available through individual engine manufacturer.

$

$

Currently unavailable

2

Oil Drain, Kawasaki

Note: Available through individual engine manufacturer.

$

$

Not available

3

Scag 484210

Gasket, Exhaust

$

$

Not available

4

Scag 04025-04

Nut, M8 x 1.25 Hex Special

$3.49

$

Usually ships in 2-12 days

0

5

Scag 04033-01

Lockwasher, M8 Metric Spring

$0.99

$

Usually ships in 2-12 days

0

6

Scag 485193

Muffler, Kawasaki FR600V

$99.99

$

Usually ships in 2-12 days

0

7

Scag 48136-13

Clamp, .69 Max. Dia.

$7.49

$

In Stock, Qty 20+

0

8

Scag 485809

Hose, RH Transaxle

$11.99

$

Usually ships in 2-12 days

0

9

Scag 483438

Reservoir Assembly

Note: (incl. 10)

$37.99

$

Usually ships in 2-12 days

0

10

Scag 483514

Cap

$22.99

$

Usually ships in 2-12 days

0

11

Scag 04117-03

Nut, 1/4-20 Flange Elastic Stop

$0.99

$

In Stock, Qty 10

0

12

Scag 48136-05

Clamp, .87 Max. Dia.

$3.99

$

In Stock, only 2 left!

0

13

Scag 485401

Hose, LH Transmission

$14.99

$

In Stock, only 1 left!

0

14

Scag 04003-02

Bolt, Carriage 1/4-20 x 3/4"

$0.99

$

In Stock, Qty 20+

0

15

Scag 04011-07

Screw, Hex Head 3/8-16 x 1-1/4" Self Tap

$3.49

$

In Stock, Qty 11

0

16

Scag 04021-10

Nut, 5/16-18 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

17

Scag 452847

Shaft Weldment, Control Arm

$45.99

$

Usually ships in 2-12 days

0

18

Scag 04001-06

Bolt, Hex Head 1/4-20 x 5/8"

$0.99

$

In Stock, only 3 left!

0

19

Scag 04063-01

Key, 1/4 x 1/4 x 1-1/4"

$1.49

$

In Stock, only 4 left!

0

20

Scag 484595

Pulley, 4-1/2" - 1" Bore

$28.99

$

Usually ships in 2-12 days

0

21

Scag 462715

Clutch, GT1- 1" Bore

$239.99

$

Usually ships in 2-12 days

0

22

Scag 04041-28

Flatwasher, 7/16-.496 x 1.75 x .25

$2.99

$

In Stock, Qty 12

0

23

Scag 04030-05

Lockwasher, 7/16"

$0.99

$

In Stock, Qty 5

0

24

Scag 04102-06

Bolt, 7/16-20 x 3" w/Patch

$2.49

$

In Stock, Qty 8

0

25

Scag 427283

Lever, Dump Valve

$

$

Not available

26

Scag 04062-02

Hair Pin Cotter, .080 x 1.19

$0.99

$

In Stock, Qty 20+

0

27

Scag 482800-02

Fitting, O-Ring x 3/8" Hose

$16.99

$

Usually ships in 2-12 days

0

28

Scag 485801

Wheel Assembly, 20 x 8.0-10

$207.99

$

Usually ships in 2-12 days

0

28

Scag 485802

Rim W/Valve Stem 10 x 5.0

$77.99

$

Usually ships in 2-12 days

0

28

Scag 485803

Tire, 20 x 8.0-10

$137.99

$

Usually ships in 2-12 days

0

29

Scag 04001-136

Bolt, Hex Head 3/8-16 x 1-1/2"

$0.99

$

In Stock, Qty 20+

0

30

Scag 04132-01

Threaded insert, Hex Head (Pressed)

$2.49

$

Usually ships in 2-12 days

0

31

Scag 04028-02

Wheel Nut, 1/2-20 x 13/16

$1.49

$

In Stock, Qty 20+

0

32

Scag 04001-13

Bolt, Hex Head 3/8-16 x 1-1/2"

$0.99

$

In Stock, only 1 left!

0

33

Scag 485806

Transaxle, LH- ZT-2800

$

$

Not available

34

Scag 485807

Transaxle, RH- ZT2800

$

$

Not available

35

Scag 485795-01

Fitting, O-Ring 9/16 Hose

$11.99

$

Usually ships in 2-12 days

0

36

Scag 04069-01

Pin, Rue Cotter - 3/8"

$1.49

$

In Stock, only 4 left!

0

37

Scag 431039

Spacer, Axle

$9.99

$

In Stock, only 1 left!

0

38

Scag 04001-39

Bolt, Hex Head 5/16-18 x 2-1/4

$0.99

$

In Stock, Qty 10

0

39

Scag 04040-15

Flatwasher, 5/16-.375 x .875 x .083

$0.99

$

In Stock, Qty 20+

0

40

Scag 44225

Rod, Brake

$26.99

$

Usually ships in 2-12 days

0

41

Scag 43876

Joint, Swivel

$10.99

$

Usually ships in 2-12 days

0

42

Scag 04001-04

Bolt, Hex Head 1/4-20 x 1-1/2

$0.99

$

In Stock, Qty 16

0

43

Scag 04030-04

Lockwasher, 3/8"

$0.99

$

In Stock, Qty 8

0

44

Scag 04041-07

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

45

Scag 04021-08

Nut, 1/4-20 Elastic Stop Nut

$0.99

$

In Stock, Qty 9

0

46

Scag 485808

Belt, Transmission SZL-36

$27.99

$

In Stock, only 1 left!

0

47

Scag 04001-51

Bolt, Hex Head 3/8-16 x 3-3/4"

$1.49

$

In Stock, Qty 8

0

48

Scag 04043-04

Flatwasher, 3/8-.391 x .938 x .105

$0.99

$

In Stock, Qty 20+

0

49

Scag 483638

Pulley, 3-1/2" Idler
(Superseded to 486045)

$20.99

$

In Stock, Qty 20+

0

50

Scag 04001-54

Bolt, Hex Head 3/8-16 x 3"

$0.99

$

In Stock, Qty 9

0

51

Scag 43715

Shaft, Pivot Idler Arm

$17.99

$

In Stock, only 1 left!

0

52

Scag 483453-04

Bearing, .750 I.D. Plastic

$3.99

$

In Stock, Qty 18

0

53

Scag 462122

Idler Arm Assembly

Note: (incl. 52)

$

$

Not available

54

Scag 43720

Spacer, Pump Idler

$4.99

$

In Stock, only 1 left!

0

55

Scag 04019-04

Nut, 3/8-16 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

56

Scag 04001-11

Bolt, Hex Head 5/16-18

$0.99

$

In Stock, Qty 6

0

57

Scag 04019-02

Nut, 1/4-20 Serrated Flange

$0.99

$

In Stock, Qty 20+

0

58

Scag 462943

Brake Lever Assembly, SZL-36

$47.99

$

Usually ships in 2-12 days

0

59

Scag 482102

Grip, Brake Handle

$3.99

$

In Stock, only 3 left!

0

60

Scag 483453-05

Bearing

$2.49

$

Usually ships in 2-12 days

0

61

Scag 43969

Pivot, Brake Lever

$2.99

$

Usually ships in 2-12 days

0

62

Scag 04001-31

Bolt, Hex Head 3/8-16 x 2-1/2"

$0.99

$

In Stock, Qty 20+

0

63

Scag 44219

Rod, Upper Brake Linkage
(Superseded to 44231)

$11.99

$

Usually ships in 2-12 days

0

64

Scag 04107-08

Bolt, Hex Head 3/8-16 x 3.0

$2.49

$

Usually ships in 2-12 days

0

65

Scag 485794

Linkage Assembly, Steering

$56.99

$

Usually ships in 2-12 days

0

66

Scag 04001-10

Bolt, Hex Head 5/16-18 x 1-1/4

$0.99

$

In Stock, Qty 14

0

67

Scag 04001-12

Bolt, Hex Head 5/16-18 x 1-3/4"

$0.99

$

In Stock, Qty 20+

0

68

Scag 04001-02

Bolt, Hex Head 1/4-20 x 1-3/4"

$0.99

$

Usually ships in 2-12 days

0

69

Scag 04001-32

Bolt, Hex Head 3/8-16 x 1-1/4"

$0.99

$

In Stock, Qty 12

0

70

Scag 462925

Handlebar W/ Grip, SZL-36

$55.99

$

Usually ships in 2-12 days

0

71

Scag 485835

Lever, Control Arm

$24.99

$

Usually ships in 2-12 days

0

72

Scag 462941

Control Arm Weldment, SZL-36

$70.99

$

Usually ships in 2-12 days

0

73

Scag 04001-17

Bolt, Hex Head 5/16-18 x 1-1/2"

$0.99

$

In Stock, Qty 6

0

74

Scag 43833

Spacer, Pump Dampener

$18.99

$

Usually ships in 2-12 days

0

75

Scag 484193

Dampener

$72.99

$

In Stock, only 2 left!

0

76

Scag 462926

Bellcrank Assembly, Brake
(Superseded to 463023)

$96.99

$

Usually ships in 2-12 days

0

77

Scag 483538

Spring, Brake

$13.99

$

Usually ships in 2-12 days

0

78

Scag 04021-09

Nut, 3/8-16 x 16 Elastic Stop

$0.99

$

In Stock, Qty 20+

0

79

Scag 483087

Spring, Transmission Drive

$45.99

$

In Stock, only 1 left!

0

80

Scag 04021-05

Nut, 3/8-16 Center Lock

$0.99

$

In Stock, Qty 20+

0
