SZC36A-17KA - Scag Z-Cat 36" Zero-Turn Mower, 17hp Kawasaki (SN: A420001 - A429999) SZC Roll Over Protection System Parts Diagram

Z-Cat 36" Zero-Turn Mower, 17hp Kawasaki

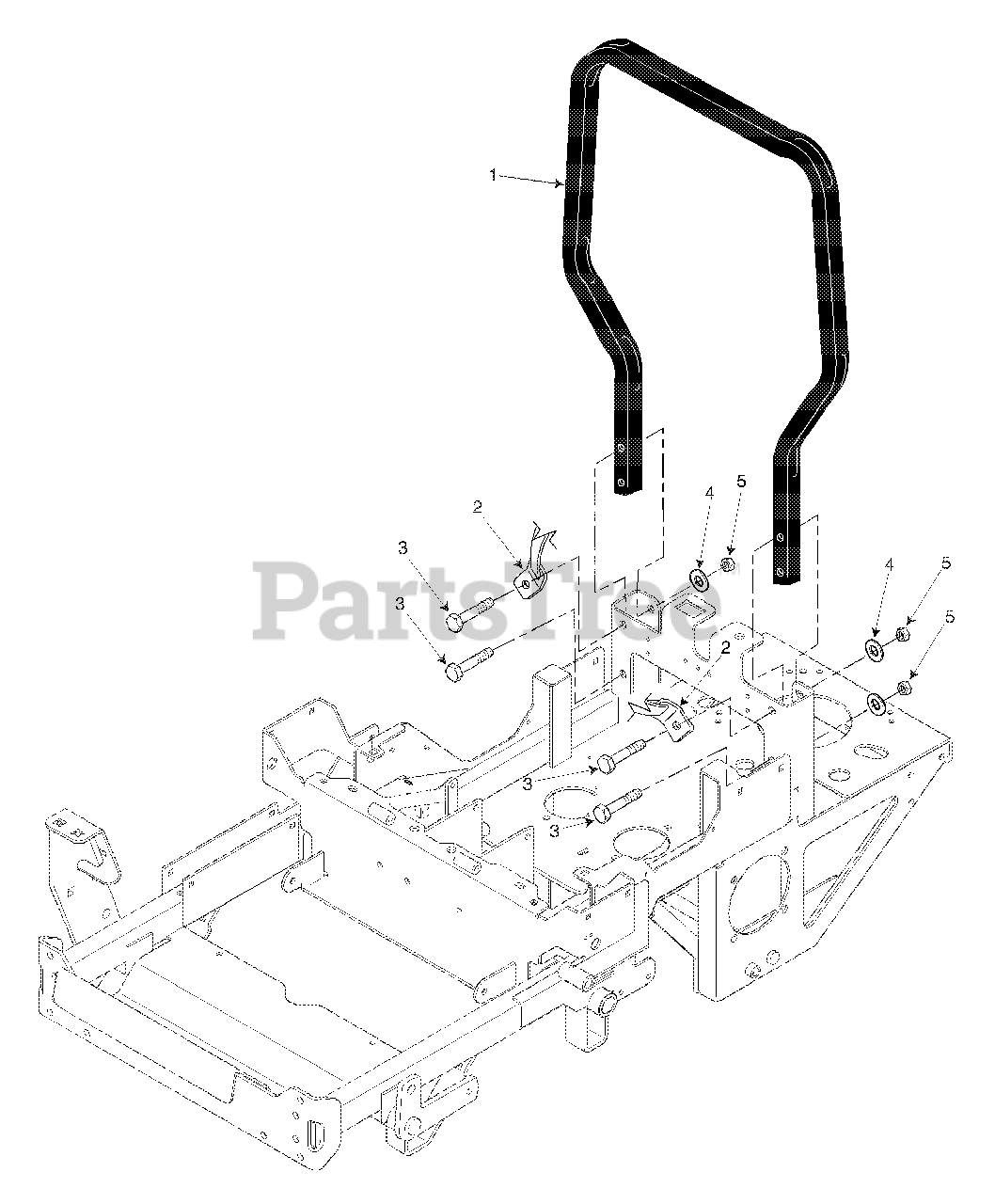

SZC Roll Over Protection System Parts Diagram

  • Title
1

Scag 483140

SZC ROPS

$

$

Not available

2

Scag 483150

Seat Belt, ROPS

$173.99

$

Usually ships in 2-12 days

0

3

Scag 04001-145

Bolt, Hex Head 1/2-13 x 3-1/2"

$2.49

$

In Stock, only 2 left!

0

4

Scag 04040-13

Flatwasher, 1/2-.562 x 1.375 x .109

$0.99

$

In Stock, Qty 20+

0

5

Scag 04021-19

Nut, Center Lock 1/2-13

$0.99

$

In Stock, Qty 5

0
