SZ-60 KW (53YI2PUD050) - Cub Cadet 60" Tank Zero-Turn Mower, Kawasaki (2015) Control Assembly Parts Diagram

60" Tank Zero-Turn Mower, Kawasaki

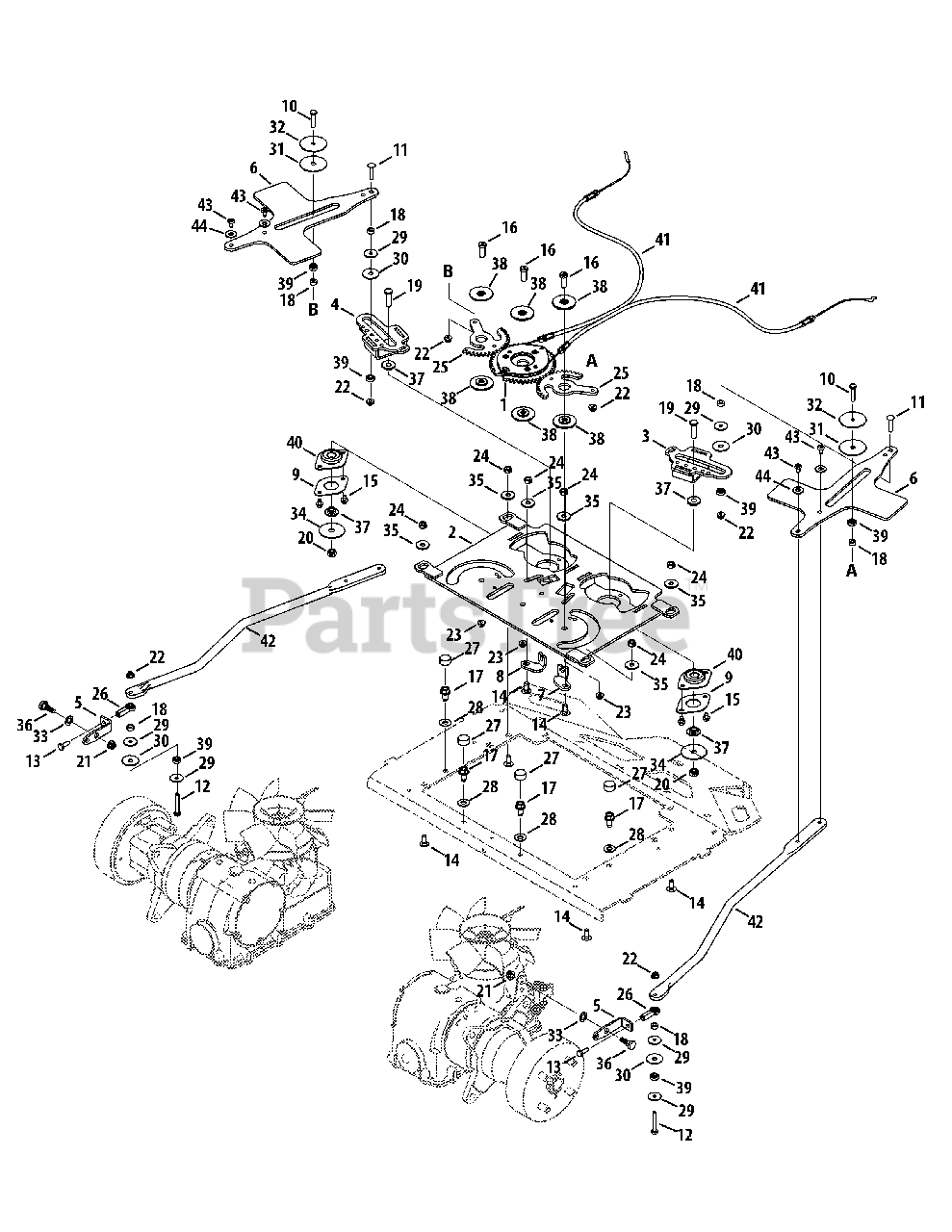

Control Assembly Parts Diagram

  • Title

1

Cub Cadet 680-00144

Pump Control Gear
(Superseded to 680Z00144)

$61.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 680-00226A-0637

Pump Control Mounting Plate

$130.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 680-00240

Pump Control Cam Assembly, RH

$55.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 680-00241

Pump Control Cam Assembly, LH
(Superseded to 680Z00241)

$61.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-07439

Pump Control Bracket

$14.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-07803A

Pump Steering Arm Actuator

$36.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-08559-0637

Steering Cable Bracket
(Superseded to 703E08559)

$171.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-08561-0637

Steering Cable Bracket
(Superseded to 703E08561)

$171.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-08814-0637

Retainer Bearing Plate
(Superseded to 703E08814)

$6.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-0106

Hex Cap Screw, 1/4-20 x 1.25

$3.99

$

In Stock, only 2 left!

0

11

Cub Cadet 710-0111

Carriage Screw, 1/4-20 x 1.25

$3.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 710-0136

Hex Cap Screw, 1/4-20 x 1.75

$3.99

$

In Stock, only 2 left!

0

13

Cub Cadet 710-0412

Hex Cap Screw, 1/4-28 x .75

$5.99

$

In Stock, Qty 8

0

14

Cub Cadet 710-0451

Carriage Bolt, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 710-0599

Hex Flange Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 710-05340

Socket Head Screw, 3/8-16 x 1.00

$3.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 710-0623

Screw, 3/8-16 x .75

$4.49

$

In Stock, only 2 left!

0

18

Cub Cadet 750-05297

Spacer, .256 x .500 x .240

$4.49

$

In Stock, Qty 5

0

19

Cub Cadet 710-0723

Hex Cap Screw, 3/8-16 x 1.25

$4.99

$

In Stock, only 3 left!

0

20

Cub Cadet 712-0375

Nut, 3/8-16, Hexlock

$4.49

$

In Stock, Qty 6

0

21

Cub Cadet 712-04063

Nut, 5/16-18, Flangelock

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 712-04064

Nut, 1/4-20, Flangelock

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 712-04065

Nut, 3/8-16, Flnagelock

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 912-3009

Nut, 5/16-18, Hexlock
(Superseded to 712-3009)

$

$

Not available

25

Cub Cadet 917-04825

Yoke Steering Gear

$25.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 723-04077

Rod End, 1/4-28

$22.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 731-1490

Slide Cap

$4.49

$

In Stock, Qty 5

0

28

Cub Cadet 936-0300

Washer, .406 x .875 x .059
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 736-04511

Washer, .255 x 1.00 x .060

$3.49

$

In Stock, only 3 left!

0

30

Cub Cadet 736-04596

Washer, .355 x 1.25 x .060

$3.49

$

Usually ships in 3-6 days

0

31

Cub Cadet 736-04630

Washer, .356 x 2.00 x .060

$6.49

$

Usually ships in 3-6 days

0

32

Cub Cadet 736-04631

Washer, .260 x 2.00 x .060

$6.49

$

In Stock, only 2 left!

0

33

Cub Cadet 736-3024

Washer, .469 x .75 x .060

$3.99

$

In Stock, only 1 left!

0

34

Cub Cadet 736-3040

Washer, .406 x 1.92 x .060

$6.49

$

In Stock, Qty 8

0

35

Cub Cadet 736-3089

Washer, .345 x 1.00 x .100

$

$

Not available

36

Cub Cadet 938-0296

Shoulder Screw, .437 x .268, 5/16-18
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 738-04154

Shoulder Spacer, .38 x 1.00 x .31

$5.49

$

In Stock, Qty 17

0

38

Cub Cadet 738-04453

Shoulder Spacer, .853 x .385 x .100

$10.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 741-04425

Ball Bearing, .250 x .625

$14.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 741-04566

Ball Bearing, .625

$15.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 946-04739A

Transmission Link Control Cable

$31.99

$

In Stock, only 4 left!

0

42

Cub Cadet 747-05649

Pump Control Rod
(Superseded to 747-05649A)

$38.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 738-04425

Shoulder Screw, .342 x .335, 1/4-28

$4.49

$

In Stock, Qty 20+

0

44

Cub Cadet 936-0275

Flat Washer, .344 x .688 x .065
(Superseded to 736-0275)

$

$

Not available
