SZ-60 KH EFI (53RE2PUD050) - Cub Cadet 60" Tank Zero-Turn Mower, Kohler EFI (2016) Seat Parts Diagram

60" Tank Zero-Turn Mower, Kohler EFI

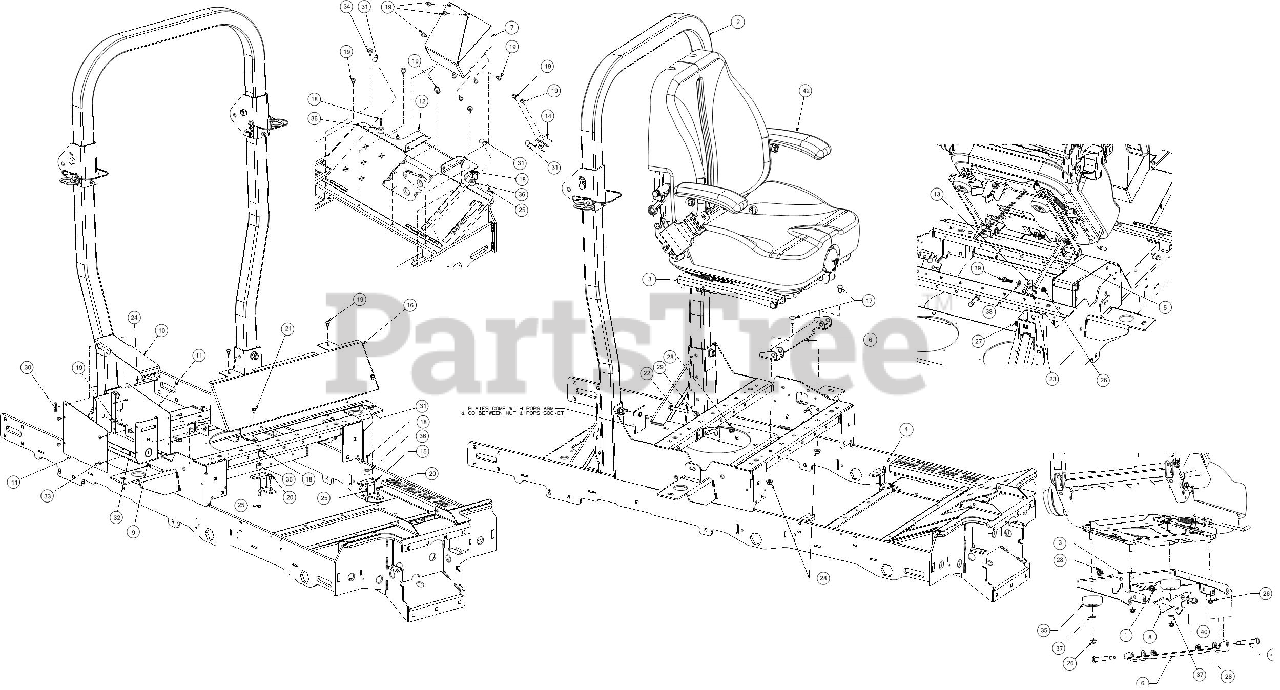

Seat Parts Diagram

  • Title

1

Cub Cadet 01008140P

HANDLE SPRING (LH)

$34.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 680-00175

ROPS ASSEMBLY

$876.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 703-07814-0637

SEAT MOUNT BRACKET

$91.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-08016-0637

FLOOR TRAY PANEL

$91.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-08198-0637

SEAT LOCKOUT BRACKET

$12.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-08241-0637

SEAT BRACKET

$40.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-08323-0637

COLUMN COVER

$63.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-08480-4021

SEAT LATCH LEVER

$31.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-08511-0637

STORAGE TOOLBOX

$35.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-08513-0637

STORAGE TOOLBOX LID

$35.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 703-08519-0637

SIDE PANEL BOX

$17.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 703-08596-0637

STEERING PANEL COVER

$114.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 703-08758A-0637

SEAT LOCKOUT MOUNT

$31.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 703-08857-0637

STOP BRACKET
(Superseded to 703E08857)

$27.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 703-09723A-0637

FLOOR MOUNT BRACKET

$22.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 703-09942-0637

FLOOR PANEL

$72.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 710-0389

CARRIAGE BOLT 3/8-16 X .750 GR5

$4.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 710-04868

SCREW 10-24 X .750

$3.49

$

Usually ships in 3-6 days

0

19

Cub Cadet 710-05070A

SCREW 1/4-20 X .5

$6.99

$

In Stock, Qty 7

0

20

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 710-0653

SCREW 1/4-20 X .375

$4.49

$

In Stock, Qty 7

0

22

Cub Cadet 710-0859

HEX SCREW-3/8-16X2.5 GR5

$6.99

$

In Stock, Qty 17

0

23

Cub Cadet 710-3015

SCREW 1/4-20X.75 GR5

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 711-05607A

CLEVIS PIN

$5.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 712-0161

HEX NUT

$4.49

$

In Stock, Qty 20+

0

26

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

28

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

29

Cub Cadet 912-3017

HEX NUT
(Superseded to 712-3017)

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

31

Cub Cadet 726-04072A

RATCHET CLIP

$3.99

$

In Stock, Qty 13

0

32

Cub Cadet 727-04385

ADHESIVE PAD

$7.49

$

Usually ships in 3-6 days

0

33

Cub Cadet 728-04016

FULL TUBULAR RIVET

$3.49

$

Usually ships in 3-6 days

0

34

Cub Cadet 735-0271A

BUMPER, .62 DIA X .3

$8.99

$

In Stock, only 1 left!

0

35

Cub Cadet 735-04286

RUBBER BUMPER

$8.99

$

In Stock, Qty 12

0

36

Cub Cadet 735-04287

RUBBER BUMPER

$3.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 936-0275

FLAT WASHER
(Superseded to 736-0275)

$

$

Not available

38

Cub Cadet 736-3024

FLAT WASHER .469X.750X.054

$3.99

$

In Stock, only 1 left!

0

39

Cub Cadet 938-0296

SHOULDER SCREW .437
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 738-0966A

SHOULDER SCREW .50X.925

$4.99

$

In Stock, Qty 19

0

41

Cub Cadet 738-1011A

SHOULDER SCREW .50 X 2.23 3/8-16

$8.49

$

In Stock, Qty 11

0

42

Cub Cadet 757-05011A

SEAT (COMMERCIAL)

$1088.99

$

Usually ships in 3-6 days

0
