SZ-60 KH EFI (53RE2PUD050) - Cub Cadet 60" Tank Zero-Turn Mower, Kohler EFI (2016) Front Axle Parts Diagram

60" Tank Zero-Turn Mower, Kohler EFI

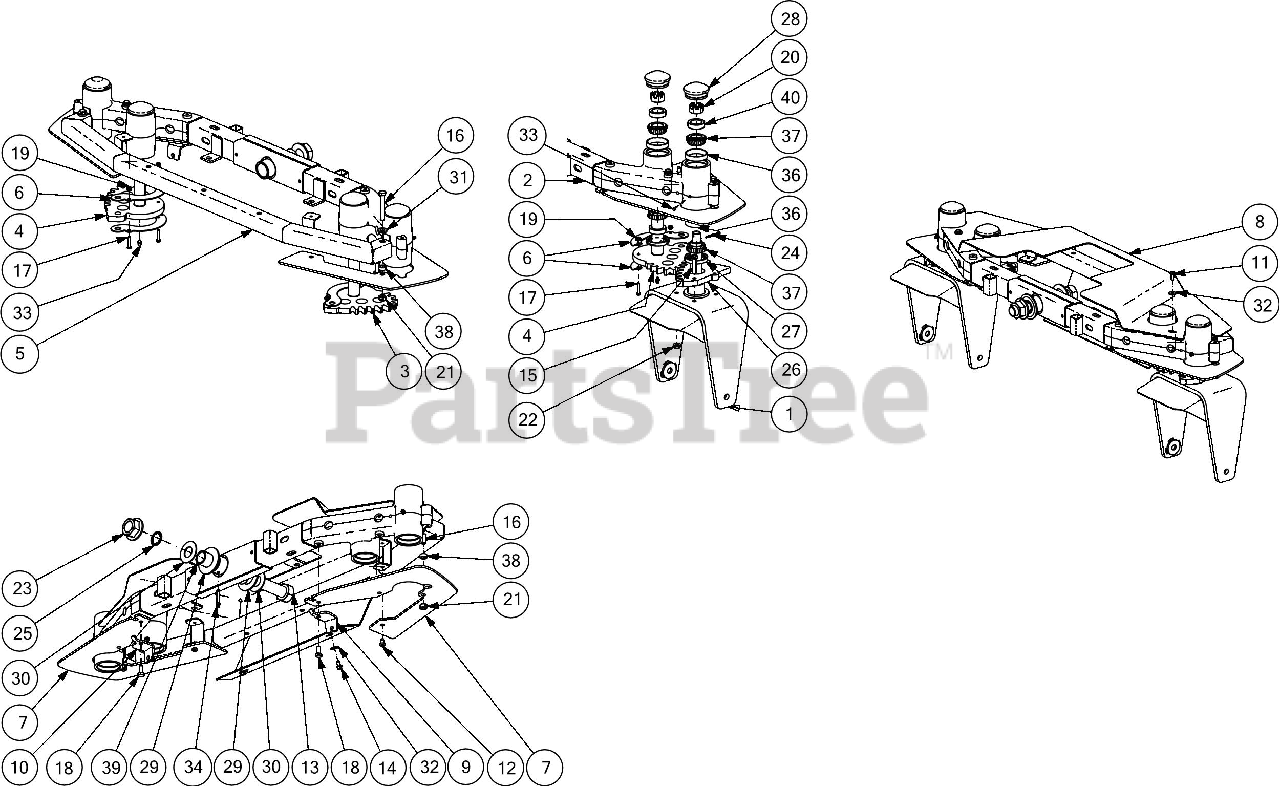

Front Axle Parts Diagram

  • Title

1

Cub Cadet 680-00138-0637

TANK YOKE ASSEMBLY

$211.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 680-00153-0637

AXLE ASSEMBLY

$710.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 980-00154

STEERING GEAR (LH)

$149.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 980-00155

STEERING GEAR (RH)

$149.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 680-00165-0637

FRONT BUMPER

$175.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-07931A

MOUNT BRACKET

$16.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-08383-0637

GEAR PANEL COVER

$55.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-08396-0637

AXLE COVER

$146.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-08800-0637

CABLE MOUNT BRACKET (RH)

$16.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 703-08801-0637

CABLE MOUNT BRACKET (LH)

$19.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-0433

SCREW 1/4-20 X .62 SPEC GR5

$4.49

$

In Stock, only 2 left!

0

12

Cub Cadet 710-05070A

SCREW 1/4-20 X .5

$6.99

$

In Stock, Qty 7

0

13

Cub Cadet 710-05189

SCREW 1-14 X 7.0 GR5
(Superseded to 710-05189C)

$59.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 710-0805A

SCREW 5/16-18 X 1.5 LG

$4.49

$

In Stock, only 3 left!

0

16

Cub Cadet 710-0859

HEX SCREW-3/8-16X2.5 GR5

$6.99

$

In Stock, Qty 16

0

17

Cub Cadet 710-1194

SCREW #10-24 X 1.00 GR5.1

$3.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 710-1880

SCREW 5/16-18 X .750

$4.99

$

In Stock, Qty 11

0

19

Cub Cadet 712-0161

HEX NUT

$4.49

$

In Stock, only 2 left!

0

20

Cub Cadet 712-0359

HEX NUT CASTLE 3/4-16

$11.99

$

In Stock, only 1 left!

0

21

Cub Cadet 712-0375

HEX NUT

$4.49

$

In Stock, Qty 6

0

22

Cub Cadet 712-04054

HEX NUT

$4.99

$

In Stock, Qty 20+

0

23

Cub Cadet 712-04310

HEX FLANGE NUT

$9.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 714-0162

COTTER PIN-5/32 DIA

$4.99

$

In Stock, Qty 20+

0

25

Cub Cadet 716-04191

RETAINING RING

$3.99

$

In Stock, only 4 left!

0

26

Cub Cadet 917-04822

STEERING GEAR YOKE

$71.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 721-04462

SEAL

$10.99

$

In Stock, Qty 10

0

28

Cub Cadet 731-07348

AXLE GREASE CAP

$8.99

$

In Stock, only 2 left!

0

29

Cub Cadet 736-04604

BELL WASHER 1.25ID X 2.5 X .180

$8.49

$

In Stock, only 3 left!

0

30

Cub Cadet 736-04605

FLAT WASHER 1.0 X 2.0 X .075

$4.49

$

Usually ships in 3-6 days

0

31

Cub Cadet 736-3010

FLAT WASHER

$4.99

$

In Stock, only 2 left!

0

32

Cub Cadet 736-3090

FLAT WASHER

$6.99

$

In Stock, only 1 left!

0

33

Cub Cadet 737-04345

GREASE ZERT 1/4-28

$4.99

$

In Stock, Qty 6

0

34

Cub Cadet 737-04352

GREASE FITTING

$15.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 741-04548

BEARING CUP

$8.99

$

In Stock, Qty 14

0

37

Cub Cadet 741-04549

BEARING CONE

$19.99

$

In Stock, Qty 14

0

38

Cub Cadet 750-04776

SPACER-.380 ID X .625 OD X .265

$5.49

$

In Stock, only 2 left!

0

39

Cub Cadet 750-05438

SPACER

$25.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 750-05600

SPACER

$7.49

$

In Stock, only 1 left!

0
