SZ-60 KH EFI (53RE2PUD050) - Cub Cadet 60" Tank Zero-Turn Mower, Kohler EFI (2016) Engine Accessoreis Parts Diagram

60" Tank Zero-Turn Mower, Kohler EFI

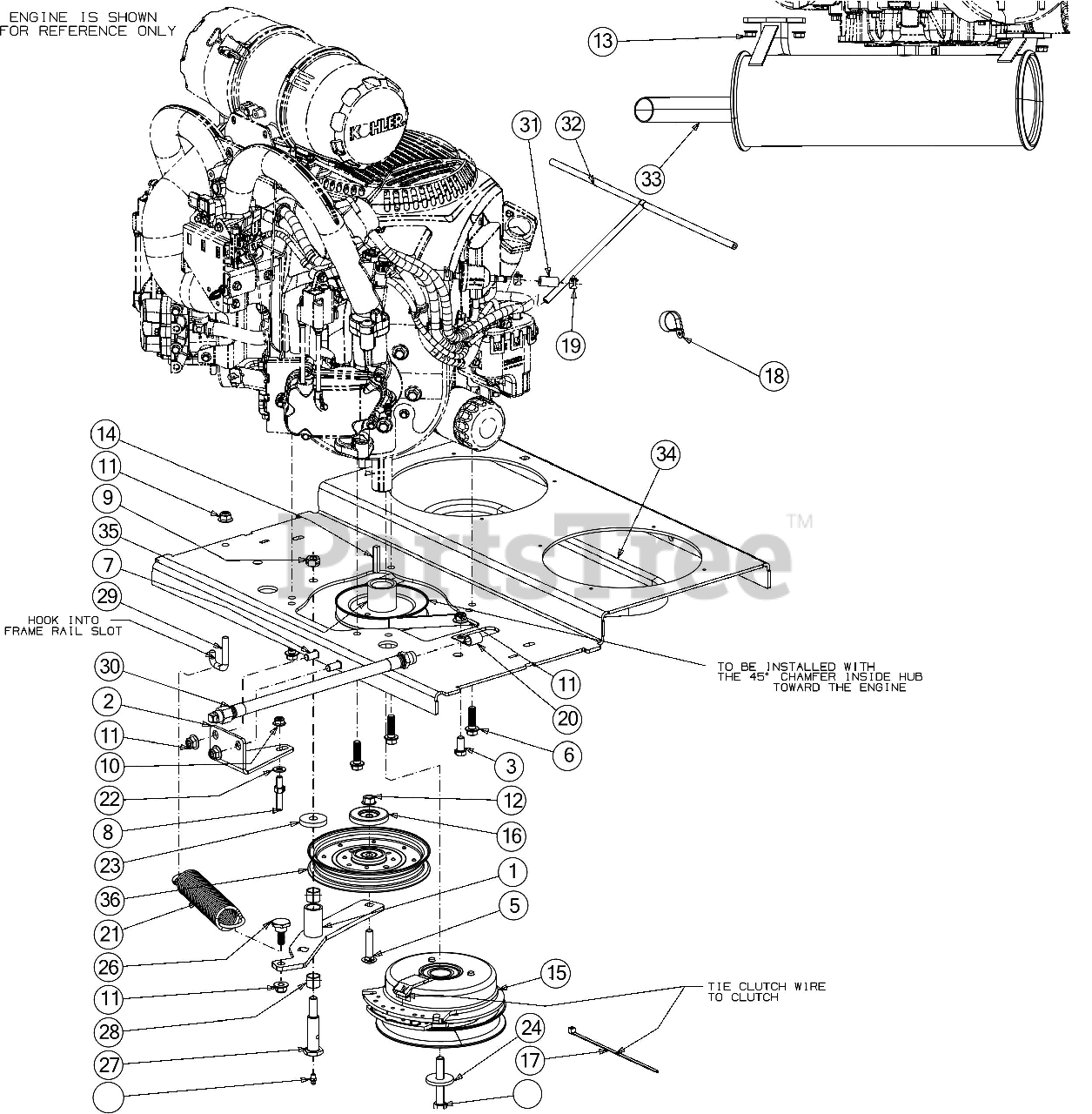

Engine Accessoreis Parts Diagram

  • Title

1

Cub Cadet 680-00227A-0637

TRANSMISSION IDLER BRACKET
(Superseded to 680E00227A)

$34.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-08607-0637

RETAINER BRACKET

$25.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-0216

HEX SCREW 3/8-16 x .75

$4.49

$

In Stock, Qty 16

0

4

Cub Cadet 710-04377

SCREW 7/16-20:2.75 GR5

$11.99

$

In Stock, only 1 left!

0

5

Cub Cadet 710-05376

CARRIAGE BOLT 3/8-16 x 1.75 GR5

$4.49

$

In Stock, only 3 left!

0

6

Cub Cadet 710-06359

SCREW 3/8-16 x 1.25 GR5
(Superseded to 710-06359A)

$4.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-3168

CARRIAGE BOLT 3/8-16 x 1.00 GR5

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 711-1637

STUD

$33.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 712-0290

HEX NUT

$4.99

$

In Stock, Qty 11

0

10

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 912-0431

HEX LOCK NUT

$4.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-04312

HEX FLANGE NUT

$3.99

$

In Stock, only 3 left!

0

14

Cub Cadet 714-0118

SQUARE KEY 1/4 x 1.50

$6.99

$

In Stock, only 4 left!

0

15

Cub Cadet 917-04967

ELECTRIC PTO CLUTCH

$1081.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 721-04516

PULLEY CAP

$14.99

$

In Stock, only 2 left!

0

17

Cub Cadet 725-0157

7" CABLE TIE

$3.99

$

In Stock, only 2 left!

0

18

Cub Cadet 726-04119

DRAIN HOSE CLAMP

$3.49

$

Usually ships in 3-6 days

0

19

Cub Cadet 726-04123A

HOSE CLAMP

$3.99

$

In Stock, Qty 6

0

20

Cub Cadet 726-04124

J TYPE CLIP

$3.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 732-04915A

EXTENSION SPRING

$23.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 936-0275

FLAT WASHER
(Superseded to 736-0275)

$

$

Not available

23

Cub Cadet 736-3017

FLAT WASHER 47 x 1.50 x .225

$10.99

$

In Stock, only 4 left!

0

24

Cub Cadet 736-3082A

FLAT WASHER .45 x 1.5 x .172 HT

$9.99

$

In Stock, Qty 16

0

25

Cub Cadet 937-0146

GREASE FITTING

$5.49

$

In Stock, only 2 left!

0

26

Cub Cadet 738-1126

SHOULDER SCREW .625 x .302 x 3/8-16

$12.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 738-3102

SHOULDER BOLT 7/16-14

$21.99

$

In Stock, only 1 left!

0

28

Cub Cadet 741-04555

SLEEVE BEARING

$16.99

$

In Stock, only 2 left!

0

29

Cub Cadet 747-05707

ROD SPRING HOOK

$14.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 751-10291A

OIL DRAIN HOSE
(Superseded to 751-10291C)

$52.99

$

In Stock, only 2 left!

0

31

Cub Cadet 751-10349-84

FUEL HOSE LOW PERMEATION

$59.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 751-12282

ROLLOVER VENT HOSE ASSEMBLY
(Superseded to 751-12282A)

$75.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 737-04341

FUEL FITTING

Note: (Not Shown)

$6.49

$

Usually ships in 3-6 days

0

32

Cub Cadet 751-12089

VENT HOSE 3/16 ID

Note: (Not Shown)

$5.49

$

Usually ships in 3-6 days

0

33

Cub Cadet 751-14931

MUFFLER

$267.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 954-04320

TRANSMISSION BELT

$48.99

$

In Stock, only 1 left!

0

35

Cub Cadet 756-04480A

DRIVE PULLEY
(Superseded to 756-04480B)

$53.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 756-04487

IDLER PULLEY

$66.99

$

In Stock, only 1 left!

0
