SZ-60 KH EFI (53RE2PUD050) - Cub Cadet 60" Tank Zero-Turn Mower, Kohler EFI (2016) Electrical Parts Diagram

60" Tank Zero-Turn Mower, Kohler EFI

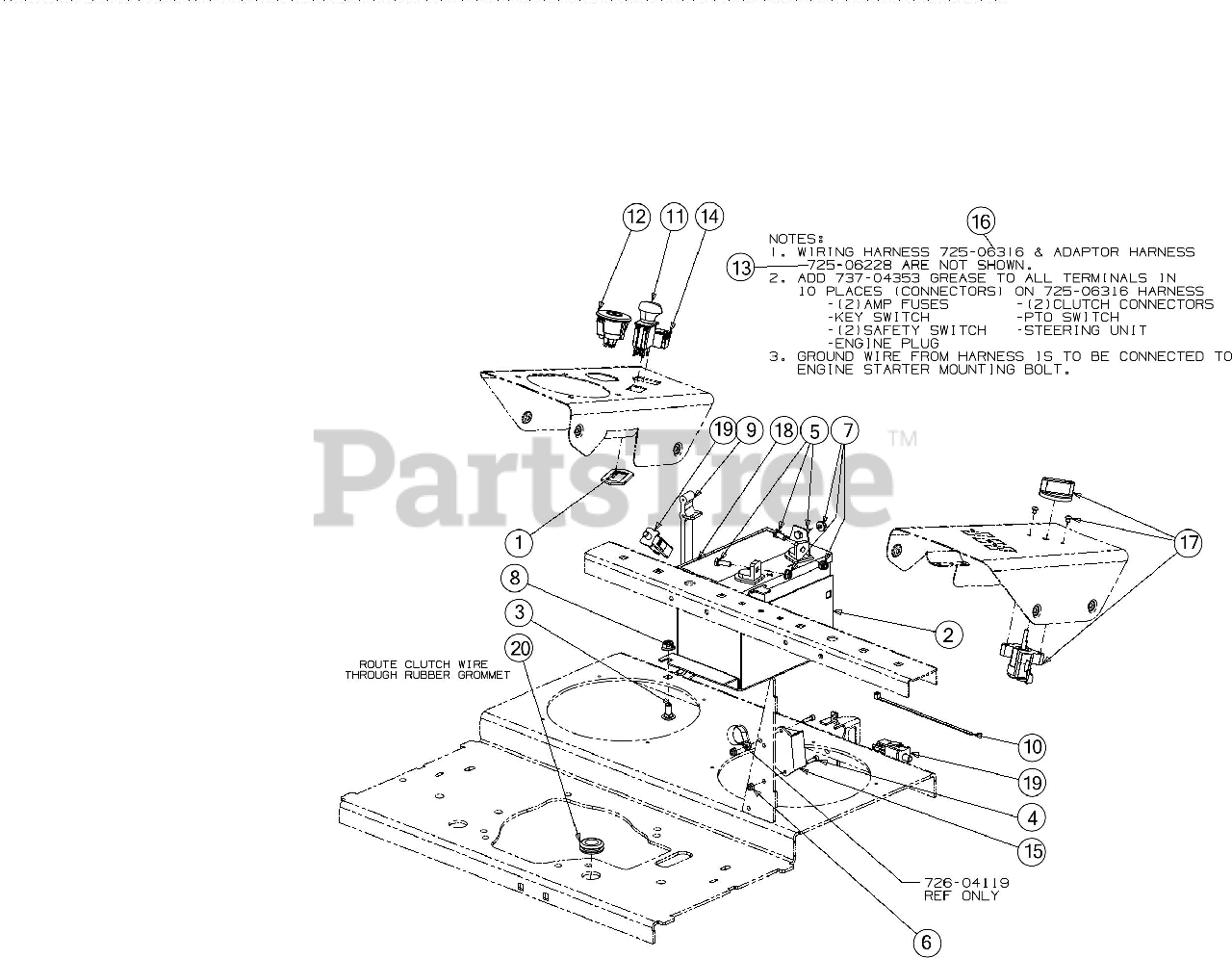

Electrical Parts Diagram

  • Title

1

Cub Cadet 01009905

BRACKET-PTO SWITCH

$27.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-07855-0637

BATTERY BRACKET

$47.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-0389

CARRIAGE BOLT 3/8-16 x .750 GR5

$4.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-04868

SCREW 10-24 x .750

$3.49

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-3015

SCREW 1/4-20X.75 GR5

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 712-0161

HEX NUT

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 723-3064

BATTERY RETAINER STRAP

$29.99

$

In Stock, only 4 left!

0

10

Cub Cadet 725-0157

7" CABLE TIE

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 925-04174

ELECTRIC PTO SWITCH
(Superseded to 925-04174A)

$70.99

$

In Stock, only 2 left!

0

12

Cub Cadet 925-04228

KEY SWITCH 3 POSITION

$39.99

$

In Stock, Qty 20+

0

13

Cub Cadet 725-06228

HARNESS

$168.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 725-06307

HOUR METER

$148.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 725-06308

CONTROL PANEL

$308.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 725-06316

MAIN WIRING HARNESS

$315.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 729-0223

ELECTRICAL CONNECTOR

Note: (Not Shown)

$2.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 725-06333

THROTTLE SWITCH

$441.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 720-05103

THROTTLE KNOB

Note: (Not Shown)

$31.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 925-1707D

BATTERY

$

$

Not available

19

Cub Cadet 925-3164A

PLUNGER SWITCH

$40.99

$

In Stock, Qty 20+

0

20

Cub Cadet 735-04285

RUBBER GROMMET

$3.99

$

Usually ships in 3-6 days

0
