SZ-60 KH EFI (53RE2PUD050) - Cub Cadet 60" Tank Zero-Turn Mower, Kohler EFI (2015) Steering Column Parts Diagram

60" Tank Zero-Turn Mower, Kohler EFI

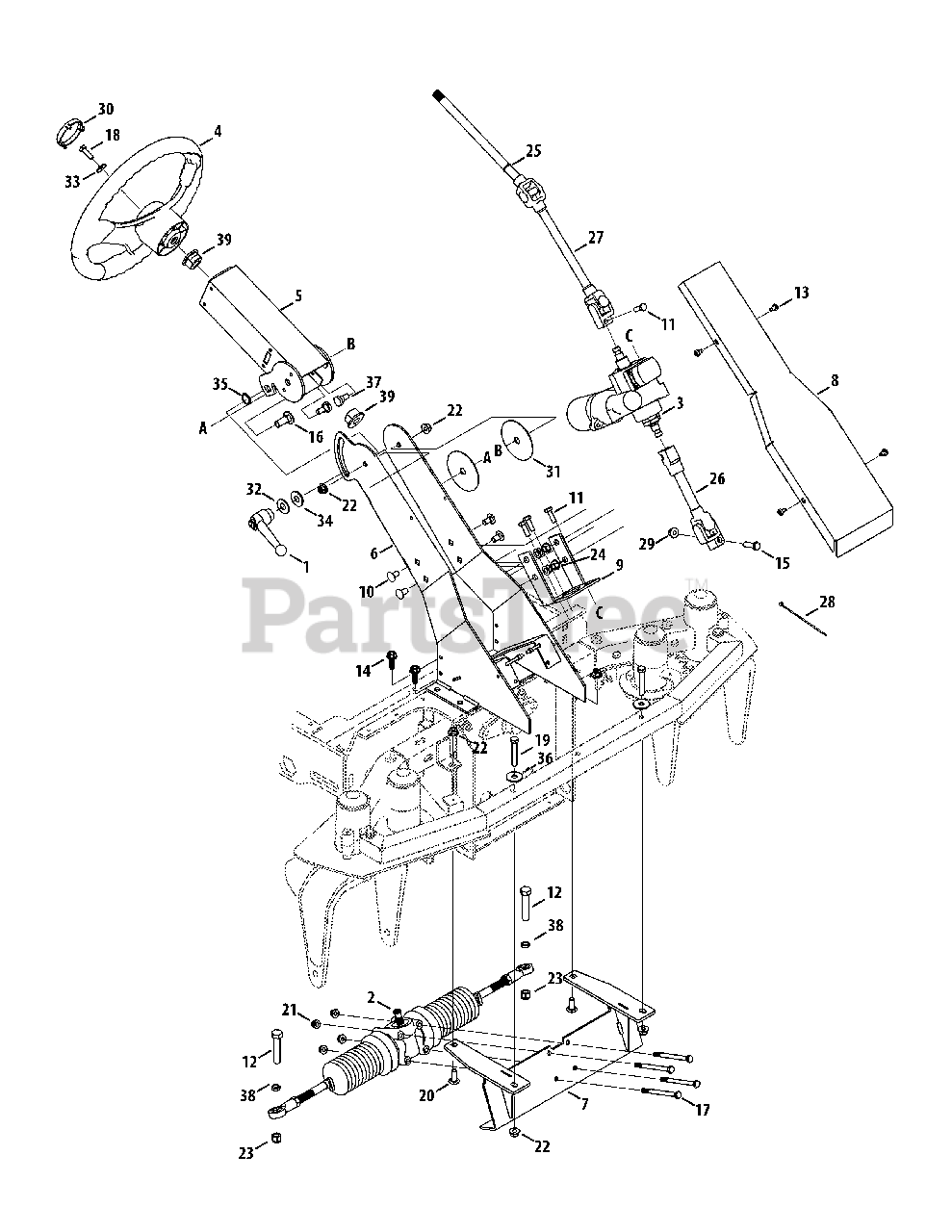

Steering Column Parts Diagram

  • Title

1

Cub Cadet 02005058

Steering Column Adjustment Lever

$72.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 917-04088

Steering Gearbox
(Superseded to 759-05642B)

$1086.99

$

In Stock, only 1 left!

0

3

Cub Cadet 918-04994

Power Steering Arm
(Superseded to 759-05682)

$2457.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 925-06705

Module, EPS Control
(Superseded to 759-05682)

$2457.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 631-04556A

Steering Wheel

$95.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 680-00195-0637

Upper Column
(Superseded to 680-00195)

$126.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 680-00203-0637

Base Column
(Superseded to 680-00203A-0637)

$168.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 680-00207-0637

Steering Rack Mount

$98.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-08320-0637

Front Column Cover

$59.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-08626-0637

Power Steering Mount
(Superseded to 703E08626A)

$67.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-0389

Carriage Bolt, 3/8-16 x .750

$4.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-04629

Hex Cap Screw, M8-1.25 x 25.0

$3.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 710-06059

Hex Cap Screw, 1/2-20 x 2.25

$6.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-05070A

Screw, 1/4-20 x .500

$6.99

$

In Stock, Qty 7

0

14

Cub Cadet 710-04683C

Screw, 3/8-16 x 1.00

$6.49

$

In Stock, only 4 left!

0

15

Cub Cadet 710-06021

Hex Cap Screw, 3/8-16 x 1.50

$3.99

$

In Stock, Qty 13

0

16

Cub Cadet 710-05375

Carriage Bolt, 1/2-13 x 1.25

$6.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 710-05410

Hex Cap Screw, 5/16-18 x 4.00

$3.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 710-0643

Hex Cap Screw, 5/16-18 x 1.00

$6.99

$

In Stock, Qty 5

0

19

Cub Cadet 710-0859

Hex Cap Screw, 3/8-16 x 2.50

$6.99

$

In Stock, Qty 17

0

20

Cub Cadet 710-3168

Carriage Bolt, 3/8-16 x 1.00

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 712-04063

Nut, 5/16-18, Flangelock

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 712-04065

Nut, 3/8-16, Flnagelock

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 712-05022

Nut, 1/2-20, Hexlock

$3.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 912-0431

Nut, 3/8-16, Flangelock

$4.99

$

In Stock, Qty 20+

0

25

Cub Cadet 916-0171

Retainer Ring, .625

$5.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 917-04872

Steering Shaft, Bottom
(Superseded to 759-05642B)

$1086.99

$

In Stock, only 1 left!

0

27

Cub Cadet 917-04905

Steering Shaft, Top

$228.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

29

Cub Cadet 712-0130

Nut, Hex Lock, 3/8-16

$3.99

$

In Stock, Qty 11

0

30

Cub Cadet 731-04039

Cap, No Sprig

$8.49

$

Usually ships in 3-6 days

0

31

Cub Cadet 731-08236

Column Wear Plate

$17.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 936-0179

Washer, .531 x 1.25 x .100
(Superseded to 736-0179)

$4.99

$

In Stock, only 2 left!

0

33

Cub Cadet 736-0242

Bevel Washer, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet 736-04602

Washer, .640 x 1.25 x .050

$3.99

$

In Stock, Qty 20+

0

35

Cub Cadet 936-0760

Lock Washer, 17 x 23.8 x 1.95

$4.49

$

In Stock, Qty 13

0

36

Cub Cadet 736-3052

Washer, .406 x 1.00 x .105

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 738-0143

Shoulder Bolt, .496 x .336, 3/8-16

$4.49

$

In Stock, Qty 20+

0

38

Cub Cadet 750-04719

Spacer, .515 x .75 x .220

$4.49

$

Usually ships in 3-6 days

0

39

Cub Cadet 948-0209

Flange Bearing, .63 x 1.15

$22.99

$

Usually ships in 3-6 days

0
